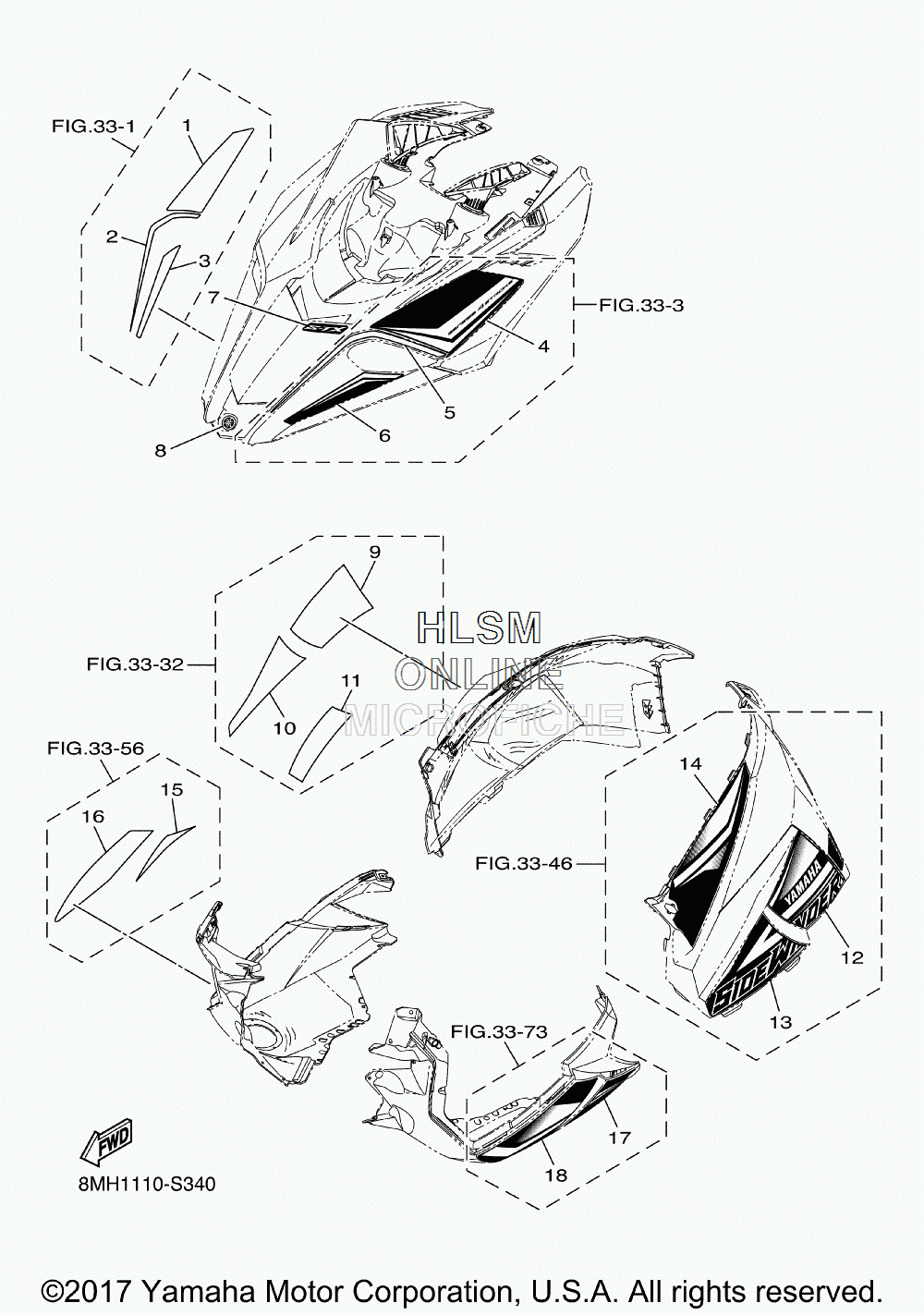

DECALS для Yamaha SIDEWINDER S TX 137 DX - 2017 года выпуска
-
№АртикулНазвание
-
18MH-K711M-00-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
28MH-K711Y-00-00 GRAPHIC, SHROUD 6GRAPHIC, SHROUD 6
-
38MH-K711P-00-00 GRAPHIC, SHROUD 4GRAPHIC, SHROUD 4
-
48MH-K711L-00-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
58MH-K711X-00-00 GRAPHIC, SHROUD 5GRAPHIC, SHROUD 5
-
68MH-K711N-00-00 GRAPHIC, SHROUD 3GRAPHIC, SHROUD 3
-
78MH-K711R-00-00 GRAPHIC, SHROUD CENTERGRAPHIC, SHROUD CENTER
-
85KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
98MH-K711F-00-00 GRAPHIC 6GRAPHIC 6
-
108MH-K711D-00-00 GRAPHIC 4GRAPHIC 4
-
118MH-K711W-00-00 GRAPHIC 11GRAPHIC 11
-
128MH-K711E-00-00 GRAPHIC 5GRAPHIC 5
-
138MH-K711C-00-00 GRAPHIC 3GRAPHIC 3
-
148MH-K711A-00-00 GRAPHIC 1GRAPHIC 1
-
158MH-K711V-00-00 GRAPHIC 10GRAPHIC 10
-
168MH-K711H-00-00 GRAPHIC 8GRAPHIC 8
-
178MH-K711U-00-00 GRAPHIC 9GRAPHIC 9
-
188MH-K711G-00-00 GRAPHIC 7GRAPHIC 7
