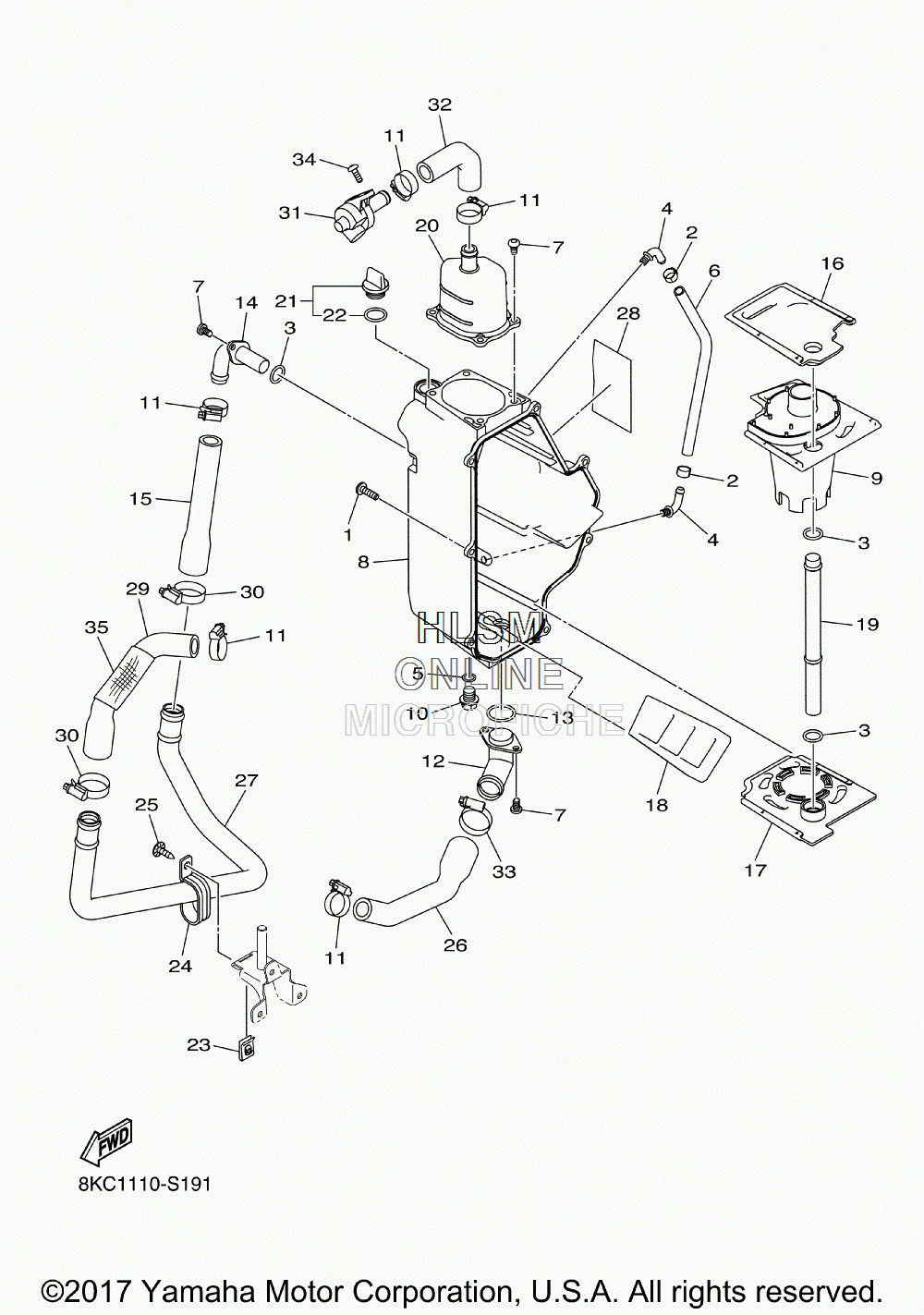

OIL TANK ASSY для Yamaha SIDEWINDER X TX 137 LE - 2017 года выпуска
-
№АртикулНазвание
-
18JP-RA283-00-00 SCREW, TAPPING M6X2.0X24SCREW, TAPPING M6X2.0X24
-
28JM-RAC02-00-00 CLIP, 3CLIP, 3
-
38JP-RAF11-00-00 O-RING, 5/8O-RING, 5/8
-
48KC-E3758-00-00 PIPE, JOINTPIPE, JOINT
-
58JP-RAF05-00-00 O-RING, 3O-RING, 3
-
68KC-E316G-00-00 HOSE, OIL 2HOSE, OIL 2
-
78JP-RA282-00-00 SCREW, TAPPING M6X2.0X12SCREW, TAPPING M6X2.0X12
-
88KC-F1751-00-00 TANK, OILTANK, OIL
-
98KC-E1164-00-00 SEPERATOR, OILSEPERATOR, OIL
-
108JP-F15A1-00-00 PLUG, DRAINPLUG, DRAIN
-
118KC-RAB00-00-00 CLAMP, 1CLAMP, 1
-
128JP-F1817-00-00 PIPE 2PIPE 2
-
138JP-RAF07-00-00 O-RING, 5O-RING, 5
-
148KC-E3416-00-00 PIPE, OIL 1PIPE, OIL 1
-
158KC-E1378-00-00 HOSE 2HOSE 2
-
168KC-E3317-00-00 PLATE, BAFFLEPLATE, BAFFLE
-
178KC-E3337-00-00 PLATE, BAFFLE LOWERPLATE, BAFFLE LOWER
-
188KC-F4167-00-00 STRAINERSTRAINER
-
198KC-F1766-00-00 PIPE, OILPIPE, OIL
-
208KC-F1744-00-00 BREATHERBREATHER
-
218KC-E5363-00-00 PLUG, OILPLUG, OIL
-
228KC-RAF00-00-00 ...O-RING, 1...O-RING, 1
-
238JP-RA352-00-00 .NUT, CLIP 10.NUT, CLIP 10
-
248KC-RAB01-00-00 CLAMP, 2CLAMP, 2
-
258KC-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
-
268KC-E316F-00-00 HOSE, OIL 1HOSE, OIL 1
-
278KC-E3418-00-00 PIPE, OIL 2PIPE, OIL 2
-
288KC-F178B-00-00 OIL, LABELOIL, LABEL
-
298KC-E1377-00-00 HOSEHOSE
-
308JP-RAB24-00-00 CLAMP, 22CLAMP, 22
-
318KJ-13520-00-00 VALVE ASSY.VALVE ASSY.
-
328KC-E531A-00-00 HOSE, BREATHER 1HOSE, BREATHER 1
-
338JP-RAB29-00-00 CLAMP, 26CLAMP, 26
-
348KC-RA229-00-00 SCREWSCREW
-
358LR-F1824-00-00 PROTECTOR, HOSEPROTECTOR, HOSE
