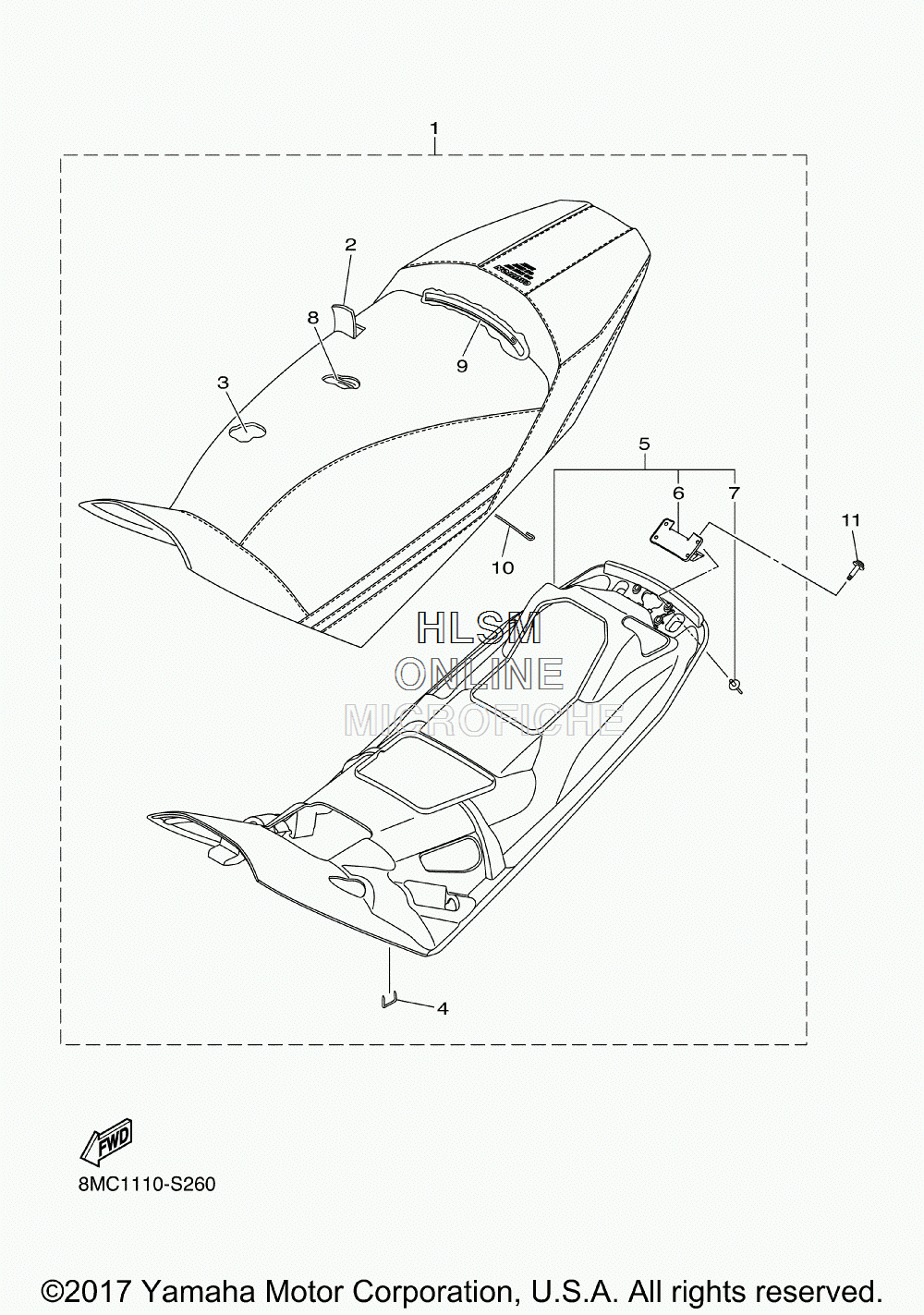

SEAT ASSY для Yamaha SIDEWINDER X TX 137 LE - 2017 года выпуска
-
№АртикулНазвание
-
18JP-F4710-A0-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
28JP-F470F-A0-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
38JP-F4713-00-00 ...CUSHION...CUSHION
-
48JM-F473U-00-00 ...STAPLE...STAPLE
-
58KC-F470E-00-00 ...BOTTOM PLATE COMP....BOTTOM PLATE COMP.
-
68JP-F475H-00-00 ......BRACKET, SEAT LEVER 1......BRACKET, SEAT LEVER 1
-
78JP-RA523-00-00 ......RIVET, 14......RIVET, 14
-
88JP-H2951-00-00 ...HEATER, SEAT 1...HEATER, SEAT 1
-
98JP-F473J-00-00 ...WIRE...WIRE
-
108JP-F1664-00-00 ...WIRE, 2...WIRE, 2
-
118JP-RA270-00-00 SCREW, M6X18SCREW, M6X18
