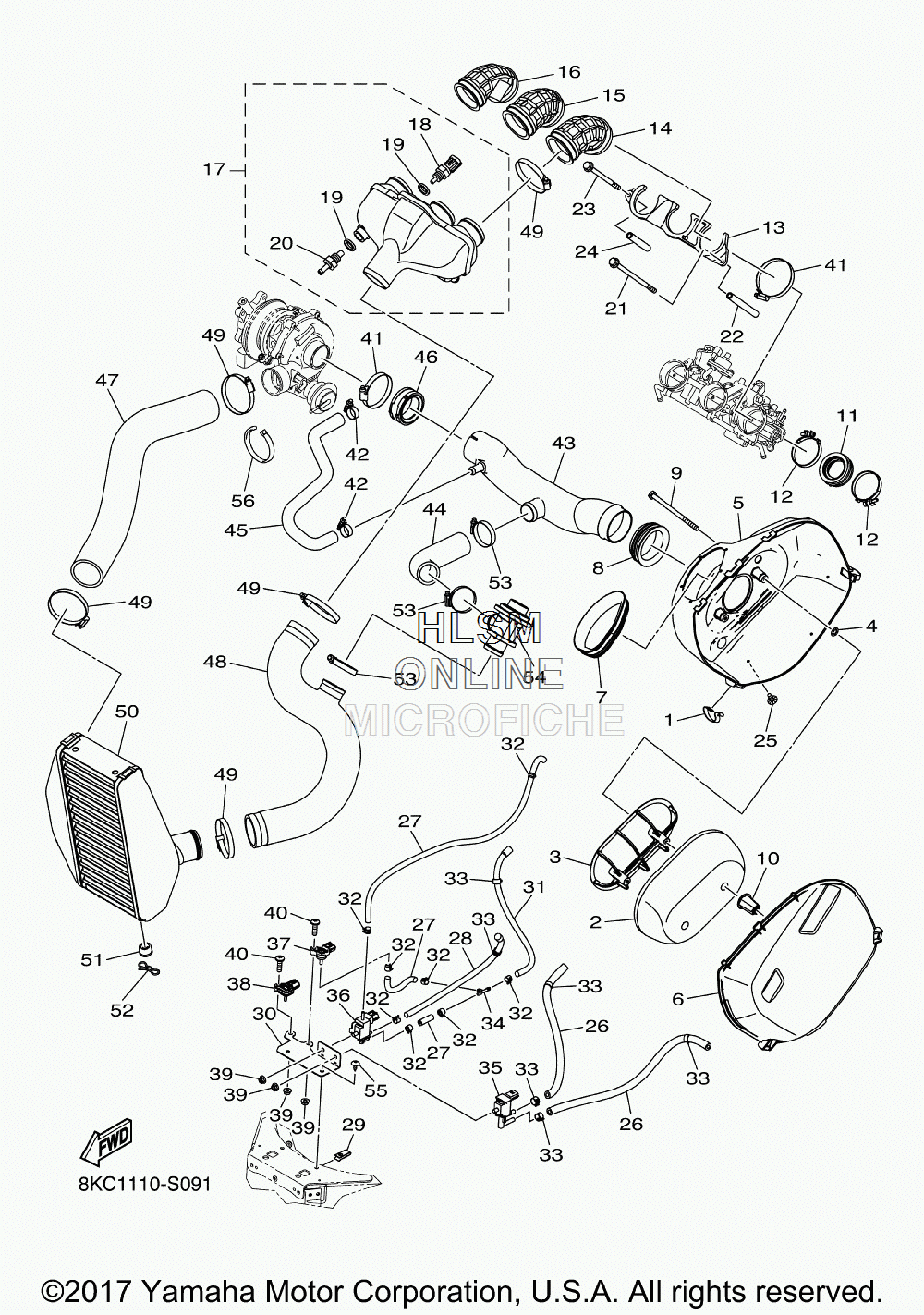

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha SIDEWINDER X TX 141 SE - 2017 года выпуска
-
№АртикулНазвание
-
18KC-E4436-00-00 HOOKHOOK
-
28KC-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
38KC-E4458-00-00 GUIDEGUIDE
-
48JP-RA347-00-00 NUT, 1/4NUT, 1/4
-
58KC-E4431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
68KC-E4441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
78KC-E6815-00-00 BOOTBOOT
-
88KC-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
98JP-RA1B0-00-00 BOLT, HEX. M6X1X100BOLT, HEX. M6X1X100
-
108KC-E4164-00-00 NUT, HOLDINGNUT, HOLDING
-
118GL-13595-00-00 JOINTJOINT
-
1290450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
138KJ-14291-00-00 BRACKET 1BRACKET 1
-
148KJ-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
158KJ-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
168KJ-14454-00-00 JOINTJOINT
-
178KJ-13630-00-00 INTAKE MANIFOLD ASSY.INTAKE MANIFOLD ASSY.
-
1865L-85886-00-00 ...THERMOSENSOR...THERMOSENSOR
-
196S5-14285-00-00 ...WASHER...WASHER
-
208KJ-14251-00-00 ...NIPPLE...NIPPLE
-
218KC-RA1A2-00-00 BOLT, FLANGEBOLT, FLANGE
-
228KC-RA712-00-00 COLLARCOLLAR
-
238KC-RA1B4-00-00 BOLT, FLANGEBOLT, FLANGE
-
248KC-RA713-00-00 COLLAR, 1COLLAR, 1
-
258JP-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
-
268JM-RA902-10-00 HOSE, 13 (25 FEET)HOSE, 13 (25 FEET)
-
278KC-RA905-00-00 HOSE, 1 (25 FEET)HOSE, 1 (25 FEET)
-
288KC-RA906-00-00 HOSE, 2HOSE, 2
-
298JP-RA351-00-00 NUT, CLIP 10NUT, CLIP 10
-
308KC-H3614-00-00 BRACKETBRACKET
-
318KC-RA907-00-00 HOSE, 3HOSE, 3
-
328KC-RAB02-00-00 CLAMP, 3CLAMP, 3
-
338JP-RAB20-00-00 CLAMP, 18CLAMP, 18
-
348KC-E4485-00-00 PIPE, JOINTPIPE, JOINT
-
358KJ-86120-00-00 SOLENOID VALVE ASSYSOLENOID VALVE ASSY
-
368KJ-86130-00-00 SOLENOID VALVE ASSY 2SOLENOID VALVE ASSY 2
-
376BH-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
381WS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
398KC-RA309-00-00 NUTNUT
-
408JP-RA258-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
418JP-RAB06-00-00 CLAMP, 4CLAMP, 4
-
428JP-F1823-00-00 CLAMP, HOSECLAMP, HOSE
-
438KC-E4437-00-00 DUCTDUCT
-
448KC-E3547-00-00 HOSE 3HOSE 3
-
458KC-E532A-00-00 HOSE, BREATHER 2HOSE, BREATHER 2
-
468KC-E547B-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
478KC-E3545-00-00 HOSE 1HOSE 1
-
488KC-E3546-00-00 HOSE 2HOSE 2
-
498KC-RAB03-00-00 CLAMP, 1CLAMP, 1
-
508KC-E3670-00-00 AIR COOLER ASSY.AIR COOLER ASSY.
-
518KC-E4435-00-00 GROMMETGROMMET
-
528KC-RAK01-00-00 PIN, 1PIN, 1
-
538KC-RAB04-00-00 CLAMP, 2CLAMP, 2
-
548KJ-13680-00-00 AIR BY-PASS VALVE ASSY.AIR BY-PASS VALVE ASSY.
-
558KC-RA290-00-00 SCREWSCREW
-
568JM-RAB01-00-00 CLAMP, 2 (8 INCH) (OPT)CLAMP, 2 (8 INCH) (OPT)
-
568JP-RAB04-00-00 CLAMP, 2 (11.5 INCH) (OPT)CLAMP, 2 (11.5 INCH) (OPT)
