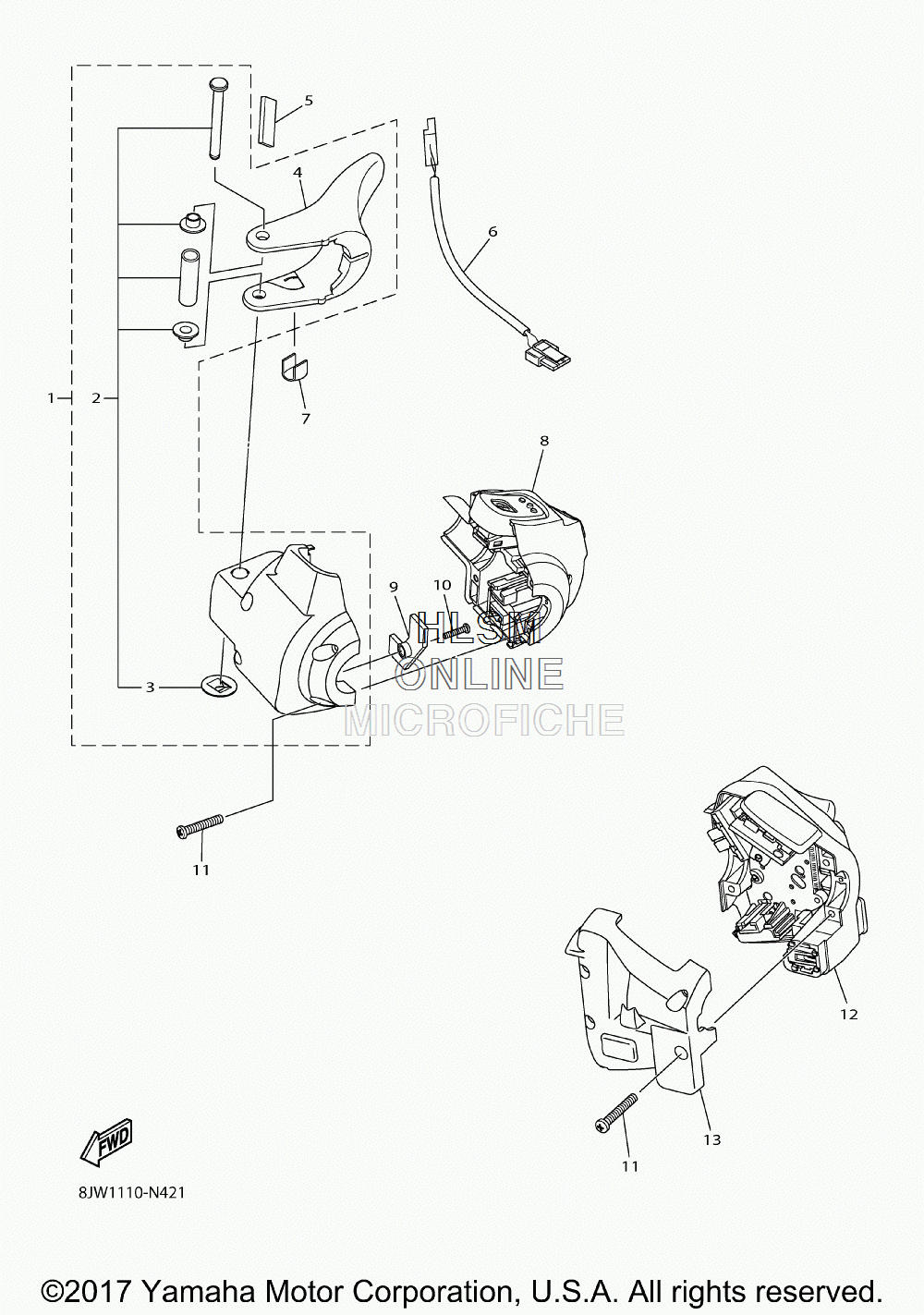

HANDLEBAR - SWITCHES AND LEVERS для Yamaha SRVIPER L TX SE - 2017 года выпуска
-
№АртикулНазвание
-
18JP-H2720-00-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
28JP-H2620-00-00 ...LEVER HOLDER ASSY (RIGHT)...LEVER HOLDER ASSY (RIGHT)
-
38JP-RA346-00-00 ......NUT, 0.125......NUT, 0.125
-
48JP-G2138-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
58JP-H233W-00-00 INSU.INSU.
-
68JP-H2970-00-00 THUMB WARMER ASSYTHUMB WARMER ASSY
-
78JP-RAC10-00-00 CLIP, 1CLIP, 1
-
88JP-H2710-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
98JP-RAC11-00-00 CLIP, 2CLIP, 2
-
108JP-RA285-00-00 SCREW, 4-24X0.50SCREW, 4-24X0.50
-
118JP-RA286-00-00 SCREW, 8-18X0.875SCREW, 8-18X0.875
-
128JP-H3972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
138JP-H3973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
