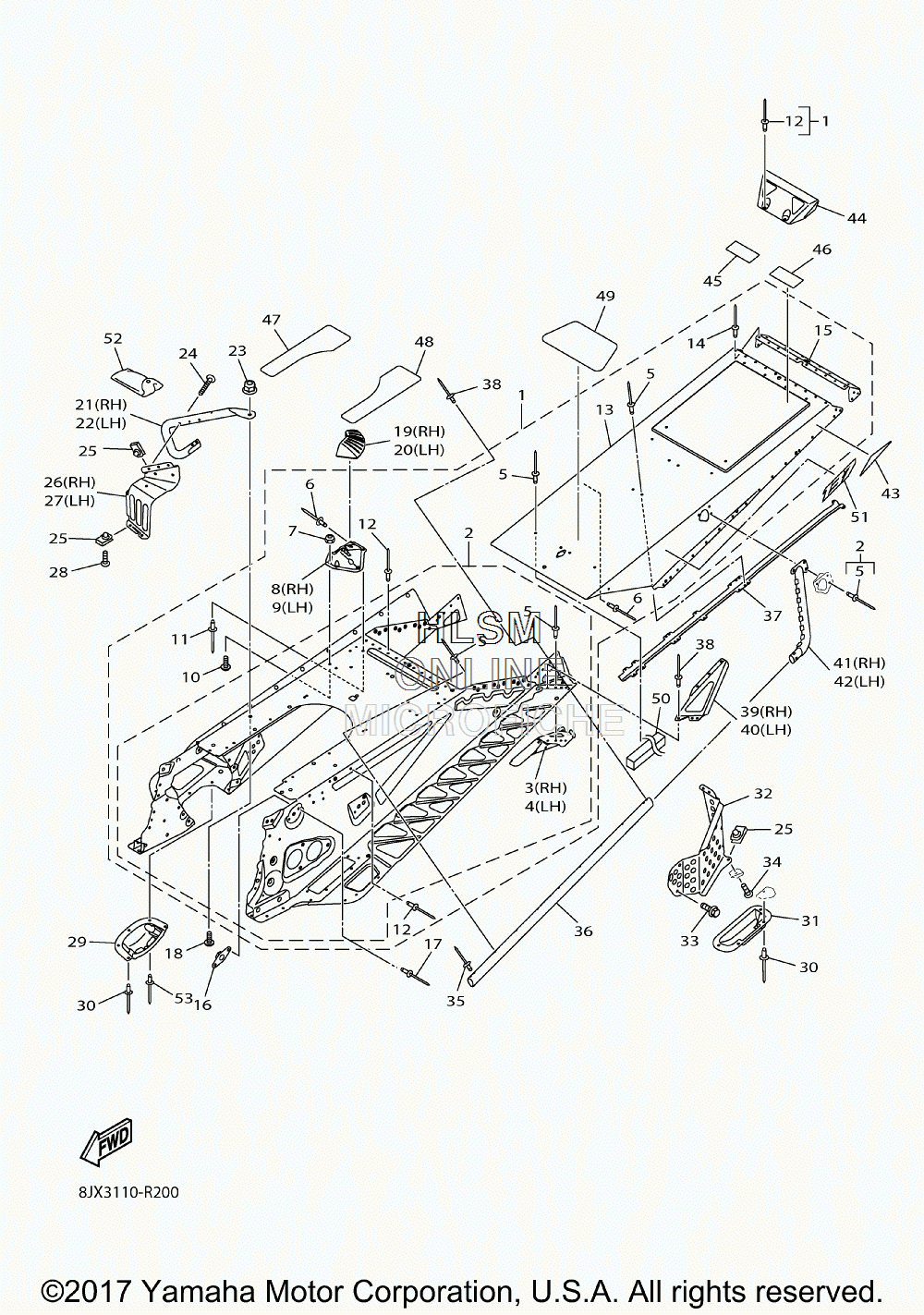

TUNNEL EXTENSION ASSEMBLY для Yamaha SRVIPER L TX SE - 2017 года выпуска
-
№АртикулНазвание
-
18JY-F1950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
28JY-F1911-00-00 ...PANEL, FRAME...PANEL, FRAME
-
38JY-F1954-00-00 ......BRACKET, REAR TRACK SUSPENSION......BRACKET, REAR TRACK SUSPENSION
-
48JY-F1944-00-00 ......BRACKET, REAR TRACK SUSPENSION......BRACKET, REAR TRACK SUSPENSION
-
58JP-RA520-00-00 ......RIVET, 11......RIVET, 11
-
68JP-RA532-00-00 ...RIVET, 20...RIVET, 20
-
78JP-RA370-00-00 ...NUT, HEX. LOCKING...NUT, HEX. LOCKING
-
88JW-F115M-00-00 ...BRACKET, MEMBER 2...BRACKET, MEMBER 2
-
98JW-F115L-00-00 ...BRACKET, MEMBER 1...BRACKET, MEMBER 1
-
108JP-RA239-00-00 ...SCREW, 5...SCREW, 5
-
118JP-RA528-00-00 ...RIVET, 3/16...RIVET, 3/16
-
128JP-RA529-00-00 ...RIVET, 17...RIVET, 17
-
138JR-F1912-00-00 ...PANEL, SUB FRAME 1...PANEL, SUB FRAME 1
-
148JP-RA530-00-00 ...RIVET, 18...RIVET, 18
-
158JW-F1923-00-00 ...REINFORCEMENT, FRAME REAR 1...REINFORCEMENT, FRAME REAR 1
-
168JP-F1919-00-00 BRACKETBRACKET
-
178JP-RA521-00-00 RIVET, 12RIVET, 12
-
188JP-RA272-00-00 SCREW, M8X1.25X20SCREW, M8X1.25X20
-
198JP-F2556-00-00 SUPPORT, FUEL TANK 2SUPPORT, FUEL TANK 2
-
208JP-F2555-00-00 SUPPORT, FUEL TANK 1SUPPORT, FUEL TANK 1
-
218JP-F192E-00-00 REINFORCEMENT, FRAMEREINFORCEMENT, FRAME
-
228JP-F1929-00-00 REINFORCEMENT, FRAME SIDEREINFORCEMENT, FRAME SIDE
-
238JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
248JP-RA247-00-00 SCREW, M5X0.8X35SCREW, M5X0.8X35
-
258JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
268JW-F1996-00-00 REINFORCEMENT SUB FRAME FRONT 2REINFORCEMENT SUB FRAME FRONT 2
-
278JW-F1995-00-00 REINFORCEMENT SUB FRAME FRONT 1REINFORCEMENT SUB FRAME FRONT 1
-
288JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
298JP-F2147-00-00 PROTECTOR, CHAINPROTECTOR, CHAIN
-
308JP-RA523-00-00 RIVET, 14RIVET, 14
-
318JP-F5717-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
328JW-F5718-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
338JP-RA179-00-00 BOLT, FLANGE M6X1.0X12BOLT, FLANGE M6X1.0X12
-
348JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
358JP-RA526-00-00 RIVET, 3/16RIVET, 3/16
-
368JW-F1926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
378JR-H2589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
388JP-RA527-00-00 RIVET, 3/16RIVET, 3/16
-
398JW-F1135-00-00 GUSSETGUSSET
-
408JW-F1134-00-00 GUSSETGUSSET
-
418JW-F1137-00-00 GUSSETGUSSET
-
428JW-F1136-00-00 GUSSETGUSSET
-
438JP-F151A-00-00 LABEL 1LABEL 1
-
448JW-F117E-10-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
458JP-K7762-70-00 LABEL, WARNING 2 (ENGLISH)LABEL, WARNING 2 (ENGLISH)
-
468JP-K7762-S0-00 LABEL, WARNING 2 (FRENCH)LABEL, WARNING 2 (FRENCH)
-
478JP-F197C-00-00 PROTECTOR, FRAME 3PROTECTOR, FRAME 3
-
488JP-F197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
498JP-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
508JR-F1978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
518JY-RAP0J-10-00 DECAL, FRAME 17 (DPBSE - PURPLISH BLUE)DECAL, FRAME 17 (DPBSE - PURPLISH BLUE)
-
518JY-RAP0J-20-00 DECAL, FRAME 17 (VRC1 - VIVID RED)DECAL, FRAME 17 (VRC1 - VIVID RED)
-
528JP-F8100-00-00 TOOL KITTOOL KIT
-
538JP-RA524-00-00 RIVET, 15RIVET, 15
