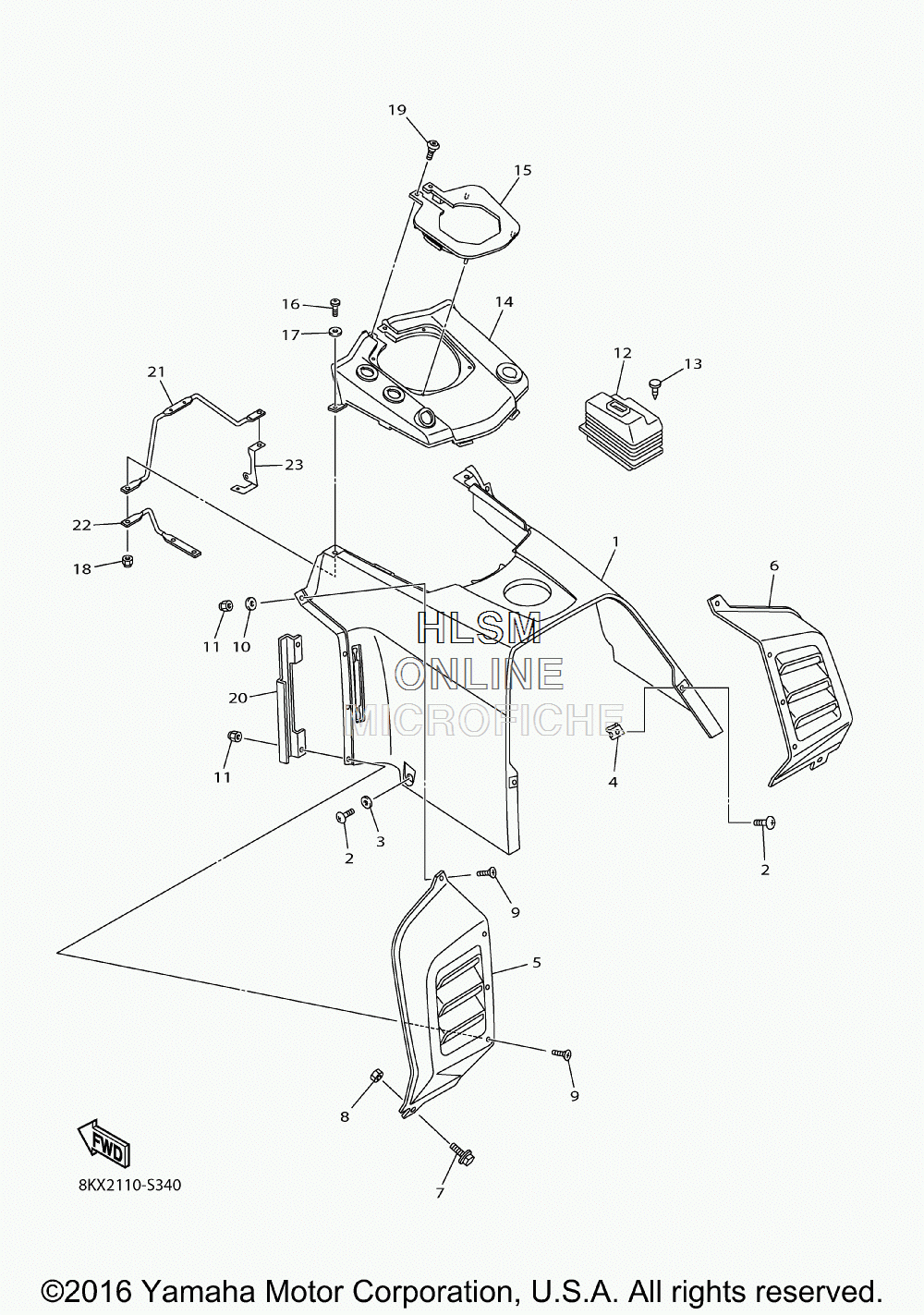

CONSOLE ASSY для Yamaha VK540 - 2017 года выпуска
-
№АртикулНазвание
-
18KX-77711-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
298907-06016-00 SCREW, BINDSCREW, BIND
-
390387-060U0-00 COLLARCOLLAR
-
490183-06100-00 NUT, SPRINGNUT, SPRING
-
583R-77131-01-00 LOUVER 1LOUVER 1
-
683R-77132-01-00 LOUVER 2LOUVER 2
-
795802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
895702-06300-00 NUT, NYLONNUT, NYLON
-
998707-04016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1090201-047A2-00 WASHER, PLATEWASHER, PLATE
-
1195702-04300-00 NUT, NYLONNUT, NYLON
-
1283R-77731-00-00 SHIELD 1SHIELD 1
-
1390269-05055-00 RIVETRIVET
-
148KX-77712-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
158KX-77740-00-00 GROMMET, INSTRUMENT PANELGROMMET, INSTRUMENT PANEL
-
1698907-05020-00 SCREW, BINDSCREW, BIND
-
1790201-054K4-00 WASHER, PLATEWASHER, PLATE
-
1895707-05300-00 NUT, FLANGENUT, FLANGE
-
1990109-05012-00 BOLTBOLT
-
208KX-2419A-00-00 HOLDERHOLDER
-
218KX-77721-00-00 BRACKET 1BRACKET 1
-
228KX-77722-00-00 BRACKET 2BRACKET 2
-
238KX-77723-00-00 BRACKET 3BRACKET 3
