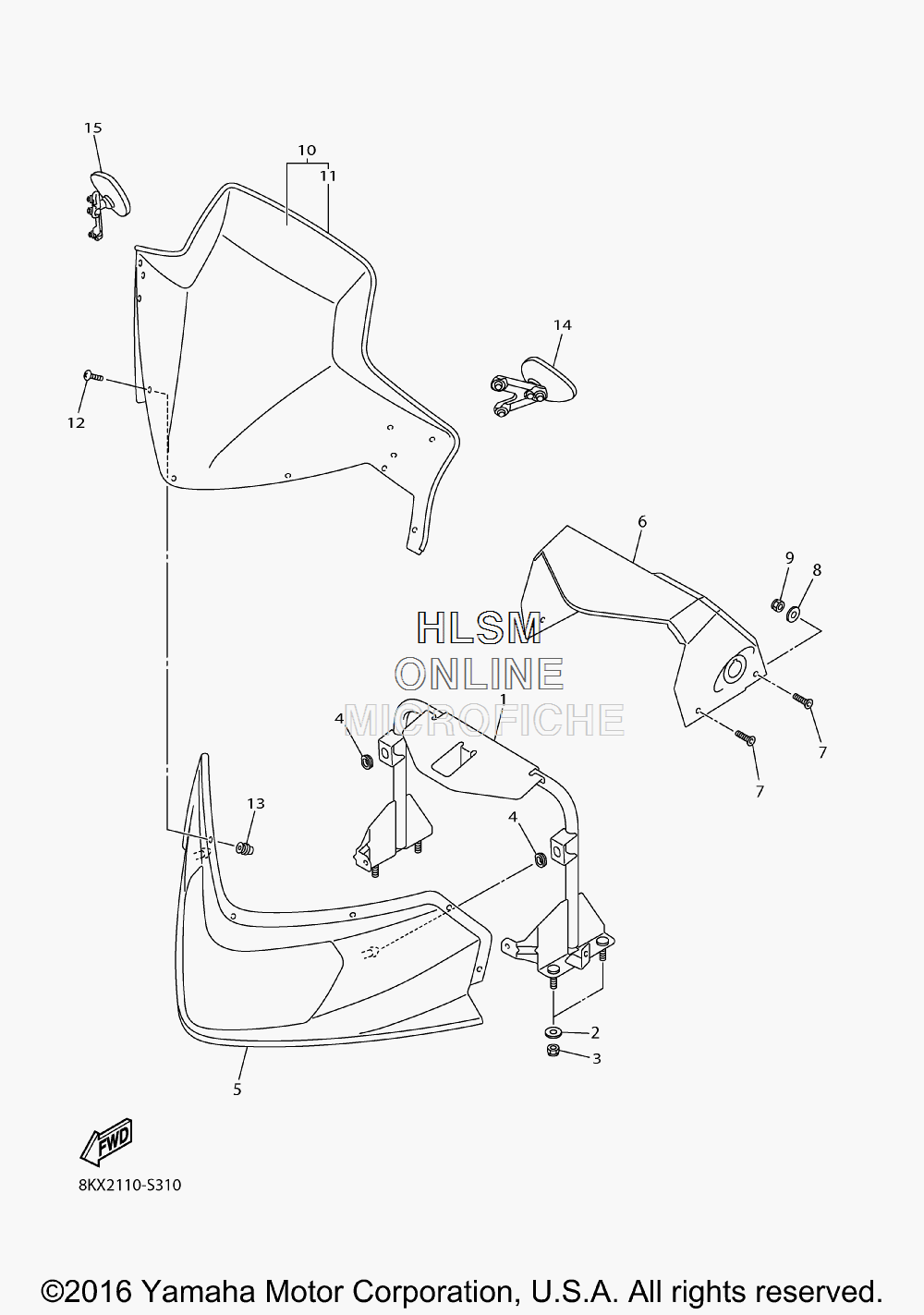

HOOD - WINDSHIELD ASSY для Yamaha VK540 - 2017 года выпуска
-
№АртикулНазвание
-
18KX-77241-00-00 STAY, FAIRINGSTAY, FAIRING
-
290201-06078-00 WASHER, PLATEWASHER, PLATE
-
395702-06300-00 NUT, NYLONNUT, NYLON
-
490480-01558-00 GROMMETGROMMET
-
58KX-77231-00-P0 FAIRING (SMX - BLACK METALLIC)FAIRING (SMX - BLACK METALLIC)
-
58KX-77231-00-P2 FAIRING (VOM2 - VIVID ORANGE)FAIRING (VOM2 - VIVID ORANGE)
-
58KX-77231-00-P1 FAIRING (BWP1 - BLUISH WHITE)FAIRING (BWP1 - BLUISH WHITE)
-
68KX-77251-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
798707-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
890201-05029-00 WASHER, PLATEWASHER, PLATE
-
995702-05300-00 NUT, NYLONNUT, NYLON
-
108KX-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
118KX-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
1290150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
1390179-05523-00 NUTNUT
-
148KW-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
158KW-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
