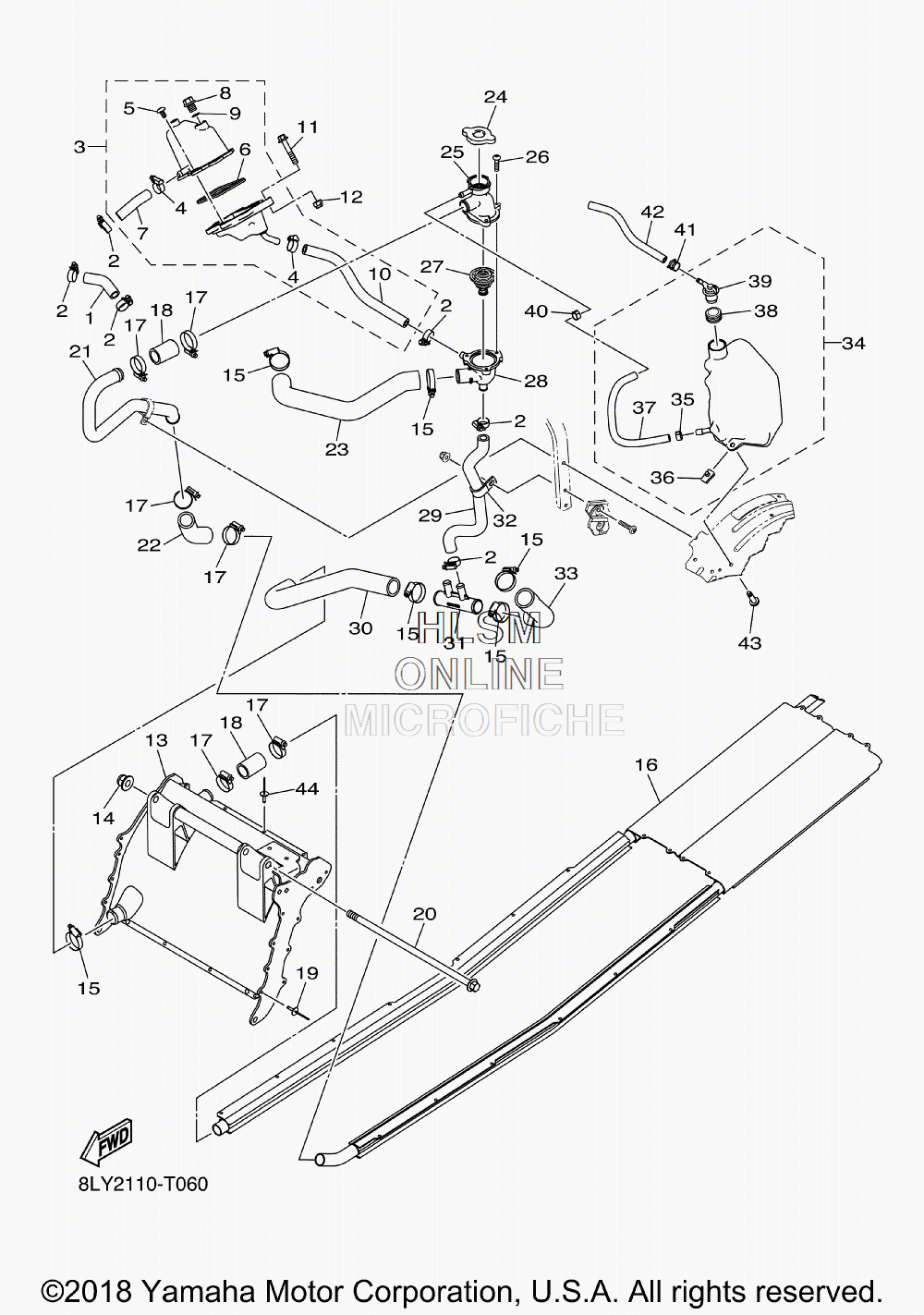

COOLING SYSTEM для Yamaha SIDEWINDER L TX LE - 2018 года выпуска
-
№АртикулНазвание
-
18JP-E243E-00-00 HOSE 2HOSE 2
-
28JP-F1823-00-00 CLAMP, HOSECLAMP, HOSE
-
38KC-E2490-00-00 TANK ASSYTANK ASSY
-
48JP-F1823-00-00 ...CLAMP, HOSE...CLAMP, HOSE
-
58KC-RA295-00-00 ...SCREW, 6...SCREW, 6
-
68KC-E2877-00-00 ...SEAL...SEAL
-
78KC-E243E-00-00 ...HOSE 2...HOSE 2
-
88JP-F15A1-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
98JP-RAF05-00-00 ...O-RING, 3...O-RING, 3
-
108KC-E243F-00-00 ...HOSE, 3...HOSE, 3
-
118KN-RA183-00-00 BOLT, FLANGE M6X1.0X30BOLT, FLANGE M6X1.0X30
-
128JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
138MG-E2440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
148JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
158JP-RAB29-00-00 CLAMP, 26CLAMP, 26
-
168MH-E240E-00-00 HEAT EXCHANGERHEAT EXCHANGER
-
178JP-RAB24-00-00 CLAMP, 22CLAMP, 22
-
188KC-E244G-00-00 HOSE, 4HOSE, 4
-
198JP-RA521-00-00 RIVET, 12RIVET, 12
-
208KC-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
218KC-E2481-00-00 PIPE 1PIPE 1
-
228MG-E244H-00-00 HOSE 5HOSE 5
-
238KC-E243A-00-00 HOSE 1HOSE 1
-
248JP-E2462-00-00 CAP, RADIATORCAP, RADIATOR
-
258KC-E2521-00-00 NECK, FILLERNECK, FILLER
-
268JP-RA244-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
278JP-E2410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
288KC-E2417-00-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
298KC-E2552-00-00 HOSE 8HOSE 8
-
308KC-E244J-00-00 HOSE 6HOSE 6
-
318KC-E2446-00-00 JOINTJOINT
-
328KC-RAB05-00-00 CLAMP, 3CLAMP, 3
-
338KC-E2551-00-00 HOSE 7HOSE 7
-
348KC-F1870-00-00 RECOVERY TANK ASSYRECOVERY TANK ASSY
-
358JM-RAC02-00-00 ...CLIP, 3...CLIP, 3
-
368JP-RA354-00-00 ...NUT, CLIP M6...NUT, CLIP M6
-
378JP-RA910-00-00 ...HOSE, 6 (25 FEET)...HOSE, 6 (25 FEET)
-
388KC-E2437-00-00 ...STOPPER...STOPPER
-
398JP-F4362-00-00 ...VALVE, CHECK 1...VALVE, CHECK 1
-
408JM-RAC02-00-00 CLIP, 3CLIP, 3
-
418KC-RAB02-00-00 CLAMP, 3CLAMP, 3
-
428JP-RA907-00-00 HOSE, 3 (50 FEET)HOSE, 3 (50 FEET)
-
438LN-K7537-00-00 BOLT 1BOLT 1
-
448JP-RA520-00-00 RIVET, 11RIVET, 11
