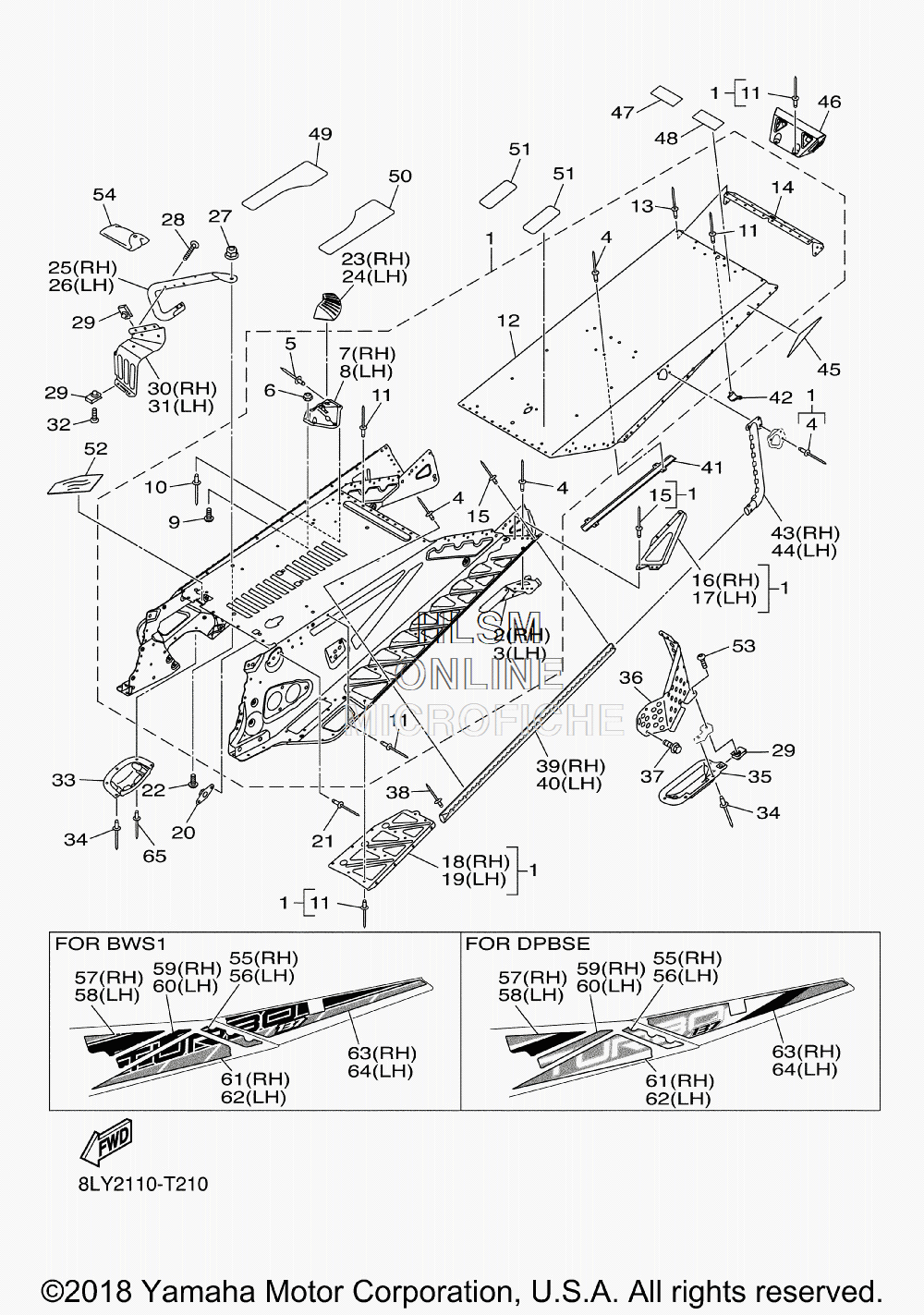

TUNNEL EXTENSION ASSEMBLY для Yamaha SIDEWINDER L TX LE - 2018 года выпуска
-
№АртикулНазвание
-
18LY-F1950-00-00 REAR FRAME COMP (DPBSE - PURPLISH BLUE)REAR FRAME COMP (DPBSE - PURPLISH BLUE)
-
28JY-F1954-00-00 ...BRACKET, REAR TRACK SUSPENSION (DPBSE - PURPLISH BLUE)...BRACKET, REAR TRACK SUSPENSION (DPBSE - PURPLISH BLUE)
-
38JY-F1944-00-00 ...BRACKET, REAR TRACK SUSPENSION (DPBSE - PURPLISH BLUE)...BRACKET, REAR TRACK SUSPENSION (DPBSE - PURPLISH BLUE)
-
48JP-RA520-00-00 ...RIVET, 11...RIVET, 11
-
58JP-RA532-00-00 ...RIVET, 20...RIVET, 20
-
68JP-RA370-00-00 ...NUT, HEX LOCKING...NUT, HEX LOCKING
-
78JW-F115M-00-00 ...BRACKET, MEMBER 2 (DPBSE - PURPLISH BLUE)...BRACKET, MEMBER 2 (DPBSE - PURPLISH BLUE)
-
88JW-F115L-00-00 ...BRACKET, MEMBER 1 (DPBSE - PURPLISH BLUE)...BRACKET, MEMBER 1 (DPBSE - PURPLISH BLUE)
-
98JP-RA239-00-00 ...SCREW, 5...SCREW, 5
-
108JP-RA528-00-00 ...RIVET, 3/16...RIVET, 3/16
-
118JP-RA529-00-00 ...RIVET, 17...RIVET, 17
-
128MH-F1912-00-00 ...PANEL, SUB FRAME 1 (DPBSE - PURPLISH BLUE)...PANEL, SUB FRAME 1 (DPBSE - PURPLISH BLUE)
-
138JP-RA514-10-00 ...RIVET, 5...RIVET, 5
-
148JW-F1923-00-00 ...REINEFORCEMENT, FRAME REAR (DPBSE - PURPLISH BLUE)...REINEFORCEMENT, FRAME REAR (DPBSE - PURPLISH BLUE)
-
158JP-RA527-00-00 ...RIVET, 3/16...RIVET, 3/16
-
168JW-F1135-00-00 ...GUSSET (DPBSE - PURPLISH BLUE)...GUSSET (DPBSE - PURPLISH BLUE)
-
178JW-F1134-00-00 ...GUSSET (DPBSE - PURPLISH BLUE)...GUSSET (DPBSE - PURPLISH BLUE)
-
188KN-F1931-00-00 ...REINFORCEMENT, FRAME FRONT (DPBSE - PURPLISH BLUE)...REINFORCEMENT, FRAME FRONT (DPBSE - PURPLISH BLUE)
-
198KN-F1921-00-00 ...REINEFORCEMENT, FRAME REAR (DPBSE - PURPLISH BLUE)...REINEFORCEMENT, FRAME REAR (DPBSE - PURPLISH BLUE)
-
208JP-F1919-00-00 BRACKETBRACKET
-
218JP-RA519-00-00 RIVET, 10RIVET, 10
-
228JP-RA272-00-00 SCREW, M8X1.25X20SCREW, M8X1.25X20
-
238JP-F2556-00-00 SUPPORT, FUEL TANK 2SUPPORT, FUEL TANK 2
-
248JP-F2555-00-00 SUPPORT, FUEL TANK 1SUPPORT, FUEL TANK 1
-
258KC-F192E-00-00 REINFORCEMENT, FRAMEREINFORCEMENT, FRAME
-
268KC-F1929-00-00 REINFORCEMENT, FRAME SIDEREINFORCEMENT, FRAME SIDE
-
278JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
288JP-RA247-00-00 SCREW, M5X0.8X35SCREW, M5X0.8X35
-
298JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
308JW-F1996-00-00 REINFORCEMENT SUB FRAME FRONT 2 (DPBSE - PURPLISH BLUE)REINFORCEMENT SUB FRAME FRONT 2 (DPBSE - PURPLISH BLUE)
-
318JW-F1995-00-00 REINFORCEMENT SUB FRAME FRONT 1 (DPBSE - PURPLISH BLUE)REINFORCEMENT SUB FRAME FRONT 1 (DPBSE - PURPLISH BLUE)
-
328JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
338JP-F2147-00-00 PROTECTOR, CHAINPROTECTOR, CHAIN
-
348JP-RA523-00-00 RIVET, 14RIVET, 14
-
358JP-F5717-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
368JW-F5718-00-00 PROTECTOR, DISC BRAKE (DPBSE - PURPLISH BLUE)PROTECTOR, DISC BRAKE (DPBSE - PURPLISH BLUE)
-
378JP-RA179-00-00 BOLT, FLANGE M6X1.0X12BOLT, FLANGE M6X1.0X12
-
388JP-RA526-00-00 RIVET, 3/16RIVET, 3/16
-
398KN-F1937-10-00 REINFORCEMENT, REAR FOOTREST 2 (DPBSE - PURPLISH BLUE)REINFORCEMENT, REAR FOOTREST 2 (DPBSE - PURPLISH BLUE)
-
408KN-F1927-10-00 REINFORCEMENT, REAR FOOTREST 1 (DPBSE - PURPLISH BLUE)REINFORCEMENT, REAR FOOTREST 1 (DPBSE - PURPLISH BLUE)
-
418MH-H2589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
428MG-H258A-00-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
438JW-F1137-00-00 GUSSET (DPBSE - PURPLISH BLUE)GUSSET (DPBSE - PURPLISH BLUE)
-
448JW-F1136-00-00 GUSSET (DPBSE - PURPLISH BLUE)GUSSET (DPBSE - PURPLISH BLUE)
-
458JP-F151A-00-00 LABEL 1LABEL 1
-
468JW-F117E-10-00 BRACKET, TAILLIGHT (DPBSE - PURPLISH BLUE)BRACKET, TAILLIGHT (DPBSE - PURPLISH BLUE)
-
478JP-K7762-70-00 LABEL, WARNING 2 (ENGLISH)LABEL, WARNING 2 (ENGLISH)
-
488JP-K7762-S0-00 LABEL, WARNING 2 (FRENCH)LABEL, WARNING 2 (FRENCH)
-
498JP-F197C-00-00 PROTECTOR, FRAME 3PROTECTOR, FRAME 3
-
508JP-F197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
518LN-F195A-00-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
528KC-K7557-10-00 PROTECTOR 7PROTECTOR 7
-
538JP-RA244-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
548JP-F8100-00-00 TOOL KITTOOL KIT
-
558LY-F199N-60-00 GRAPHIC 8 (DPBSE - PURPLISH BLUE)GRAPHIC 8 (DPBSE - PURPLISH BLUE)
-
568LY-F199M-60-00 GRAPHIC 7 (DPBSE - PURPLISH BLUE)GRAPHIC 7 (DPBSE - PURPLISH BLUE)
-
578LY-F199D-60-00 GRAPHIC 4 (DPBSE - PURPLISH BLUE)GRAPHIC 4 (DPBSE - PURPLISH BLUE)
-
588LY-F199C-60-00 GRAPHIC 3 (DPBSE - PURPLISH BLUE)GRAPHIC 3 (DPBSE - PURPLISH BLUE)
-
598LY-F199L-60-00 GRAPHIC 6 (DPBSE - PURPLISH BLUE)GRAPHIC 6 (DPBSE - PURPLISH BLUE)
-
608LY-F199K-60-00 GRAPHIC 5 (DPBSE - PURPLISH BLUE)GRAPHIC 5 (DPBSE - PURPLISH BLUE)
-
618LY-F199B-60-00 GRAPHIC 2 (DPBSE - PURPLISH BLUE)GRAPHIC 2 (DPBSE - PURPLISH BLUE)
-
628LY-F199A-60-00 GRAPHIC 1 (DPBSE - PURPLISH BLUE)GRAPHIC 1 (DPBSE - PURPLISH BLUE)
-
638LY-F199R-60-00 GRAPHIC 10 (DPBSE - PURPLISH BLUE)GRAPHIC 10 (DPBSE - PURPLISH BLUE)
-
648LY-F199P-60-00 GRAPHIC 9 (DPBSE - PURPLISH BLUE)GRAPHIC 9 (DPBSE - PURPLISH BLUE)
-
658JP-RA524-00-00 RIVET, 15RIVET, 15
