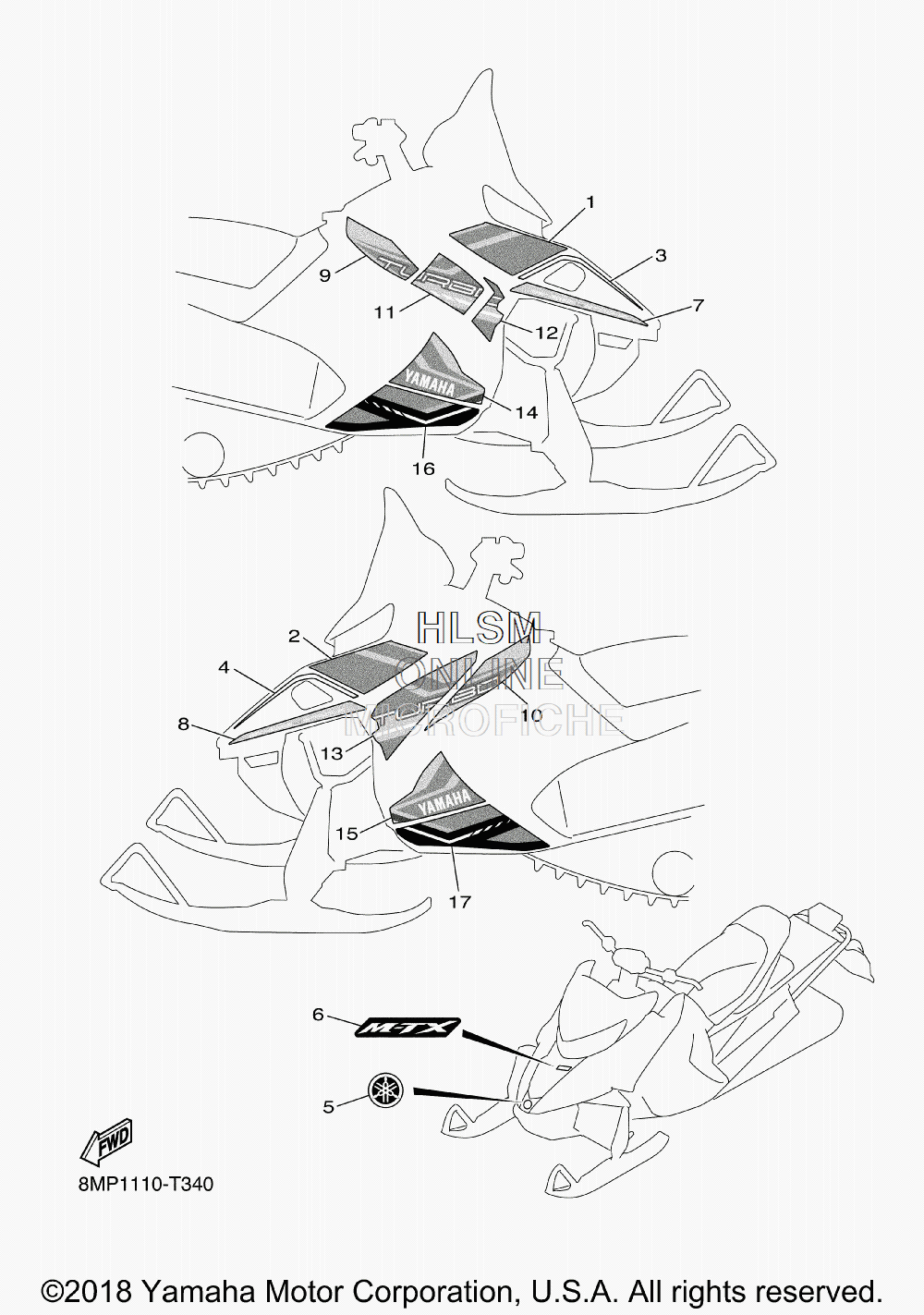

DECALS для Yamaha SIDEWINDER M TX 162 - 2018 года выпуска
-
№АртикулНазвание
-
18MH-K711P-10-00 GRAPHIC, SHROUD 4GRAPHIC, SHROUD 4
-
28MH-K711N-10-00 GRAPHIC, SHROUD 3GRAPHIC, SHROUD 3
-
38MH-K711M-10-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
48MH-K711L-10-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
55KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
68KC-K711R-00-00 GRAPHIC, SHROUD CENTERGRAPHIC, SHROUD CENTER
-
78MH-K712L-10-00 GRAPHIC 11GRAPHIC 11
-
88MH-K712J-10-00 GRAPHIC 9GRAPHIC 9
-
98MH-K711B-10-00 GRAPHIC 2GRAPHIC 2
-
108MH-K711A-10-00 GRAPHIC 1GRAPHIC 1
-
118MH-K711W-10-00 GRAPHIC 11GRAPHIC 11
-
128MH-K711F-10-00 GRAPHIC 6GRAPHIC 6
-
138MH-K711E-10-00 GRAPHIC 5GRAPHIC 5
-
148MH-K712H-10-00 GRAPHIC 8GRAPHIC 8
-
158MH-K712G-10-00 GRAPHIC 7GRAPHIC 7
-
168MP-K711V-00-00 GRAPHIC 10GRAPHIC 10
-
178MP-K711U-00-00 GRAPHIC 9GRAPHIC 9
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- • DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FRONT FRAME COMP 1
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THROTTLE BODY ASSY
- TUNNEL EXTENSION ASSEMBLY
- TURBO CHARGER
- VALVE ASSY
- WATER PUMP ASSY
