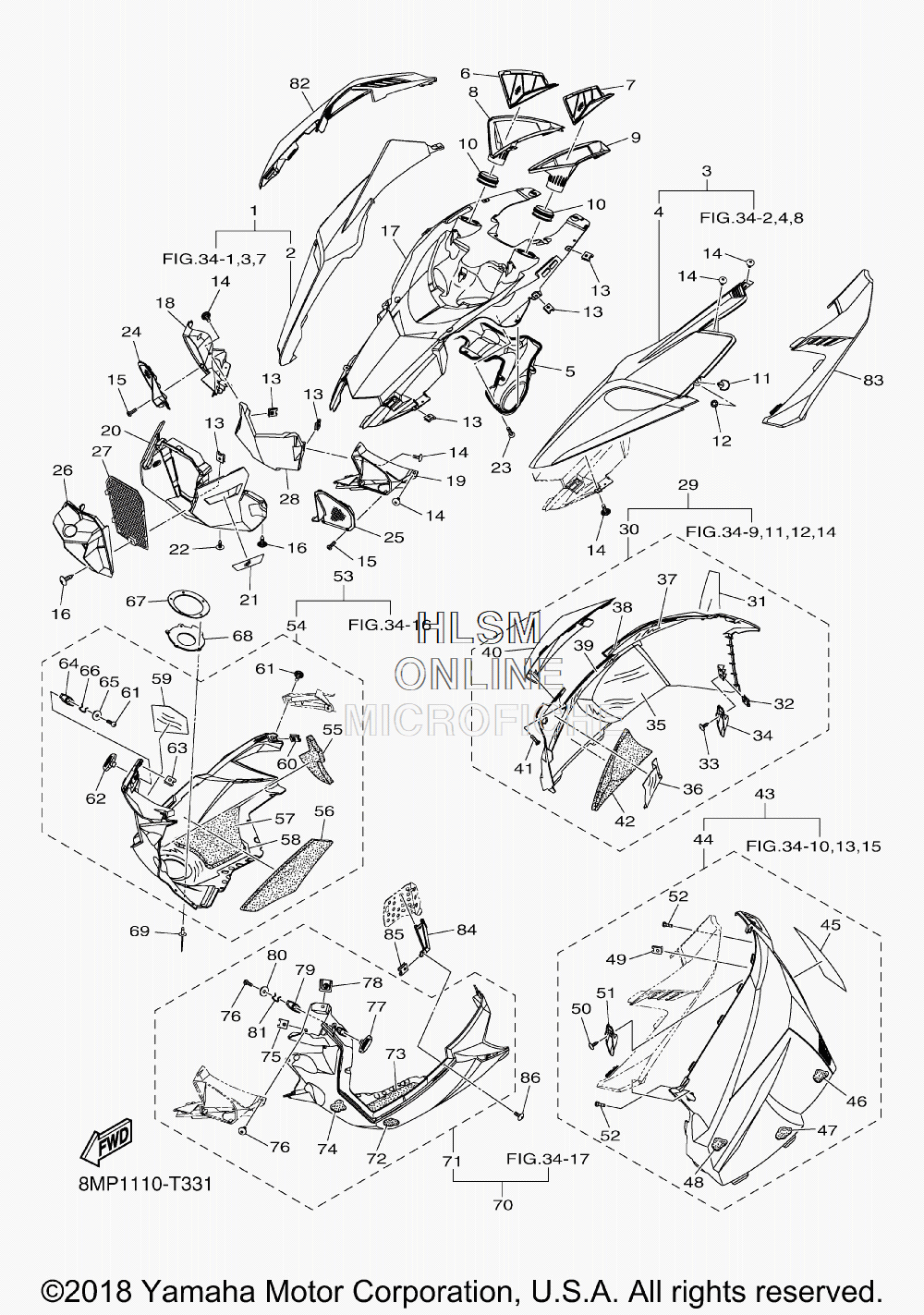

HOOD ASSY для Yamaha SIDEWINDER M TX 162 - 2018 года выпуска
-
№АртикулНазвание
-
18MH-F198A-00-00 HOOD ASSY 4HOOD ASSY 4
-
28LX-K7122-00-00 ...HOOD 2...HOOD 2
-
38MH-F197A-00-00 HOOD ASSY 3HOOD ASSY 3
-
48LX-K7121-00-00 ...HOOD 1...HOOD 1
-
58KC-K715B-00-00 INTAKE, LOWERINTAKE, LOWER
-
68KC-K715E-00-00 SCREEN, INTAKE DUCT 2SCREEN, INTAKE DUCT 2
-
78KC-K715D-00-00 SCREEN, INTAKE DUCT 1SCREEN, INTAKE DUCT 1
-
88KC-K715G-00-00 DUCT, INTAKE 2DUCT, INTAKE 2
-
98KC-K715F-00-00 DUCT, INTAKE 1DUCT, INTAKE 1
-
108KC-K715R-00-00 SEAL, INTAKESEAL, INTAKE
-
118JP-RAK02-00-00 PIN, 2PIN, 2
-
128JP-RA345-00-00 NUT, 1NUT, 1
-
138JP-RA352-00-00 NUT, CLIP 10NUT, CLIP 10
-
148JP-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
-
158KC-RA238-00-00 .SCREW, 4.SCREW, 4
-
168KC-RA290-00-00 SCREWSCREW
-
178KC-K715C-00-00 INTAKE, UPPERINTAKE, UPPER
-
188KC-K715J-00-00 VENT, FRONT 2VENT, FRONT 2
-
198KC-K715H-00-00 VENT, FRONT 1VENT, FRONT 1
-
208KC-K715K-00-00 DUCT, INTAKE FRONTDUCT, INTAKE FRONT
-
218MY-H5133-00-00 TAPE, REFLECTORTAPE, REFLECTOR
-
228KC-RA239-00-00 SCREW, 5SCREW, 5
-
238JP-RA2A2-00-00 SCREW, 13SCREW, 13
-
248KC-K715M-00-00 BEZEL, VENT 2BEZEL, VENT 2
-
258KC-K715L-00-00 BEZEL, VENT 1BEZEL, VENT 1
-
268KC-K715N-00-00 GRILLEGRILLE
-
278KC-K7123-00-00 GUIDE 1GUIDE 1
-
288KC-K715P-00-00 SHUT, INTAKESHUT, INTAKE
-
298MH-K810G-00-00 SIDE PANEL COMP (RIGHT HAND)SIDE PANEL COMP (RIGHT HAND)
-
308KC-K8140-10-00 ...SHELL SIDE PANEL ASSY 2...SHELL SIDE PANEL ASSY 2
-
318KC-K7761-70-00 ......LABEL, WARNING 1......LABEL, WARNING 1
-
328JP-RA352-00-00 ......NUT, CLIP 10......NUT, CLIP 10
-
338KC-RA290-00-00 ......SCREW......SCREW
-
348KC-K715T-00-00 ......HOOK 2......HOOK 2
-
358KC-K7552-00-00 ......PROTECTOR 2......PROTECTOR 2
-
368KC-K7551-01-00 ......PROTECTOR 1......PROTECTOR 1
-
378KC-K7553-01-00 ......PROTECTOR 3......PROTECTOR 3
-
388KC-K7554-00-00 ......PROTECTOR 4......PROTECTOR 4
-
398KC-K7555-00-00 ......PROTECTOR 5......PROTECTOR 5
-
408KC-K715U-00-00 ......VENT, SIDE 1......VENT, SIDE 1
-
418KC-RA238-00-00 ......SCREW, 4......SCREW, 4
-
428KC-K7278-00-00 ......DAMPER, NOISE 18......DAMPER, NOISE 18
-
438MH-K810F-00-00 SIDE PANEL COMP (LEFT HAND)SIDE PANEL COMP (LEFT HAND)
-
448KC-K8130-10-00 ...SHELL SIDE PANEL ASSY 1...SHELL SIDE PANEL ASSY 1
-
458KC-K7761-S0-00 ......LABEL, WARNING 1......LABEL, WARNING 1
-
468KC-K7279-00-00 ......DAMPER, NOISE 19......DAMPER, NOISE 19
-
478KC-K7277-00-00 ......DAMPER, NOISE 17......DAMPER, NOISE 17
-
488KC-K7277-10-00 ......DAMPER, NOISE 17......DAMPER, NOISE 17
-
498JP-RA352-00-00 ......NUT, CLIP 10......NUT, CLIP 10
-
508KC-RA290-00-00 ......SCREW......SCREW
-
518KC-K715S-00-00 ......HOOK 1......HOOK 1
-
528KC-RA238-00-00 ......SCREW, 4......SCREW, 4
-
538MH-F1983-10-00 HOOD 2HOOD 2
-
548KC-K8140-50-00 ...SHELL SIDE PANEL ASSY 2...SHELL SIDE PANEL ASSY 2
-
558KC-K7276-00-00 ......DAMPER, NOISE 16......DAMPER, NOISE 16
-
568KC-K7275-00-00 ......DAMPER, NOISE 15......DAMPER, NOISE 15
-
578KC-K7274-00-00 ......DAMPER, NOISE 14......DAMPER, NOISE 14
-
588KC-K7556-01-00 ......PROTECTOR 6......PROTECTOR 6
-
598KC-K7557-10-00 ......PROTECTOR 7......PROTECTOR 7
-
608JP-RA352-00-00 ......NUT, CLIP 10......NUT, CLIP 10
-
618JP-RA2A2-00-00 ......SCREW, 13......SCREW, 13
-
628KC-K7324-00-00 ......KNOB......KNOB
-
638JP-RA350-00-00 ......NUT, CLIP 1/4......NUT, CLIP 1/4
-
648KC-K7153-00-00 ......PLATE, BACK UP 1......PLATE, BACK UP 1
-
658JP-RA429-00-00 ......WASHER......WASHER
-
668JP-RAC15-00-00 ......CLIP, 6......CLIP, 6
-
678KC-K8181-00-00 PLATE 1PLATE 1
-
688KC-G1138-00-00 SEAL, EXT 1SEAL, EXT 1
-
698JP-RA523-00-00 RIVET, 14RIVET, 14
-
708MH-F1982-10-00 HOOD 1HOOD 1
-
718KC-K8130-50-00 ...SHELL SIDE PANEL ASSY 1...SHELL SIDE PANEL ASSY 1
-
728KC-K7271-00-00 ......DAMPER, NOISE 11......DAMPER, NOISE 11
-
738KC-K7272-00-00 ......DAMPER, NOISE 12......DAMPER, NOISE 12
-
748KC-K7273-00-00 ......DAMPER, NOISE 13......DAMPER, NOISE 13
-
758JP-RA352-00-00 ......NUT, CLIP 10......NUT, CLIP 10
-
768JP-RA2A2-00-00 ......SCREW, 13......SCREW, 13
-
778KC-K7324-00-00 ......KNOB......KNOB
-
788JP-RA350-00-00 ......NUT, CLIP 1/4......NUT, CLIP 1/4
-
798KC-K7153-00-00 ......PLATE, BACK UP 1......PLATE, BACK UP 1
-
808JP-RA429-00-00 ......WASHER......WASHER
-
818JP-RAC15-00-00 ......CLIP, 6......CLIP, 6
-
828LX-K7111-00-00 SHROUDSHROUD
-
838LX-K7112-00-00 SHROUD 2SHROUD 2
-
848MT-F1979-00-00 BRACKET, FRONT HOODBRACKET, FRONT HOOD
-
858JP-RA352-00-00 NUT, CLIP 10NUT, CLIP 10
-
868JP-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
