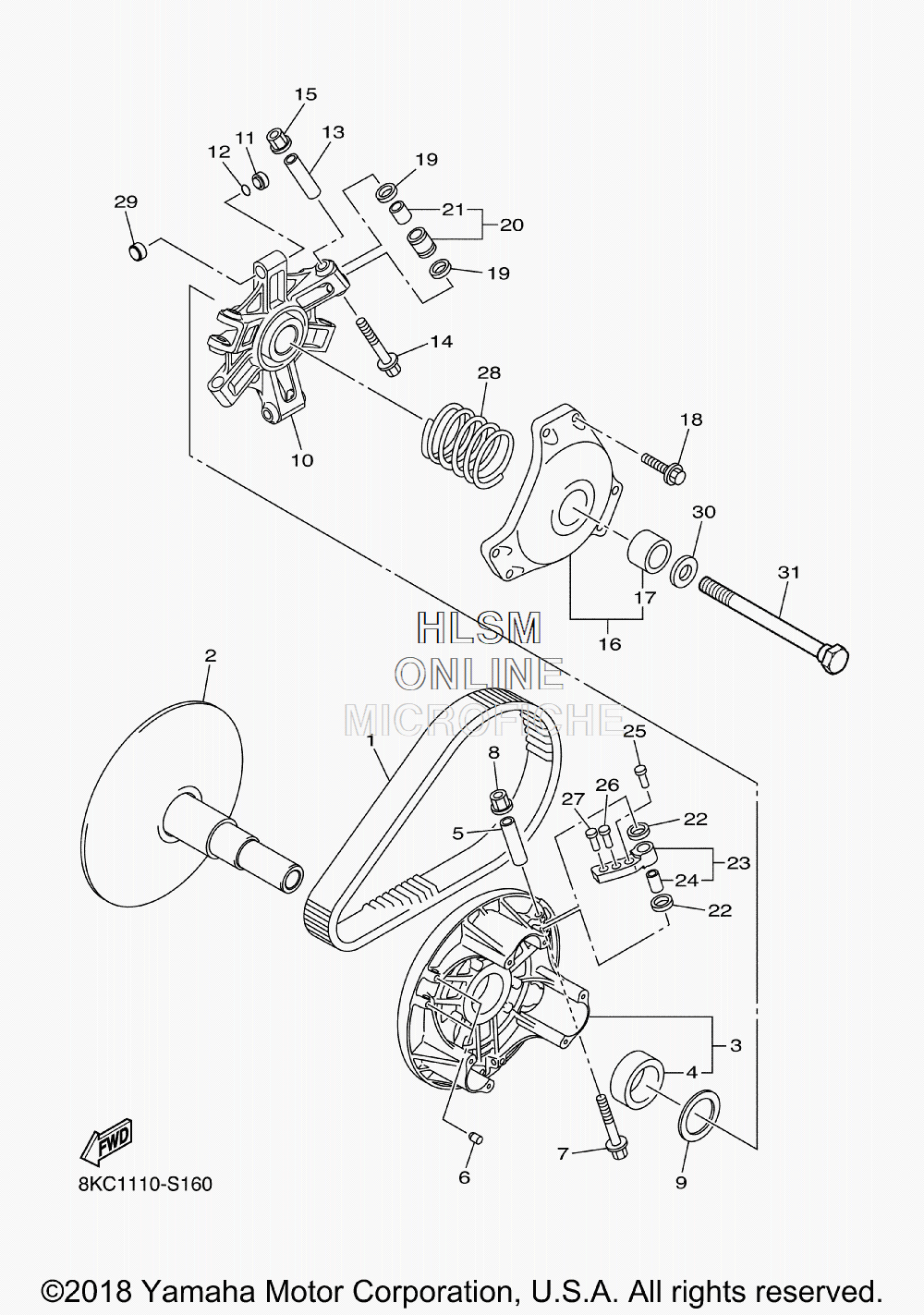

CLUTCH - DRIVE для Yamaha SIDEWINDER M TX SE 162 - 2018 года выпуска
-
№АртикулНазвание
-
18JP-17641-00-00 V-BELTV-BELT
-
28KC-17610-00-00 PRIMARY FIXED SHEAVE COMP.PRIMARY FIXED SHEAVE COMP.
-
38KC-17620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
490384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
590387-05060-00 COLLARCOLLAR
-
690113-05053-00 BOLT, SETBOLT, SET
-
790105-05030-00 BOLT, FLANGEBOLT, FLANGE
-
895602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-33016-00 WASHER, PLATEWASHER, PLATE
-
108KC-17627-00-00 SPIDERSPIDER
-
118KC-17653-00-00 SLIDERSLIDER
-
1293210-07100-00 O-RINGO-RING
-
1390387-05059-00 COLLARCOLLAR
-
1490105-05030-00 BOLT, FLANGEBOLT, FLANGE
-
1595602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
168DF-17630-00-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
1790380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
1895812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1990202-09002-00 WASHER, PLATEWASHER, PLATE
-
208FG-17624-00-00 ROLLER, COMPROLLER, COMP
-
2190386-09001-00 ...BUSH...BUSH
-
2290202-08005-00 WASHER, PLATEWASHER, PLATE
-
238KC-17605-00-00 WEIGHT COMPWEIGHT COMP
-
2490386-08002-00 ...BUSH...BUSH
-
2590261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (INNER)RIVET, COUNTERSUNK (ST17.2MM) (INNER)
-
2690261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (CENTER)RIVET, COUNTERSUNK (ST17.2MM) (CENTER)
-
2790261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (OUTER)RIVET, COUNTERSUNK (AL10.3MM) (OUTER)
-
2890501-510A0-00 SPRING, COMPRESSION (SL-OR-SL)SPRING, COMPRESSION (SL-OR-SL)
-
298KC-17653-10-00 SLIDERSLIDER
-
3092907-16100-00 WASHERWASHER
-
318V0-17647-10-00 BOLT (L=156.5MM)BOLT (L=156.5MM)
