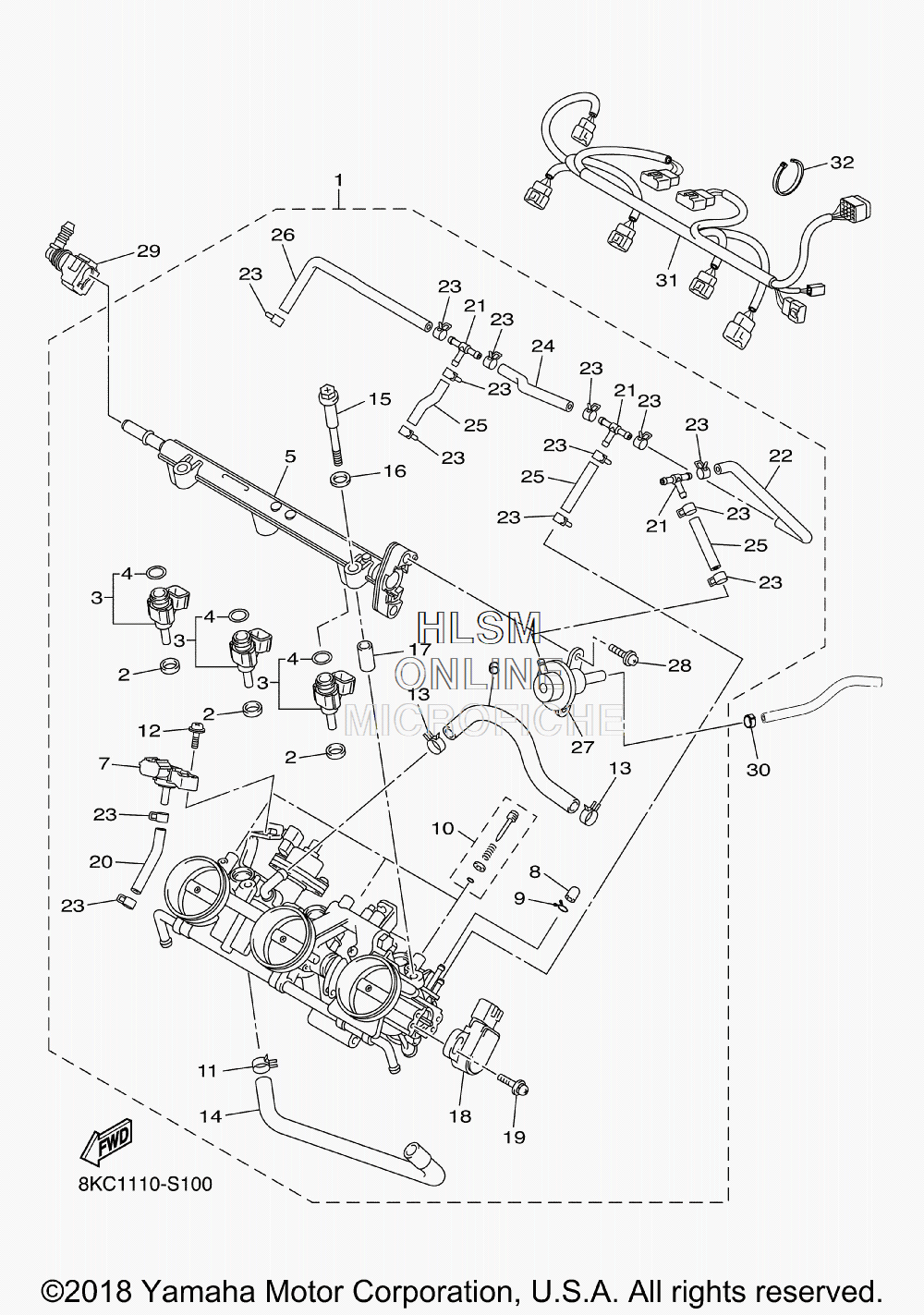

THROTTLE BODY ASSY для Yamaha SIDEWINDER M TX SE 162 - 2018 года выпуска
-
№АртикулНазвание
-
18KJ-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-10-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
38KJ-13761-00-00 ...INJECTOR...INJECTOR
-
48FP-14147-00-00 ......O-RING......O-RING
-
58KJ-13938-00-00 ...PIPE...PIPE
-
68GL-13895-00-00 ...HOSE, AIR...HOSE, AIR
-
76BH-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
884M-14169-00-00 ...CAP...CAP
-
98KJ-14137-00-00 ...CLIP...CLIP
-
108GL-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
1190468-08104-00 ...CLIP...CLIP
-
122C0-14216-00-00 ...SCREW...SCREW
-
138KJ-14159-00-00 ...CLIP...CLIP
-
148HF-13545-00-00 ...HOSE 1...HOSE 1
-
158GL-13573-00-00 ...BOLT 1...BOLT 1
-
168GL-13571-00-00 ...WASHER...WASHER
-
178GL-14534-00-00 ...COLLAR...COLLAR
-
188GL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
198CC-14216-10-00 ...SCREW...SCREW
-
205JW-24311-00-00 ...PIPE, FUEL 1...PIPE, FUEL 1
-
2168V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
228GL-13893-00-00 ...HOSE, AIR 3...HOSE, AIR 3
-
235DM-14919-00-00 ...CLIP...CLIP
-
2468V-13533-00-00 ...HOSE, VACUUM SENSING 4...HOSE, VACUUM SENSING 4
-
258FP-14349-30-00 ...PIPE...PIPE
-
268KJ-1410E-00-00 ...HOSE...HOSE
-
278KJ-13906-00-00 ...REGULATOR, PRESSURE...REGULATOR, PRESSURE
-
2898507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
298GC-24304-00-00 FUEL PIPE JOINT COMP 1FUEL PIPE JOINT COMP 1
-
308KC-RAC01-00-00 CLIP, 2CLIP, 2
-
318KC-H2386-00-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
328JM-RAB01-00-00 CLAMP, 2 (8 INCH) (OPT)CLAMP, 2 (8 INCH) (OPT)
-
328JP-RAB04-00-00 CLAMP, 2 (11.5 INCH) (OPT)CLAMP, 2 (11.5 INCH) (OPT)
