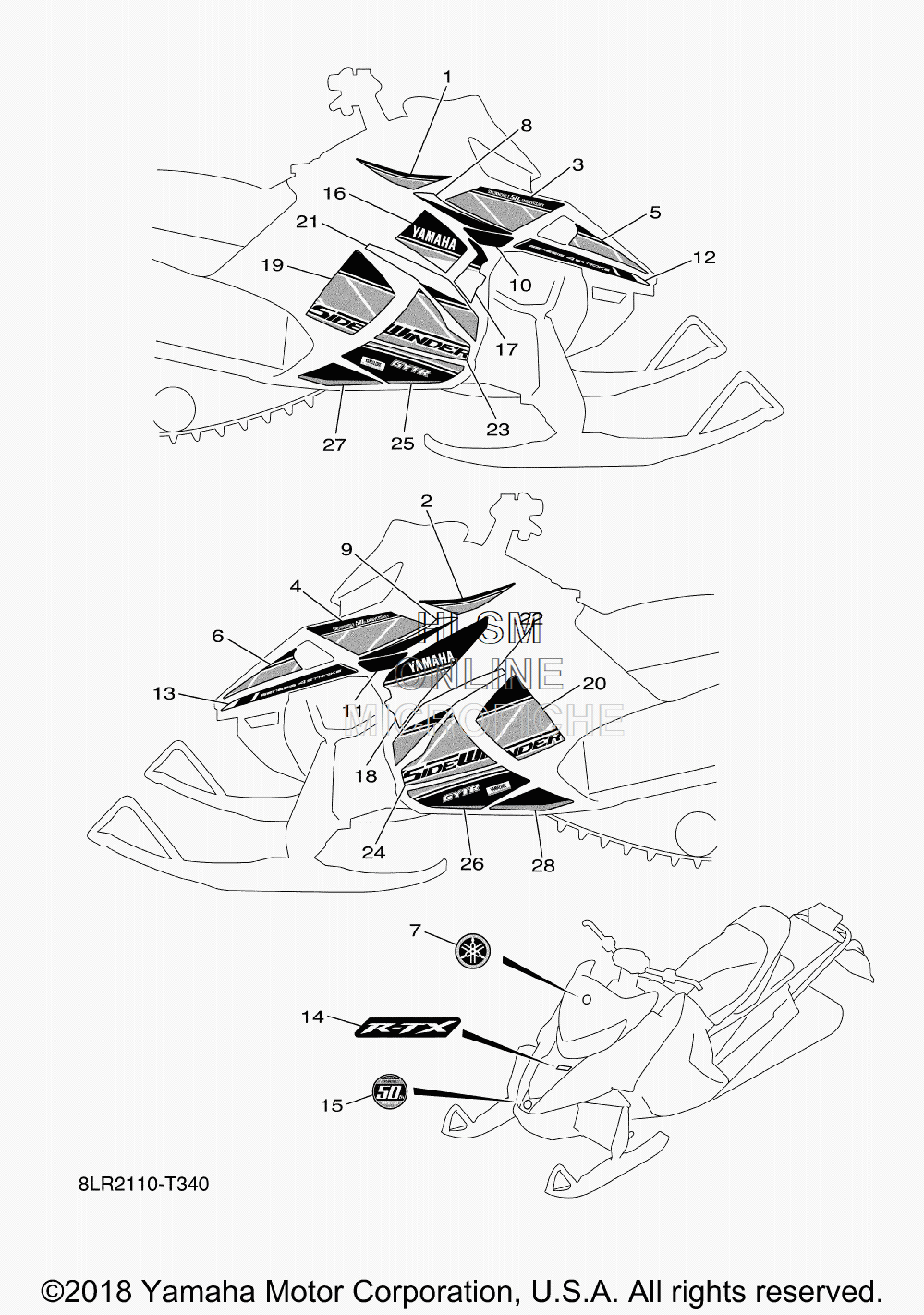

DECALS для Yamaha SIDEWINDER R TX LE 50TH - 2018 года выпуска
-
№АртикулНазвание
-
18MT-K711V-00-00 GRAPHIC 10GRAPHIC 10
-
28MT-K711U-00-00 GRAPHIC 9GRAPHIC 9
-
38MT-K711P-00-00 GRAPHIC, SHROUD 4GRAPHIC, SHROUD 4
-
48MT-K711N-00-00 GRAPHIC, SHROUD 3GRAPHIC, SHROUD 3
-
58MT-K711M-00-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
68MT-K711L-00-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
75KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
88MT-K712M-00-00 GRAPHIC 12GRAPHIC 12
-
98MT-K712L-00-00 GRAPHIC 11GRAPHIC 11
-
108MT-K712K-00-00 GRAPHIC 10GRAPHIC 10
-
118MT-K712J-00-00 GRAPHIC 9GRAPHIC 9
-
128MT-K711Y-00-00 GRAPHIC, SHROUD 6GRAPHIC, SHROUD 6
-
138MT-K711X-00-00 GRAPHIC, SHROUD 5GRAPHIC, SHROUD 5
-
148LR-K711R-00-00 GRAPHIC, SHROUD CENTERGRAPHIC, SHROUD CENTER
-
158LR-K715A-00-00 EMBLEM 3DEMBLEM 3D
-
168MT-K711W-00-00 GRAPHIC 11GRAPHIC 11
-
178MT-K711B-00-00 GRAPHIC 2GRAPHIC 2
-
188MT-K711A-00-00 GRAPHIC 1GRAPHIC 1
-
198MT-K711F-00-00 GRAPHIC 6GRAPHIC 6
-
208MT-K711E-00-00 GRAPHIC 5GRAPHIC 5
-
218MT-K712H-00-00 GRAPHIC 8GRAPHIC 8
-
228MT-K712G-00-00 GRAPHIC 7GRAPHIC 7
-
238MT-K711D-00-00 GRAPHIC 4GRAPHIC 4
-
248MT-K711C-00-00 GRAPHIC 3GRAPHIC 3
-
258LR-K711V-10-00 GRAPHIC 10GRAPHIC 10
-
268LR-K711U-10-00 GRAPHIC 9GRAPHIC 9
-
278LR-K711H-10-00 GRAPHIC 8GRAPHIC 8
-
288LR-K711G-10-00 GRAPHIC 7GRAPHIC 7
