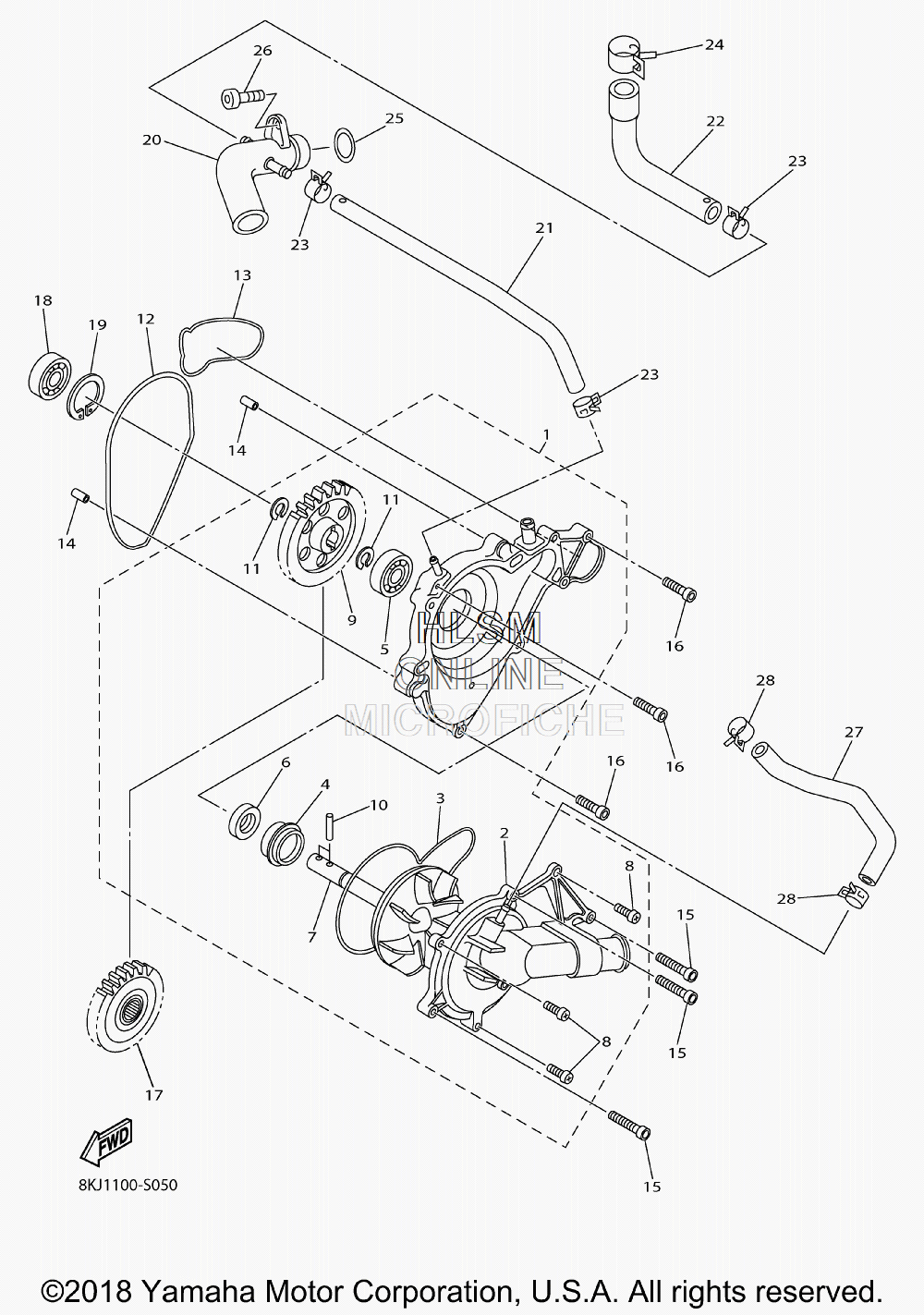

WATER PUMP ASSY для Yamaha SIDEWINDER R TX LE 50TH - 2018 года выпуска
-
№АртикулНазвание
-
18ES-12420-02-00 WATER PUMP ASSYWATER PUMP ASSY
-
28ES-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
38ES-12427-00-00 ...GASKET, HOUSING COVER 1...GASKET, HOUSING COVER 1
-
48ES-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
593306-00006-00 ...BEARING...BEARING
-
693102-10207-00 ...OIL SEAL (SD 10-21-5 HS)...OIL SEAL (SD 10-21-5 HS)
-
78ES-12450-01-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
898502-06016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
98ES-12459-01-00 ...GEAR, IMPELLER SHAFT...GEAR, IMPELLER SHAFT
-
1093604-16092-00 ...PIN, DOWEL...PIN, DOWEL
-
1199002-08600-00 ...CIRCLIP...CIRCLIP
-
128ES-12435-00-00 GASKETGASKET
-
138ES-12434-00-00 GASKETGASKET
-
1499530-08012-00 PIN, DOWELPIN, DOWEL
-
1591312-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1691312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
178ES-12436-00-00 GEAR, DRIVEGEAR, DRIVE
-
1893306-00006-00 BEARINGBEARING
-
1993420-26077-00 CIRCLIPCIRCLIP
-
208KJ-12482-01-00 PIPE 2PIPE 2
-
218KJ-12485-00-00 PIPE 5PIPE 5
-
228KJ-12577-00-00 HOSE 2HOSE 2
-
2390467-110A2-00 CLIPCLIP
-
2490467-120A5-00 CLIPCLIP
-
2593210-235A1-00 O-RINGO-RING
-
2691312-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
278KJ-12578-00-00 HOSE 3HOSE 3
-
2890467-110A2-00 CLIPCLIP
