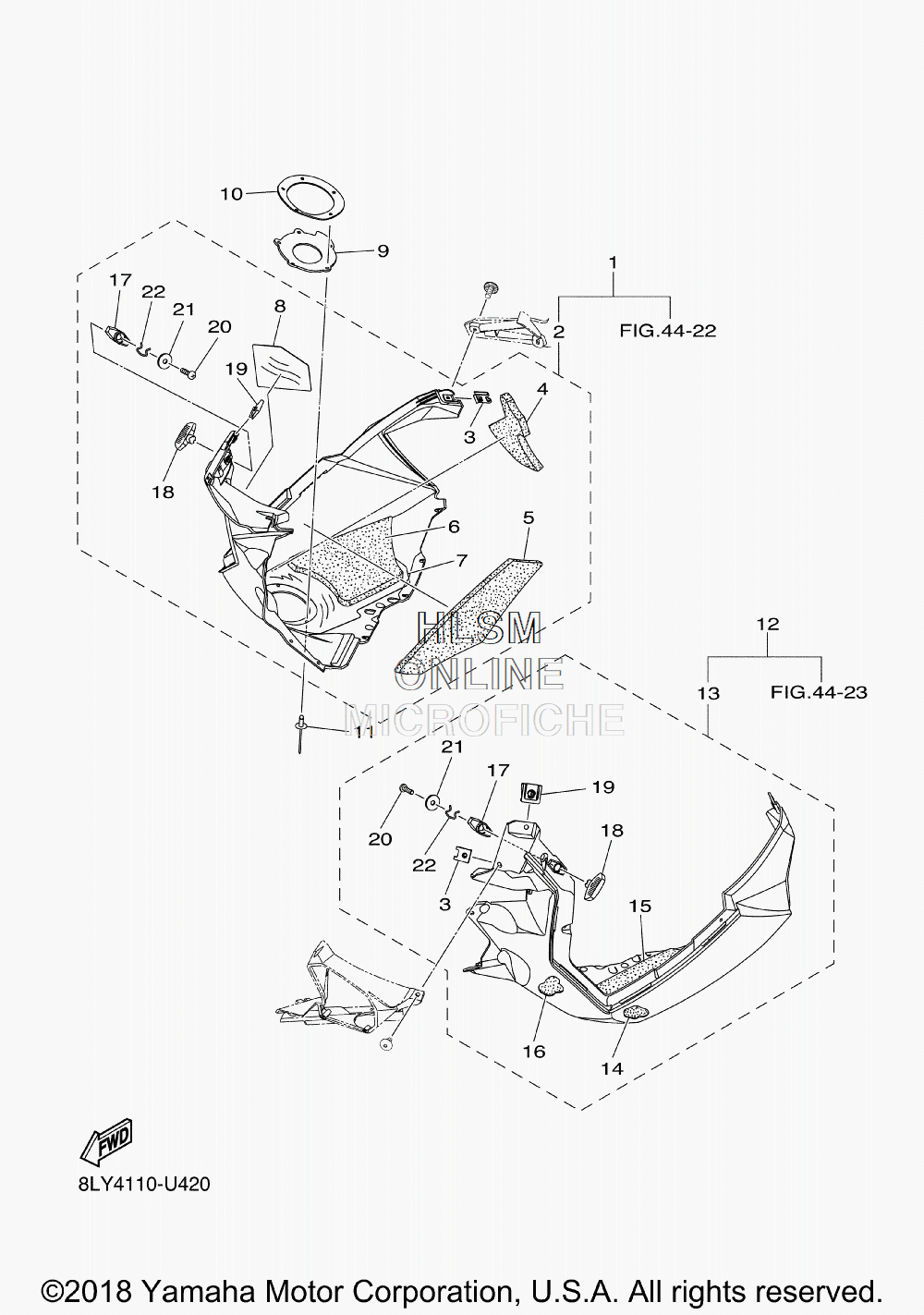

HOOD для Yamaha SIDEWINDER L TX DX - 2019 года выпуска
-
№АртикулНазвание
-
18MB-F1983-00-00 HOOD 2HOOD 2
-
28MG-F198H-00-00 ...HOOD 4...HOOD 4
-
38JP-RA352-00-00 ......NUT SPRING (INCL 2,13)......NUT SPRING (INCL 2,13)
-
48KC-K7276-00-00 ......DAMPER NOISE 16......DAMPER NOISE 16
-
58KC-K7275-00-00 ......DAMPER NOISE 15......DAMPER NOISE 15
-
68KC-K7274-00-00 ......DAMPER NOISE 14......DAMPER NOISE 14
-
78KC-K7556-01-00 ......PROTECTOR 6......PROTECTOR 6
-
88KC-K7557-10-00 ......PROTECTOR 7......PROTECTOR 7
-
98KC-G1138-00-00 SEAL EXT. 1SEAL EXT. 1
-
108KC-K8181-00-00 PLATE 1PLATE 1
-
118JP-RA523-00-00 RIVET 14RIVET 14
-
128MB-F1982-00-00 HOOD 1HOOD 1
-
138MG-F197H-00-00 ...HOOD 3...HOOD 3
-
148KC-K7271-00-00 ......DAMPER NOISE 11......DAMPER NOISE 11
-
158KC-K7272-00-00 ......DAMPER NOISE 12......DAMPER NOISE 12
-
168KC-K7273-00-00 ......DAMPER NOISE 13......DAMPER NOISE 13
-
178KC-K7153-00-00 ......PLATE BACK UP 1 (INCL 2,13)......PLATE BACK UP 1 (INCL 2,13)
-
188KC-K7324-00-00 ......KNOB (INCL 2,13)......KNOB (INCL 2,13)
-
198JP-RA350-00-00 ......NUT SPRING (INCL 2,13)......NUT SPRING (INCL 2,13)
-
208KC-RA238-00-00 ......SCREW 4 (INCL 2,13)......SCREW 4 (INCL 2,13)
-
218JP-RA429-00-00 ......WASHER (INCL 2,13)......WASHER (INCL 2,13)
-
228JP-RAC15-00-00 ......CLIP 6 (INCL 2,13)......CLIP 6 (INCL 2,13)
