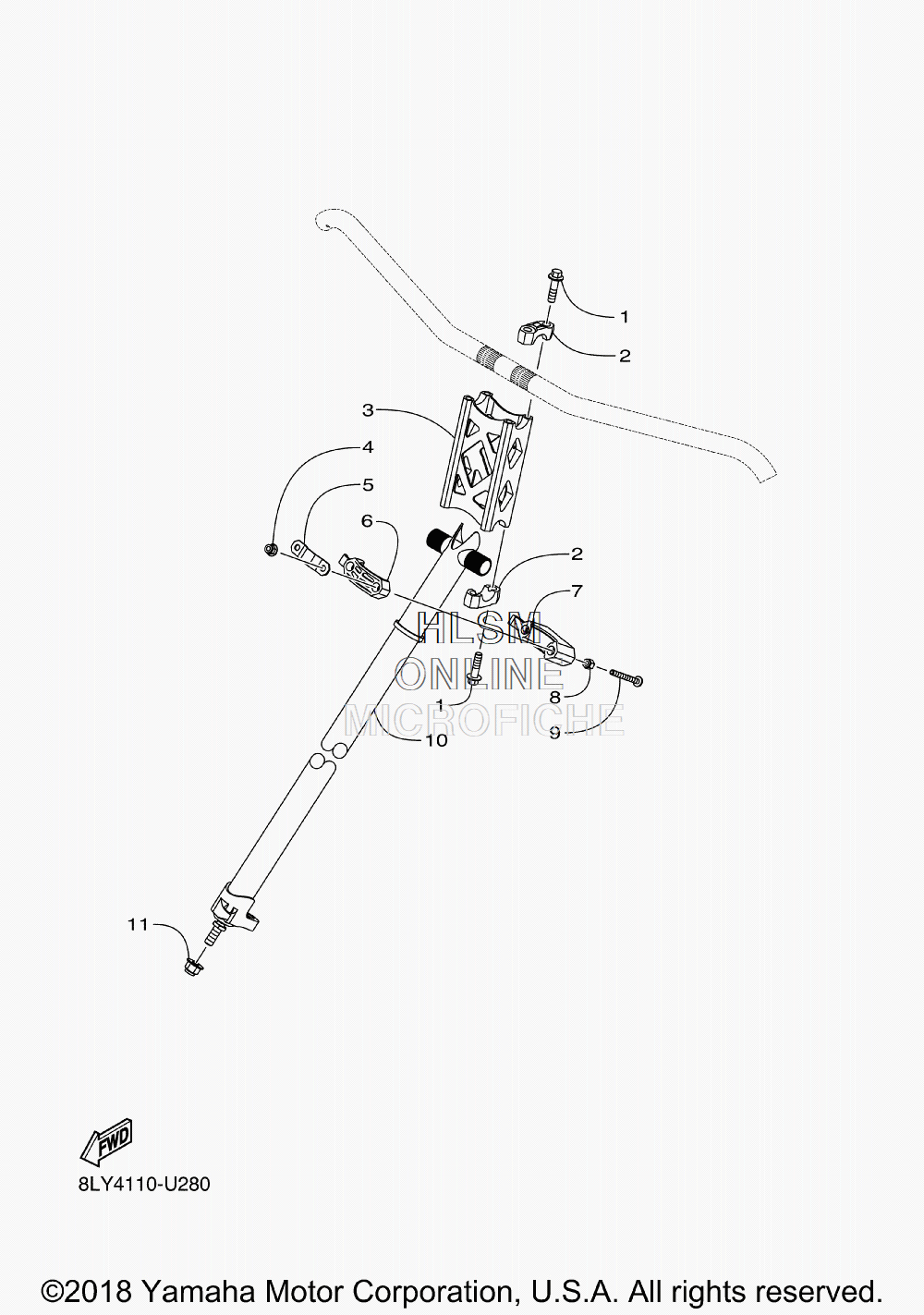

STEERING 2 для Yamaha SIDEWINDER L TX DX - 2019 года выпуска
-
№АртикулНазвание
-
18JP-RA188-00-00 BOLT FLANGEBOLT FLANGE
-
28JP-F3814-10-00 HOLDER HANDLE UPPERHOLDER HANDLE UPPER
-
38JP-F381B-10-00 JOINTJOINT
-
48JM-RA322-00-00 NUT FLANGE M6-1.0NUT FLANGE M6-1.0
-
58JP-F3872-00-00 HOLDER BEARINGHOLDER BEARING
-
68KG-F3812-00-00 BEARING STEERINGBEARING STEERING
-
78KG-F3812-10-00 BEARING STEERINGBEARING STEERING
-
88JP-RA379-00-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
98JP-RA299-00-00 SCREW 10SCREW 10
-
108JP-F3813-01-00 COLUMN STEERING 2COLUMN STEERING 2
-
118JP-RA378-01-00 NUT SELF-LOCKINGNUT SELF-LOCKING
