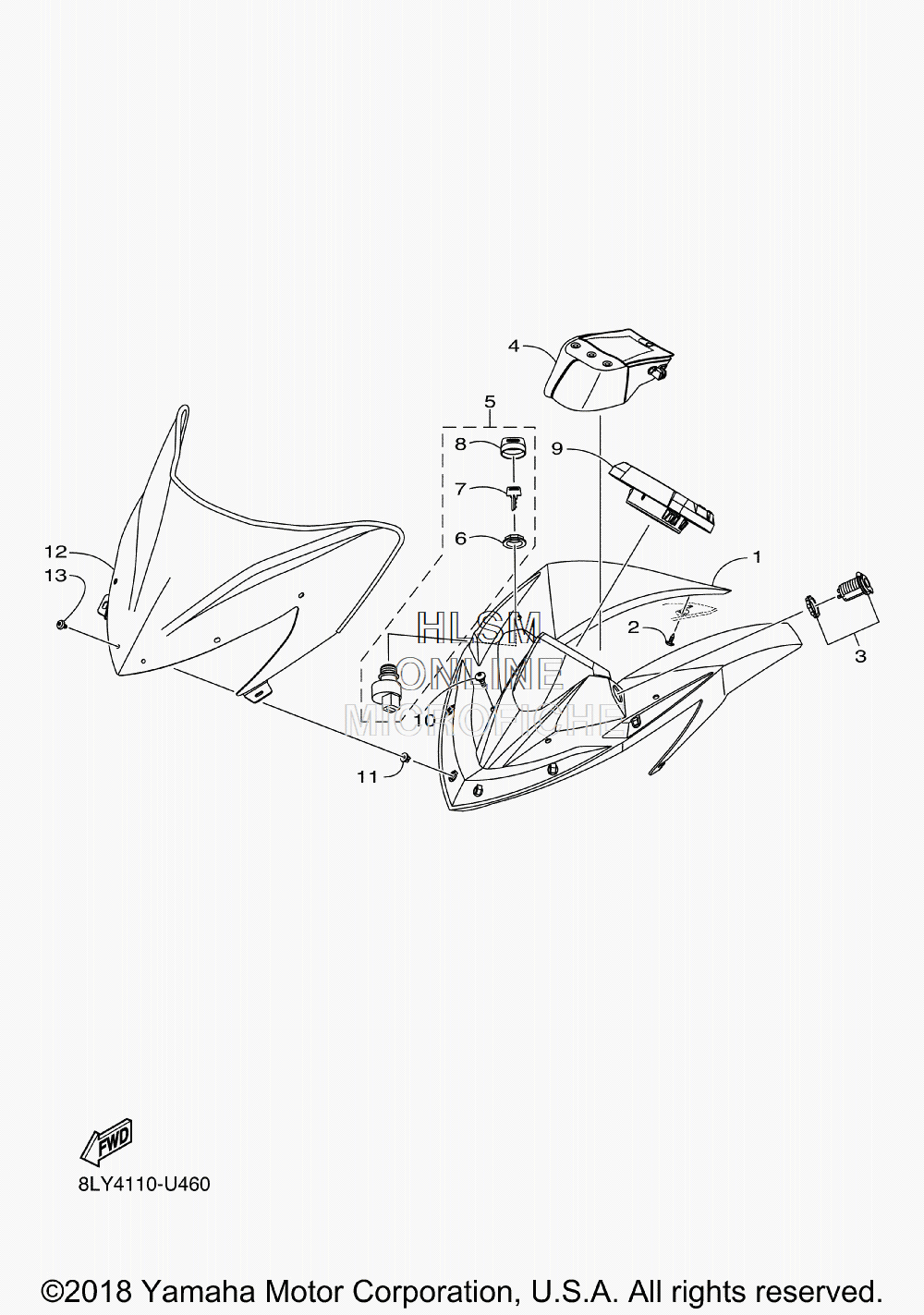

CONSOLE ASSY для Yamaha SIDEWINDER L TX LE - 2019 года выпуска
-
№АртикулНазвание
-
18LY-K7712-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
28KC-RA290-00-00 SCREWSCREW
-
38JP-H254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
48MT-RAY39-00-00 BAG, GOGGLEBAG, GOGGLE
-
58JP-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
68JP-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
78JP-H2511-00-00 ...KEY - Y SERIESE, LEFT-SIDE CUT (OPT)...KEY - Y SERIESE, LEFT-SIDE CUT (OPT)
-
78JP-H2511-10-00 ...KEY - Z SERIES, RIGHT-SIDE CUT (OPT)...KEY - Z SERIES, RIGHT-SIDE CUT (OPT)
-
88JP-H2577-01-00 ...CAP, KEY...CAP, KEY
-
98JR-H3501-10-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
108JP-RA253-00-00 SCREWSCREW
-
118JP-RA373-00-00 NUT, INSERTNUT, INSERT
-
128MR-K7210-30-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
138JP-RA280-10-00 SCREW, TAPPINGSCREW, TAPPING
