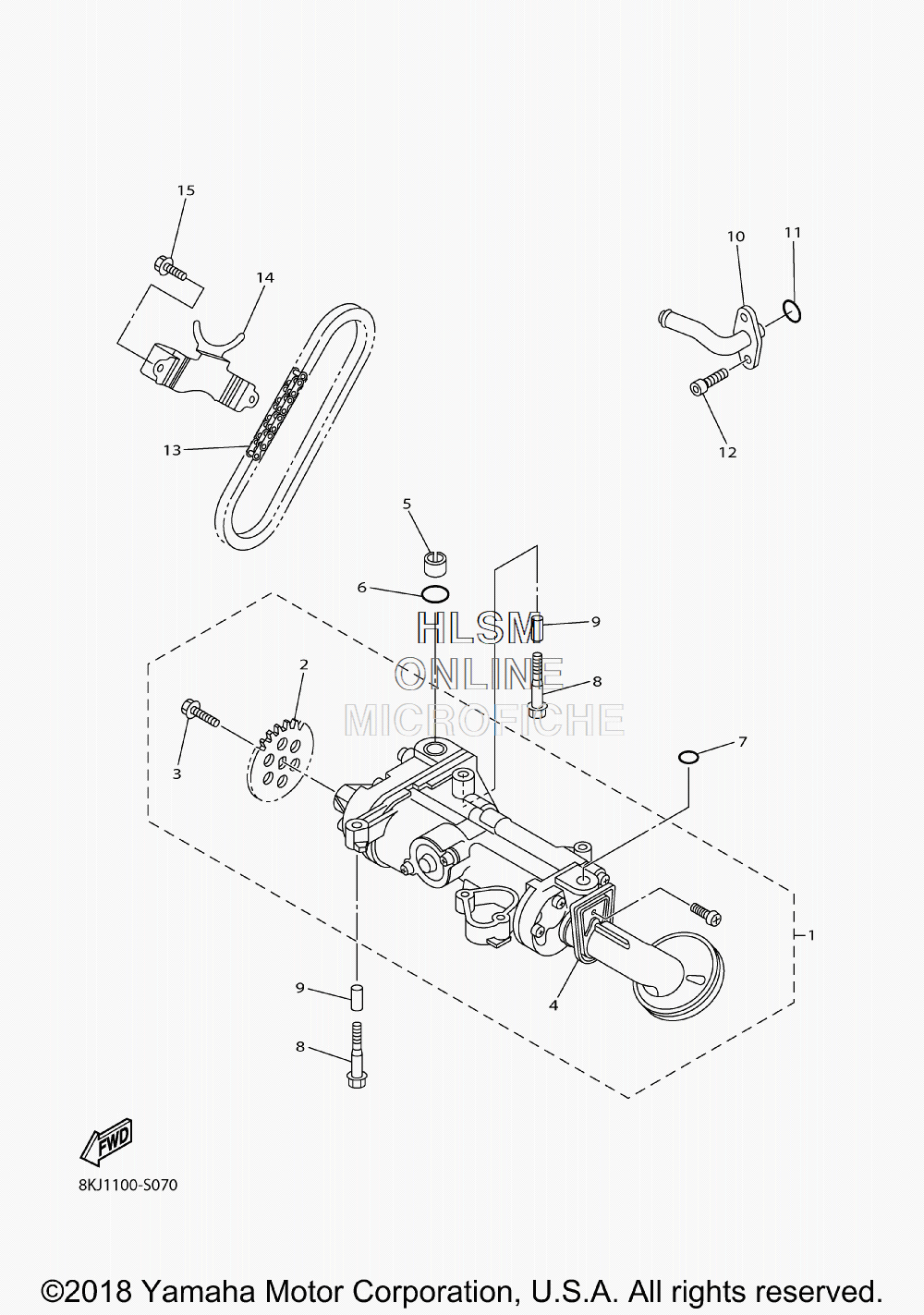

OIL PUMP ASSY для Yamaha SIDEWINDER L TX LE - 2019 года выпуска
-
№АртикулНазвание
-
18KJ-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
28KJ-13355-00-00 ...SPROCKET, DRIVEN...SPROCKET, DRIVEN
-
390105-06066-00 ...BOLT, FLANGE...BOLT, FLANGE
-
48ES-13427-00-00 ...SPACER, STRAINER...SPACER, STRAINER
-
58ES-13284-00-00 PIPEPIPE
-
693210-18322-00 O-RINGO-RING
-
793210-14579-00 O-RINGO-RING
-
895812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
991808-22019-00 PIN, DOWELPIN, DOWEL
-
108KJ-13115-00-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
1193210-16629-00 O-RINGO-RING
-
1291312-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1394580-25064-00 CHAIN (DID25 64LE)CHAIN (DID25 64LE)
-
148ES-13898-00-00 HOLDERHOLDER
-
1595812-06012-00 BOLT, FLANGEBOLT, FLANGE
