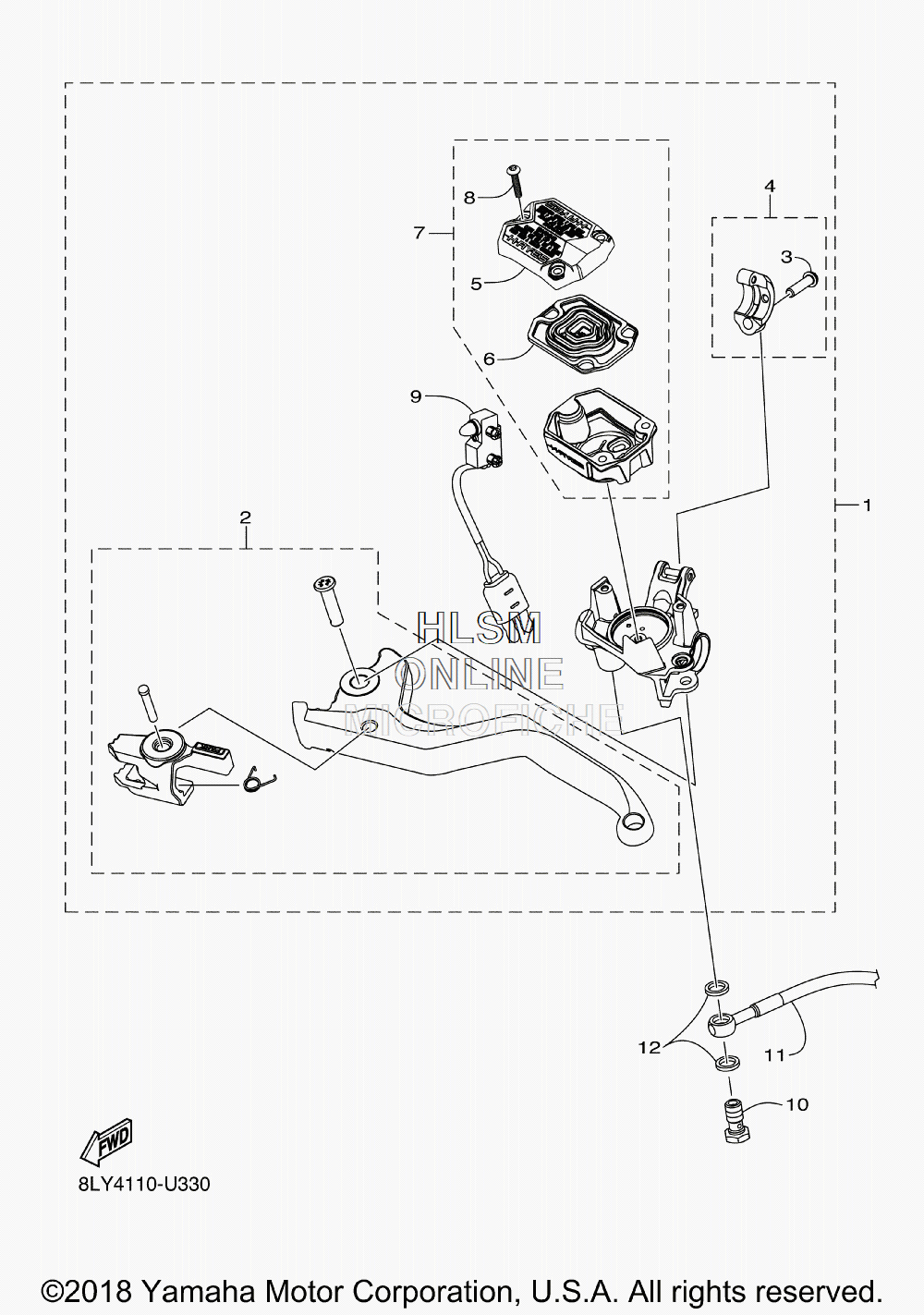

BRAKE ASSY для Yamaha SIDEWINDER M TX LE 162 - 2019 года выпуска
-
№АртикулНазвание
-
18MY-F583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
28MY-F610A-00-00 ...BRAKE LEVER SET...BRAKE LEVER SET
-
38JP-RA238-00-00 ......SCREW, 4 (INCL 4)......SCREW, 4 (INCL 4)
-
48MY-F5867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
58MY-F5852-00-00 ......CAP, RESERVOIR (INCL 7)......CAP, RESERVOIR (INCL 7)
-
68MY-F5854-00-00 ......DIAPHRAGM, RESERVOIR (INCL 7)......DIAPHRAGM, RESERVOIR (INCL 7)
-
78MY-F5851-00-00 ...BODY, MASTER CYLINDER...BODY, MASTER CYLINDER
-
88MY-RA276-00-00 ......SCREW, TAPPING ((INCL 7)......SCREW, TAPPING ((INCL 7)
-
98JP-H2530-00-00 ...STOP SWITCH ASSY...STOP SWITCH ASSY
-
108JP-RA1B3-00-00 BOLT, UNIONBOLT, UNION
-
118MY-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
128JP-RA435-00-00 WASHER, 4WASHER, 4
