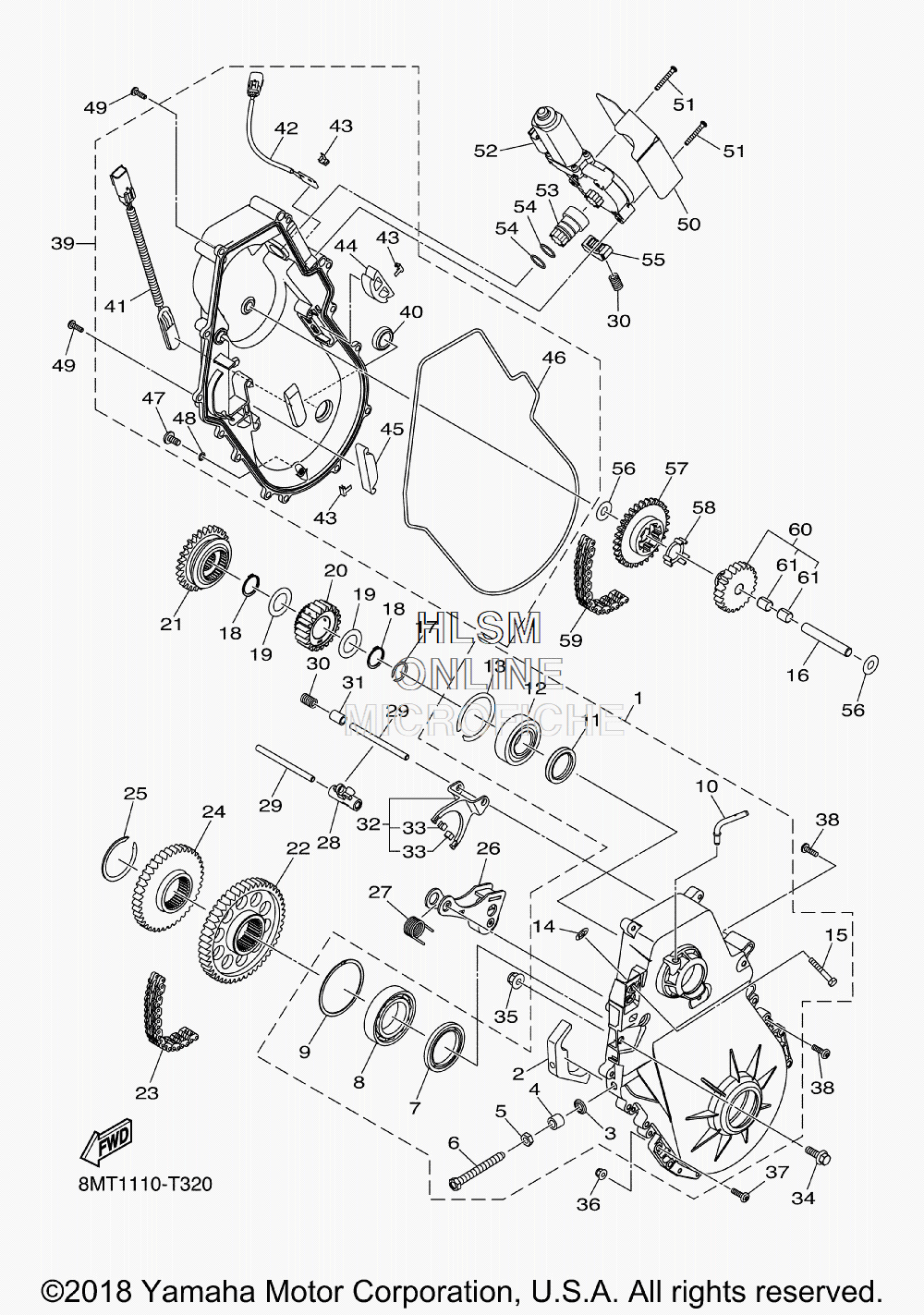

CHAINCASE ASSY для Yamaha SIDEWINDER M TX LE 162 - 2019 года выпуска
-
№АртикулНазвание
-
18MT-G754A-00-00 CHAIN CASE ASSYCHAIN CASE ASSY
-
28JP-G7516-00-00 ...PLATE, RATCHET...PLATE, RATCHET
-
390210-10004-00 ...WASHER, SEAL...WASHER, SEAL
-
48JP-RA716-00-00 ...COLLAR, 4...COLLAR, 4
-
58JP-RA366-00-00 ...NUT, HEXAGON...NUT, HEXAGON
-
68JP-RA1A8-00-00 ...BOLT, HEXAGON...BOLT, HEXAGON
-
78JP-RAE03-00-00 ...SEAL, OIL...SEAL, OIL
-
88JP-RAG05-00-00 ...BEARING...BEARING
-
98JP-RAH05-00-00 ...CIRCLIP (C-IN)...CIRCLIP (C-IN)
-
108JP-G7586-00-00 ...BREATHER...BREATHER
-
118JP-RAE01-00-00 ...SEAL, OIL...SEAL, OIL
-
128JP-RAG07-10-00 ...BEARING...BEARING
-
138JP-RAH06-00-00 ...CIRCLIP (C-IN)...CIRCLIP (C-IN)
-
148JP-RA347-00-00 ...NUT, SPRING...NUT, SPRING
-
158JP-RA1A9-00-00 ...BOLT, HEXAGON...BOLT, HEXAGON
-
168JP-E761A-00-00 SHAFT 1SHAFT 1
-
178JP-RAC04-00-00 CIRCLIP, 5CIRCLIP, 5
-
188JP-RAH11-00-00 CIRCLIP, 5CIRCLIP, 5
-
198JP-RA440-00-00 WASHERWASHER
-
208KC-E769A-11-00 DRIVE SPROCKET ASSYDRIVE SPROCKET ASSY
-
218JP-E7143-00-00 GEAR, REVERSE PINION 1GEAR, REVERSE PINION 1
-
228JP-G7587-20-00 SPROCKET, CHAIN DRIVENSPROCKET, CHAIN DRIVEN
-
238KC-RAM01-30-00 CHAIN, BWACHAIN, BWA
-
248MT-G7548-00-00 SPROCKET, CHAIN DRIVENSPROCKET, CHAIN DRIVEN
-
258JP-RAC03-00-00 CIRCLIP, 4CIRCLIP, 4
-
268JP-G7613-01-00 HOLDERHOLDER
-
278JP-RAD12-00-00 SPRING, 1SPRING, 1
-
288JP-E8112-00-00 ARM, SHIFTARM, SHIFT
-
298JP-E8125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
308JP-RAD13-00-00 SPRING, 2SPRING, 2
-
318JP-RA803-00-00 BUSH, 2BUSH, 2
-
328JP-E8501-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
338JP-G7614-00-00 ...SHOE...SHOE
-
348JP-RA185-00-00 BOLT, FLANGEBOLT, FLANGE
-
358JM-RA301-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
368JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
378JP-RA266-00-00 SCREWSCREW
-
388JP-RA283-00-00 SCREW, TAPPINGSCREW, TAPPING
-
398MT-G754B-00-00 HOUSING CAP ASSYHOUSING CAP ASSY
-
408JP-E5361-00-00 ...GAUGE, LEVEL...GAUGE, LEVEL
-
418JP-H5985-00-00 ...SENSOR, SPEED...SENSOR, SPEED
-
428JP-H5899-00-00 ...SENSOR, GEAR POSITION...SENSOR, GEAR POSITION
-
438JP-RAC12-00-00 ...CLIP, 3...CLIP, 3
-
448JP-E7468-00-00 ...GUIDE, CHAIN 2...GUIDE, CHAIN 2
-
458JP-E7467-00-00 ...GUIDE, CHAIN 1...GUIDE, CHAIN 1
-
468MT-G7558-00-00 RING, HOUSINGRING, HOUSING
-
478MT-RA247-00-00 ...SCREW...SCREW
-
488MT-RAF04-00-00 ...O-RING, 2...O-RING, 2
-
498KG-RA229-00-00 ...SCREW...SCREW
-
508KC-G613F-00-00 COVER 1COVER 1
-
518JP-RA247-00-00 SCREWSCREW
-
528JP-G616A-10-00 SERVO MOTOR COMPSERVO MOTOR COMP
-
538JP-E7848-10-00 ADAPTERADAPTER
-
548JP-RAF04-00-00 O-RING, 2O-RING, 2
-
558JP-E8128-00-00 BRACKETBRACKET
-
568JP-RA444-00-00 WASHERWASHER
-
578JP-E7692-00-00 SPROCKET, DRIVE (30T)SPROCKET, DRIVE (30T)
-
588JP-E8615-00-00 DAMPER, RUBBERDAMPER, RUBBER
-
598MT-RAM02-00-00 CHAIN, REXCHAIN, REX
-
608MT-E724A-00-00 REVERSE WHEEL ASSYREVERSE WHEEL ASSY
-
618JP-RA809-00-00 ...BUSH...BUSH
