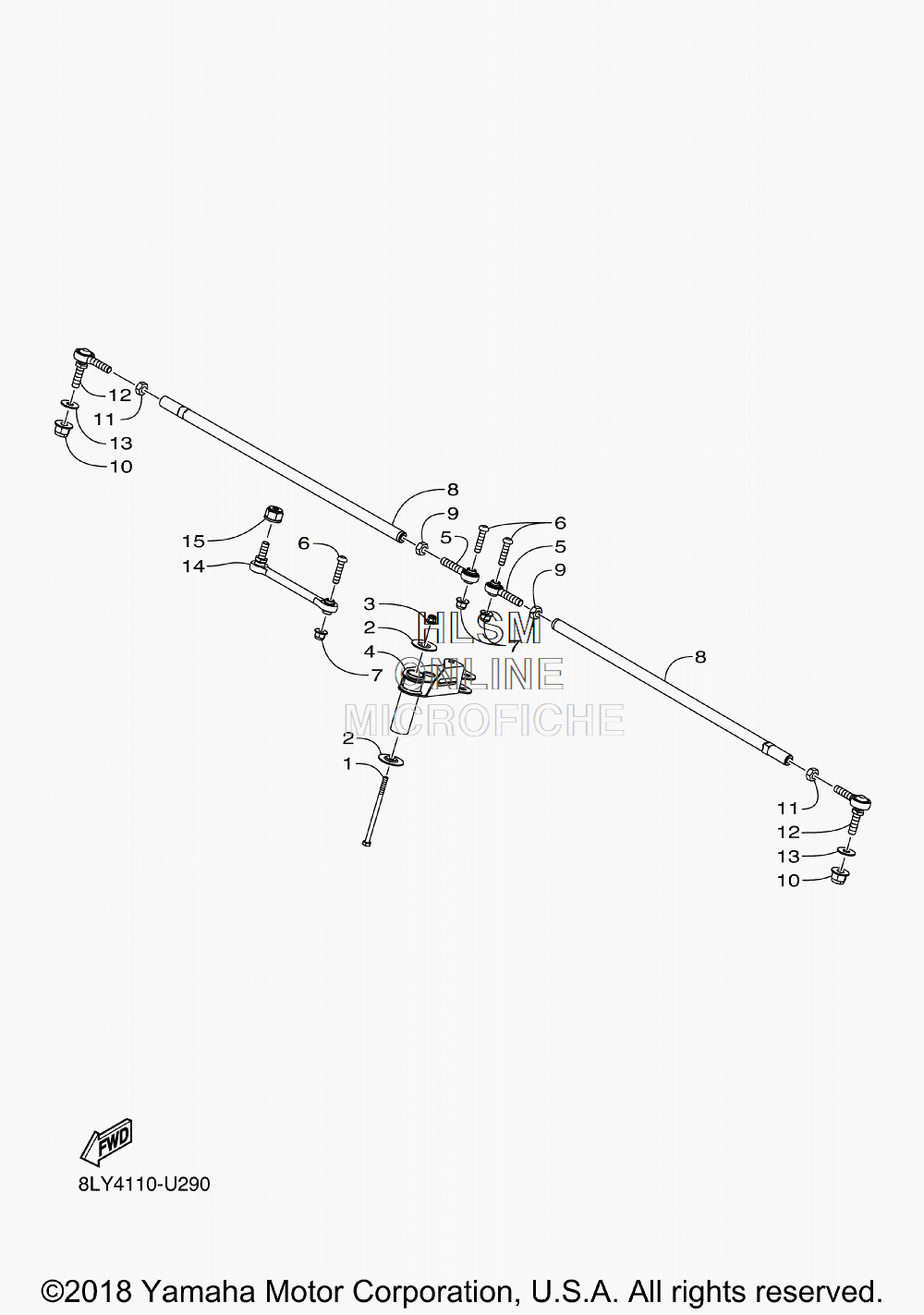

STEERING 3 для Yamaha SIDEWINDER X TX LE 141 - 2019 года выпуска
-
№АртикулНазвание
-
18JP-RA1B0-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
28JP-RA432-00-00 WASHER, 1WASHER, 1
-
38JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
48JP-F389G-00-00 ARM, PIVOTARM, PIVOT
-
58JP-F3845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
68JP-RA274-00-00 SCREWSCREW
-
78JM-RA301-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
88KR-F3831-00-00 ROD, TIEROD, TIE
-
98JP-RA369-00-00 NUT, HEXAGONNUT, HEXAGON
-
108JP-RA360-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118JP-RA368-00-00 NUT, HEXAGONNUT, HEXAGON
-
128JP-F3847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
138JP-RA454-00-00 WASHER, PLANEWASHER, PLANE
-
148JP-F3821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
158JP-RA371-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
