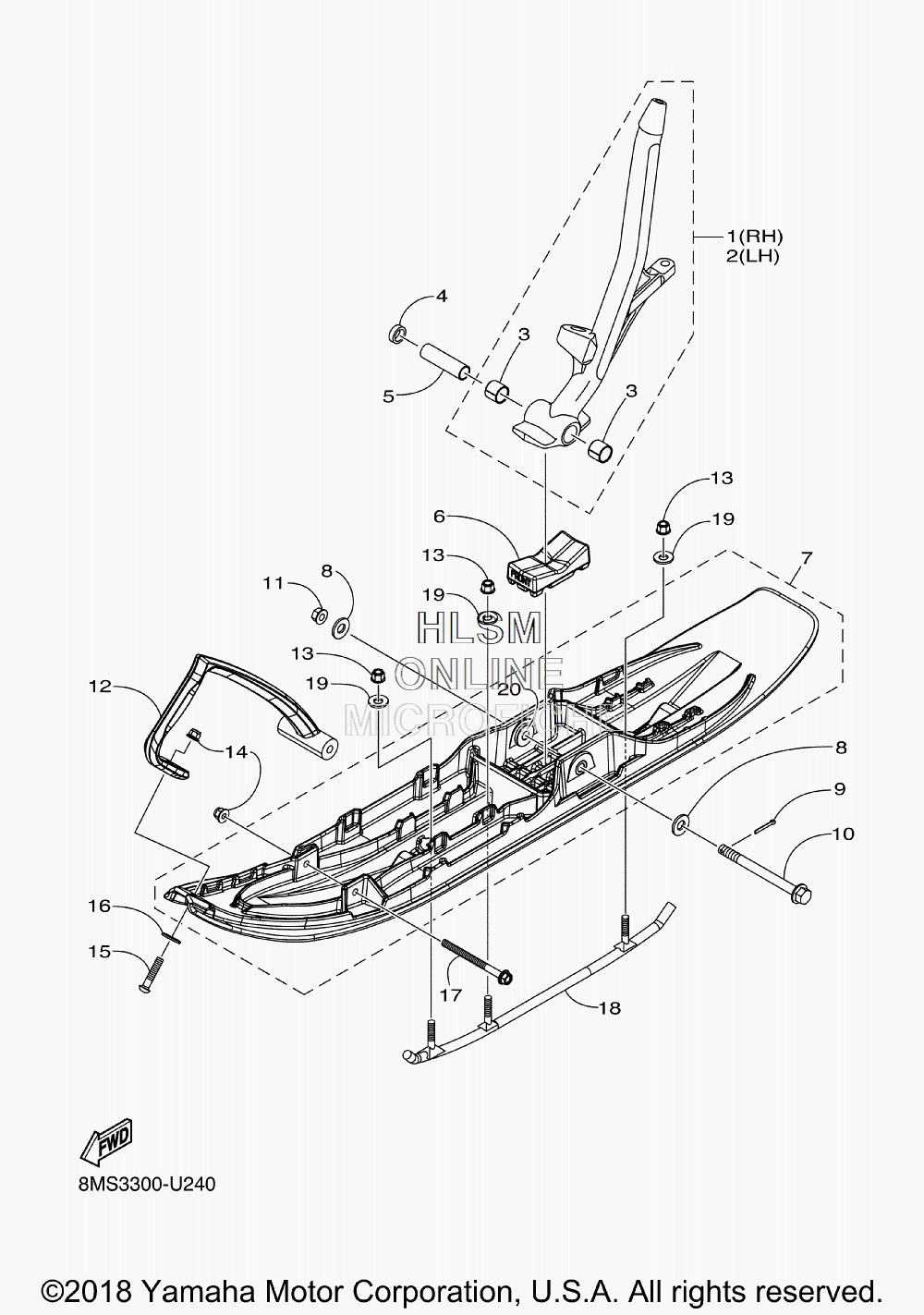

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SIDEWINDER X TX LE 141 - 2019 года выпуска
-
№АртикулНазвание
-
18KU-F3521-90-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
28KU-F3511-90-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
38JP-RA806-00-00 ...BUSH...BUSH
-
48JP-RA718-00-00 COLLAR, 6COLLAR, 6
-
58JP-RA731-00-00 COLLARCOLLAR
-
68KC-F3743-00-00 STOPPER 1STOPPER 1
-
78KC-F3710-10-00 SKI COMP 1SKI COMP 1
-
890201-10043-00 WASHER, PLATEWASHER, PLATE
-
991401-20020-00 PIN, COTTERPIN, COTTER
-
1090105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1195602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
128KC-F3712-30-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
138KC-RA358-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148KC-F3778-00-00 NUTNUT
-
158KC-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
168KC-F3737-00-00 WASHER 1WASHER 1
-
178KC-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
188KC-F3732-00-00 RUNNER 2RUNNER 2
-
198KC-RA443-00-00 WASHERWASHER
-
208EX-F3754-00-00 ...COLLAR 1 (IN 7)...COLLAR 1 (IN 7)
