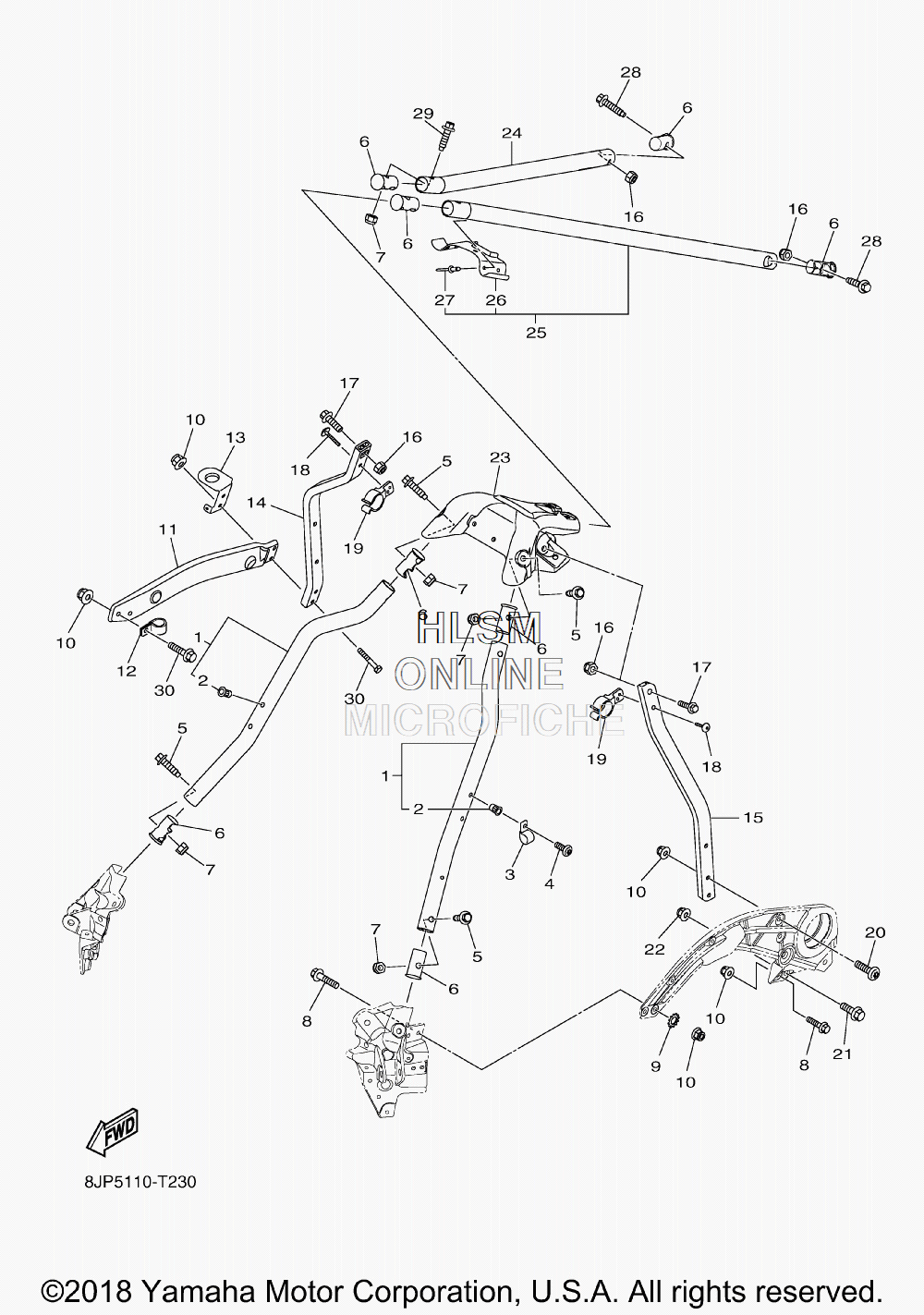

HANDLEBAR PAD W/ STEERING GATE для Yamaha SRVIPER L TX - 2019 года выпуска
-
№АртикулНазвание
-
18JP-F119A-10-00 PIPE, CROSS 6PIPE, CROSS 6
-
28JP-RA331-00-00 ...NUT, HEXAGON...NUT, HEXAGON
-
38JP-RAB07-00-00 CLAMP, 5CLAMP, 5
-
48JP-RA251-00-00 SCREWSCREW
-
58JP-RA297-00-00 SCREW, 8SCREW, 8
-
68JP-F111A-10-00 CAP, MAIN PIPECAP, MAIN PIPE
-
78JP-RA371-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
88JP-RA182-00-00 BOLT, FLANGE M6X1.0X25BOLT, FLANGE M6X1.0X25
-
98JM-RA407-00-00 WASHER, TOOTHED LOCKWASHER, TOOTHED LOCK
-
108JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
118JP-F1113-10-00 GUSSETGUSSET
-
128JP-RAB05-00-00 CLAMP, 3CLAMP, 3
-
138JP-F112K-00-00 BRACKET 5BRACKET 5
-
148JP-F111J-00-00 MEMBER, SIDE 1MEMBER, SIDE 1
-
158JP-F111K-00-00 MEMBER, SIDE 2MEMBER, SIDE 2
-
168JP-RA372-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
178JP-RA185-00-00 BOLT, FLANGEBOLT, FLANGE
-
188KC-RA288-00-00 SCREW, TAPPINGSCREW, TAPPING
-
198JP-F11C2-00-00 CLIPCLIP
-
208JP-RA266-00-00 SCREWSCREW
-
218JM-RA102-00-00 BOLT, FLANGEBOLT, FLANGE
-
228JM-RA301-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
238JP-F3871-10-00 GATE, STEERINGGATE, STEERING
-
248JP-F119E-10-00 PIPE, CROSS, 7PIPE, CROSS, 7
-
258JP-F119F-10-00 PIPE CROSS 8PIPE CROSS 8
-
268JP-F114H-00-00 ...SUPPORT, SEAT...SUPPORT, SEAT
-
278JP-RA514-10-00 ...RIVET, 5...RIVET, 5
-
288JP-RA187-00-00 BOLT, FLANGEBOLT, FLANGE
-
298JP-RA197-00-00 BOLT, FLANGEBOLT, FLANGE
-
308JP-RA183-00-00 BOLT, FLANGEBOLT, FLANGE
