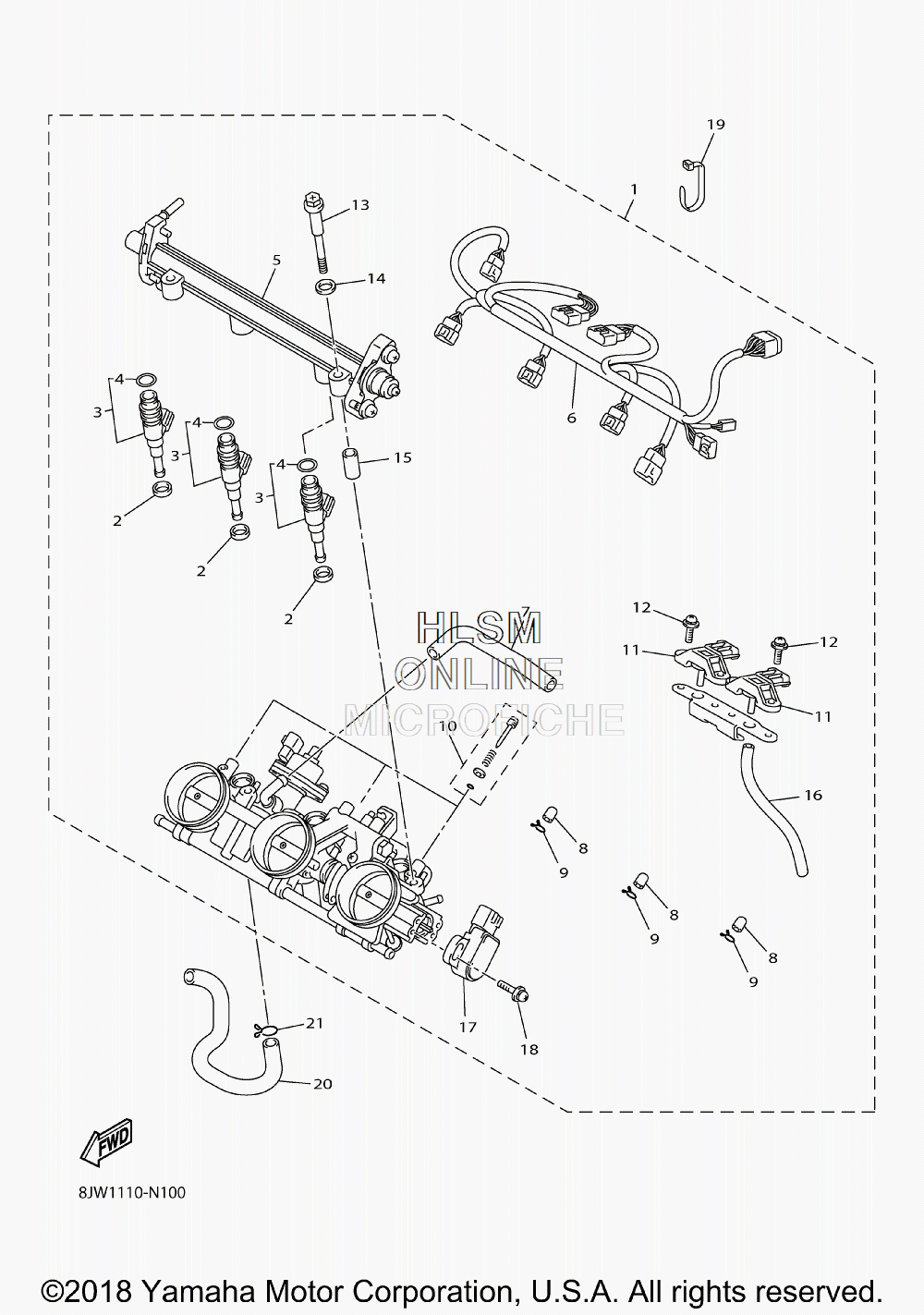

THROTTLE BODY ASSY для Yamaha SRVIPER L TX - 2019 года выпуска
-
№АртикулНазвание
-
18JK-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
38GC-13761-00-00 ...INJECTOR...INJECTOR
-
48GC-13769-00-00 ......O-RING......O-RING
-
58GL-13930-00-00 ...PIPE INLET ASSEMBLY...PIPE INLET ASSEMBLY
-
68GL-82386-01-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
78GL-13895-00-00 ...HOSE, AIR...HOSE, AIR
-
8895-14169-00-00 ...CAP...CAP
-
98A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
108GL-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
112C0-82380-10-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
128GL-14592-00-00 ...SCREW...SCREW
-
138GL-13573-00-00 ...BOLT 1...BOLT 1
-
148GL-13571-00-00 ...WASHER...WASHER
-
158GL-14534-00-00 ...COLLAR...COLLAR
-
165PW-14349-00-00 ...PIPE...PIPE
-
178GL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
188CC-14216-10-00 ...SCREW...SCREW
-
198JP-RAB04-00-00 CLAMP 2 (11.5 INCH) (OPT)CLAMP 2 (11.5 INCH) (OPT)
-
198JM-RAB01-00-00 CLAMP 2 (8 INCH) (OPT)CLAMP 2 (8 INCH) (OPT)
-
208JP-E3545-00-00 HOSE 1HOSE 1
-
218JP-RAB26-00-00 CLAMP 24CLAMP 24
