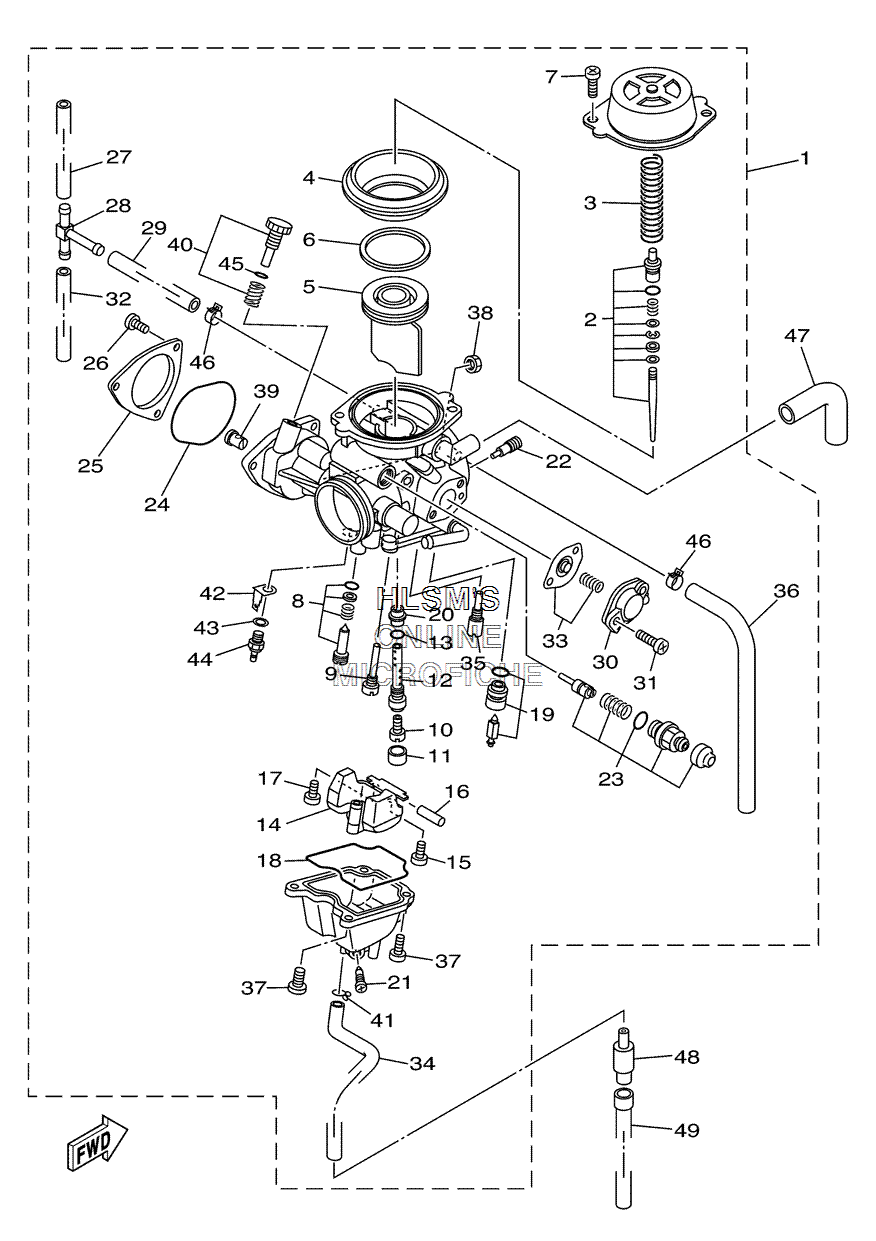

CARBURETOR ASSY. для Yamaha RHINO 660 4WD - 2006 года выпуска
-
№АртикулНазвание
-
15UG-14901-10-00 CARBURETOR ASSY. 1CARBURETOR ASSY. 1
-
25UG-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
34KM-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
45KM-24411-00-00 ...DIAPHRAGM...DIAPHRAGM
-
55KM-14912-00-00 ...VALVE, THROTTLE...VALVE, THROTTLE
-
65KM-14918-00-00 ...RING...RING
-
798507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
85EA-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
93G2-14231-11-00 ...JET, POWER (#55)...JET, POWER (#55)
-
103G2-14231-29-00 ...JET, MAIN (#145)...JET, MAIN (#145)
-
115GH-14918-00-00 ...RING...RING
-
125GH-14261-00-00 ...HOLDER...HOLDER
-
13583-14561-00-00 ...O-RING...O-RING
-
145DM-14985-00-00 ...FLOAT...FLOAT
-
1598507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
16127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
171FN-14565-00-00 ...SCREW...SCREW
-
185DM-14561-00-00 ...O-RING...O-RING
-
195KM-14190-23-00 ...NEEDLE VALVE ASSY....NEEDLE VALVE ASSY.
-
205DM-1414M-30-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
2112R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
221HX-14231-12-00 ...JET, MAIN (#60)...JET, MAIN (#60)
-
235KM-1410A-00-00 ...STARTER SET...STARTER SET
-
244WV-14147-10-00 ...O-RING...O-RING
-
255UG-14293-00-00 ...COVER 1...COVER 1
-
2698507-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
275GJ-14197-00-00 ...PIPE...PIPE
-
2828V-14988-00-00 ...PIPE, STARTER CONNECTING...PIPE, STARTER CONNECTING
-
293CF-14197-00-00 ...PIPE...PIPE
-
305AP-14280-00-00 ...COVER, CARBURETOR...COVER, CARBURETOR
-
3197607-04114-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
325KM-14197-10-00 ...PIPE...PIPE
-
335KM-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
3431A-14197-00-00 ...PIPE...PIPE
-
354KM-14142-40-00 ...JET, PILOT (#40)...JET, PILOT (#40)
-
365UG-14197-00-00 ...PIPE...PIPE
-
3798507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
38522-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
391UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
405UG-14103-10-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
4155X-14937-00-00 ...CLIP...CLIP
-
425FU-82103-00-00 ...TERMINAL 1...TERMINAL 1
-
4390201-08016-00 ...WASHER, PLATE...WASHER, PLATE
-
445FU-83790-00-00 ...HEATER ASSY. (15W)...HEATER ASSY. (15W)
-
452H0-14147-00-00 ...O-RING...O-RING
-
464BP-14139-01-00 ...CLIP, PIPE...CLIP, PIPE
-
474WV-14349-00-00 PIPEPIPE
-
4824W-14193-00-00 PIPEPIPE
-
4991A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
