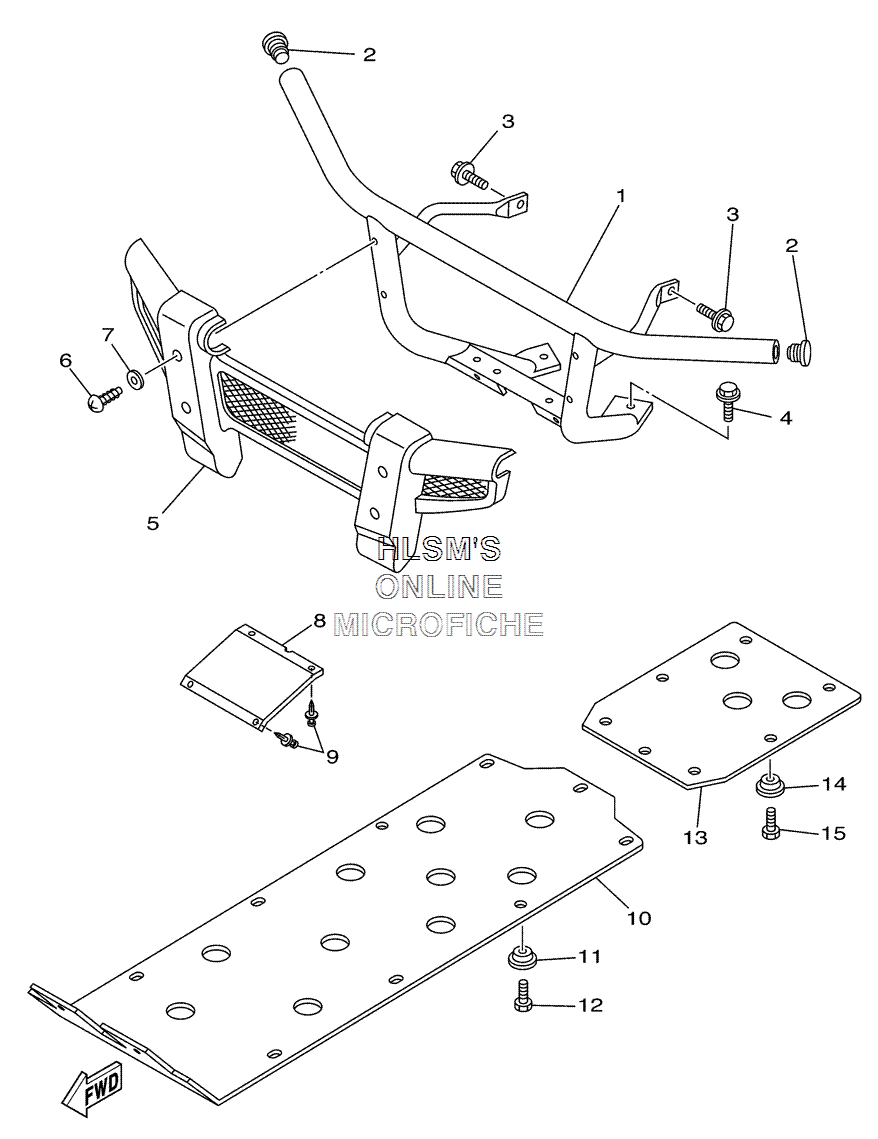

GUARD для Yamaha RHINO 660 4WD - 2006 года выпуска
-
№АртикулНазвание
-
12P5-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
25UG-F2417-00-00 PLUGPLUG
-
395817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
49581P-12025-00 BOLT, FLANGEBOLT, FLANGE
-
55UG-F842A-00-00 COVER 5COVER 5
-
695817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790201-06055-00 WASHER, PLATEWASHER, PLATE
-
85UG-F835L-00-00 COVER, COOLERCOVER, COOLER
-
990269-06800-00 RIVETRIVET
-
102P5-F8385-00-00 COVER, LOWERCOVER, LOWER
-
115UG-F8329-00-00 SPACERSPACER
-
1290105-06832-00 BOLT, FLANGEBOLT, FLANGE
-
135UG-F8395-00-00 COVER, UNDERCOVER, UNDER
-
145UG-F8329-00-00 SPACERSPACER
-
1590105-06832-00 BOLT, FLANGEBOLT, FLANGE
