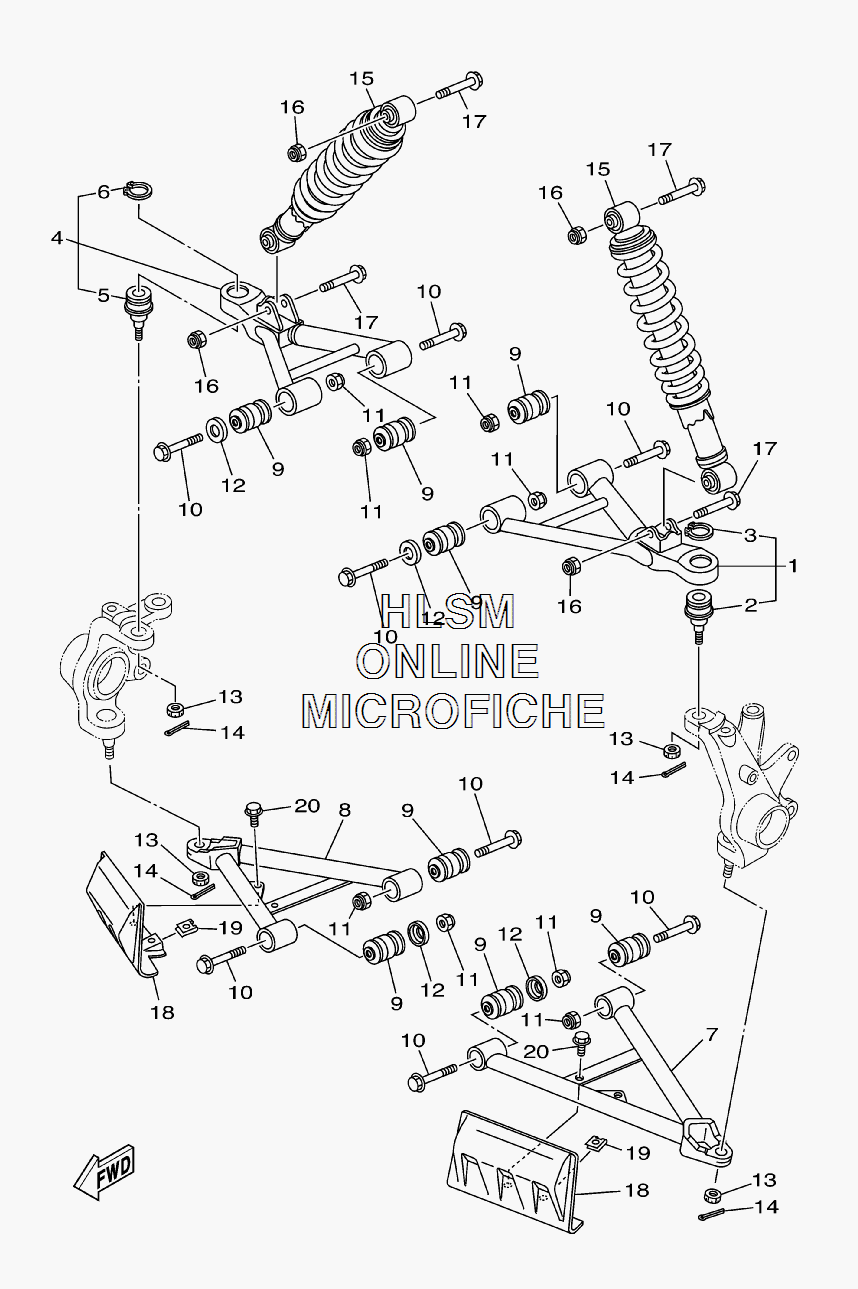

SUSPENSION - FRONT WHEEL для Yamaha RHINO 450 HUNTER - 2007 года выпуска
-
№АртикулНазвание
-
15UG-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
25FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
393410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
45UG-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
55FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
693410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
75UG-F357A-00-00 ARM, FRONT LOWER LH.ARM, FRONT LOWER LH.
-
85UG-F358A-00-00 ARM, FRONT LOWER RH.ARM, FRONT LOWER RH.
-
95KM-23526-00-00 BUSHBUSH
-
1090105-10253-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1190185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
125KM-22149-00-00 WASHERWASHER
-
1390171-12039-00 NUT, CASTLENUT, CASTLE
-
1491401-25020-00 PIN, COTTERPIN, COTTER
-
155UG-F3350-01-00 SHOCK ABSORBER ASSY (BLACK)SHOCK ABSORBER ASSY (BLACK)
-
1690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790105-108B1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
185UG-F3123-00-00 COVER, LOWER 1COVER, LOWER 1
-
1990183-06053-00 NUT, SPRINGNUT, SPRING
-
2095807-06012-00 BOLT, FLANGEBOLT, FLANGE
