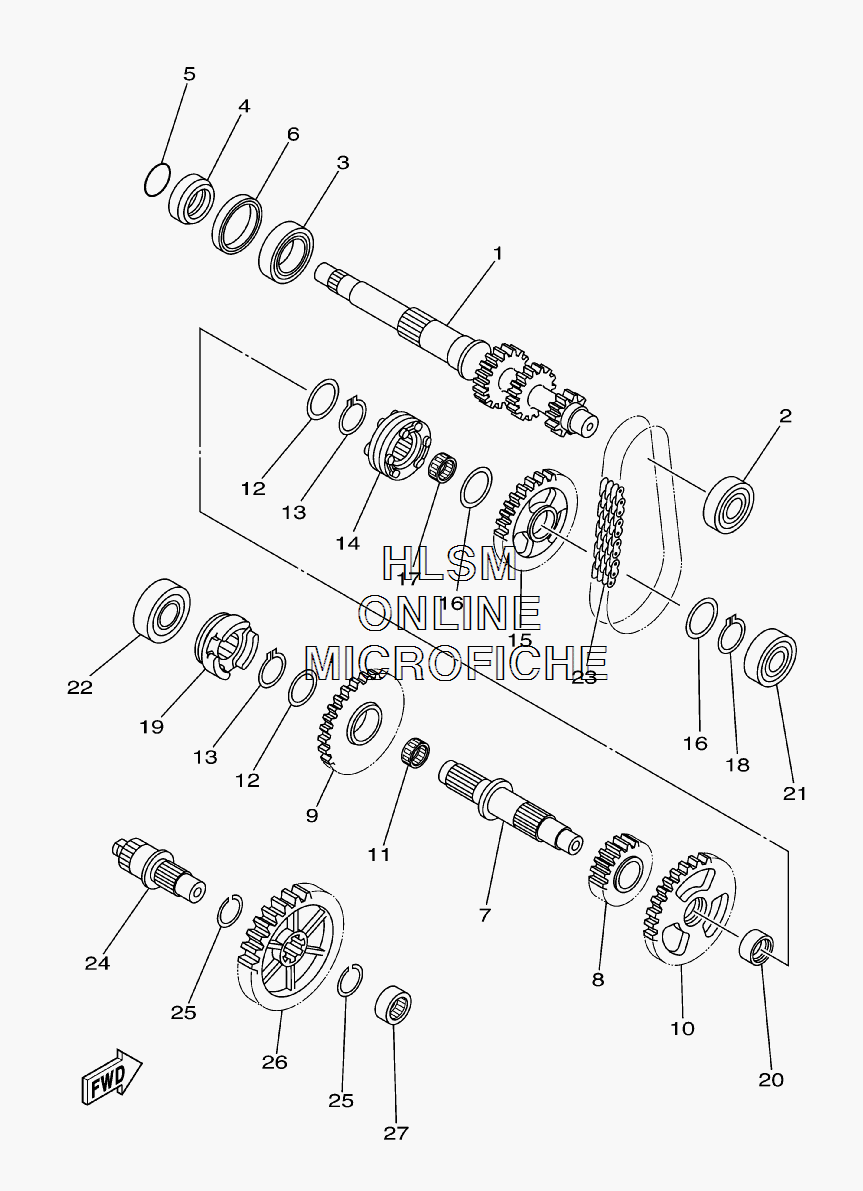

TRANSMISSION для Yamaha RHINO 450 HUNTER - 2007 года выпуска
-
№АртикулНазвание
-
12P5-17681-00-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-00415-00 BEARINGBEARING
-
393306-20601-00 BEARINGBEARING
-
490387-26001-00 COLLARCOLLAR
-
593210-26001-00 O-RINGO-RING
-
693102-42004-00 OIL SEALOIL SEAL
-
75GH-17402-01-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
82P5-17582-00-00 GEAR, MIDDLE DRIVE (20T)GEAR, MIDDLE DRIVE (20T)
-
92P5-17223-00-00 GEAR, HIGH WHEEL (39T)GEAR, HIGH WHEEL (39T)
-
102P5-17233-00-00 GEAR, LOW WHEEL (43T)GEAR, LOW WHEEL (43T)
-
1193310-32590-00 BEARINGBEARING
-
1290201-250R9-00 WASHER, PLATEWASHER, PLATE
-
1393440-25084-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
145GT-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
152P5-17453-00-00 SPROCKET, DRIVEN (30T)SPROCKET, DRIVEN (30T)
-
1690201-20278-00 WASHER, PLATEWASHER, PLATE
-
1793310-420F2-00 BEARING, CYL.#10BEARING, CYL.#10
-
1893410-20038-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
191D9-17286-00-00 HOLDERHOLDER
-
2090387-25013-00 COLLARCOLLAR
-
2193306-30201-00 BEARINGBEARING
-
2293306-20464-00 BEARINGBEARING
-
2394591-54038-00 CHAIN (23RH302-38 ASM)CHAIN (23RH302-38 ASM)
-
245ND-17523-00-00 SHAFTSHAFT
-
2593440-25084-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
262P5-17583-00-00 GEAR, MIDDLE DRIVEN (43T)GEAR, MIDDLE DRIVEN (43T)
-
2793311-42077-00 BEARINGBEARING
