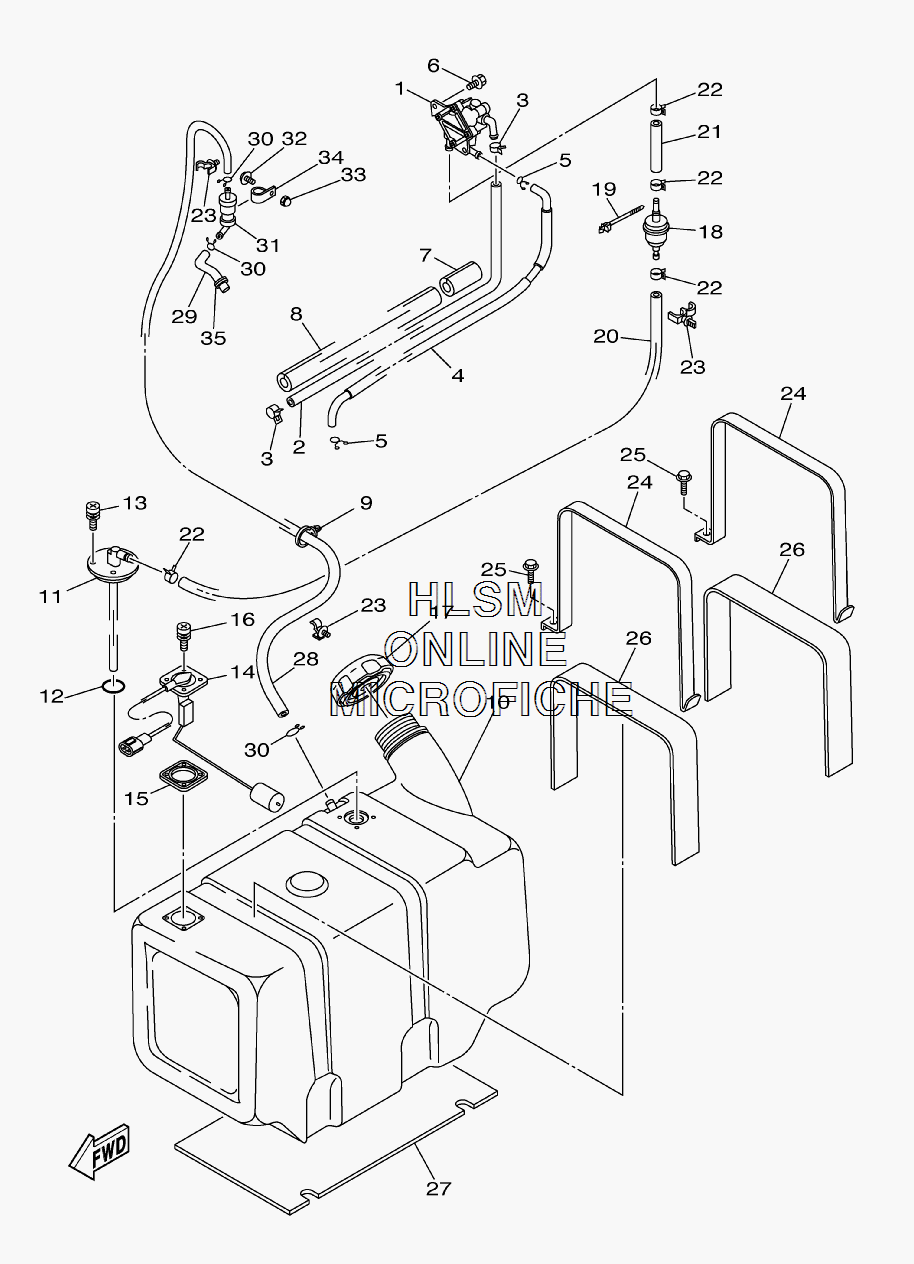

FUEL TANK для Yamaha RHINO 450 SE-BLUE - 2007 года выпуска
-
№АртикулНазвание
-
15UG-13910-00-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
22P5-E4295-00-00 PIPE, FUELPIPE, FUEL
-
390467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
42P5-E3895-00-00 HOSE, AIRHOSE, AIR
-
590467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
695022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
75UG-14271-00-00 INSULATORINSULATOR
-
85UG-14271-50-00 INSULATORINSULATOR
-
990464-25826-00 CLAMPCLAMP
-
105UG-F4111-10-00 TANK, FUELTANK, FUEL
-
112P5-F4300-10-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
1293210-228C4-00 O-RINGO-RING
-
1390119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
145UG-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
155G3-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
1690119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
172P5-24610-00-00 CAP ASSYCAP ASSY
-
18JN6-F4560-00-00 FILTER ASSYFILTER ASSY
-
1990464-38800-00 CLAMPCLAMP
-
205UG-F4311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
215UG-F4313-00-00 PIPE 3PIPE 3
-
2290467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
2390464-12830-00 CLAMPCLAMP
-
245UG-F4157-00-00 STAY, FUEL TANK 1STAY, FUEL TANK 1
-
2590105-08879-00 BOLT, FLANGEBOLT, FLANGE
-
265UG-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
275UG-F414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
285UG-F4312-00-00 PIPE 2PIPE 2
-
295UG-F4314-00-00 PIPE 4PIPE 4
-
3090467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
315RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
3298907-05010-00 SCREW, BINDSCREW, BIND
-
3390176-05054-00 NUT, CROWNNUT, CROWN
-
3490461-15139-00 CLAMPCLAMP
-
3590480-15058-00 GROMMETGROMMET
