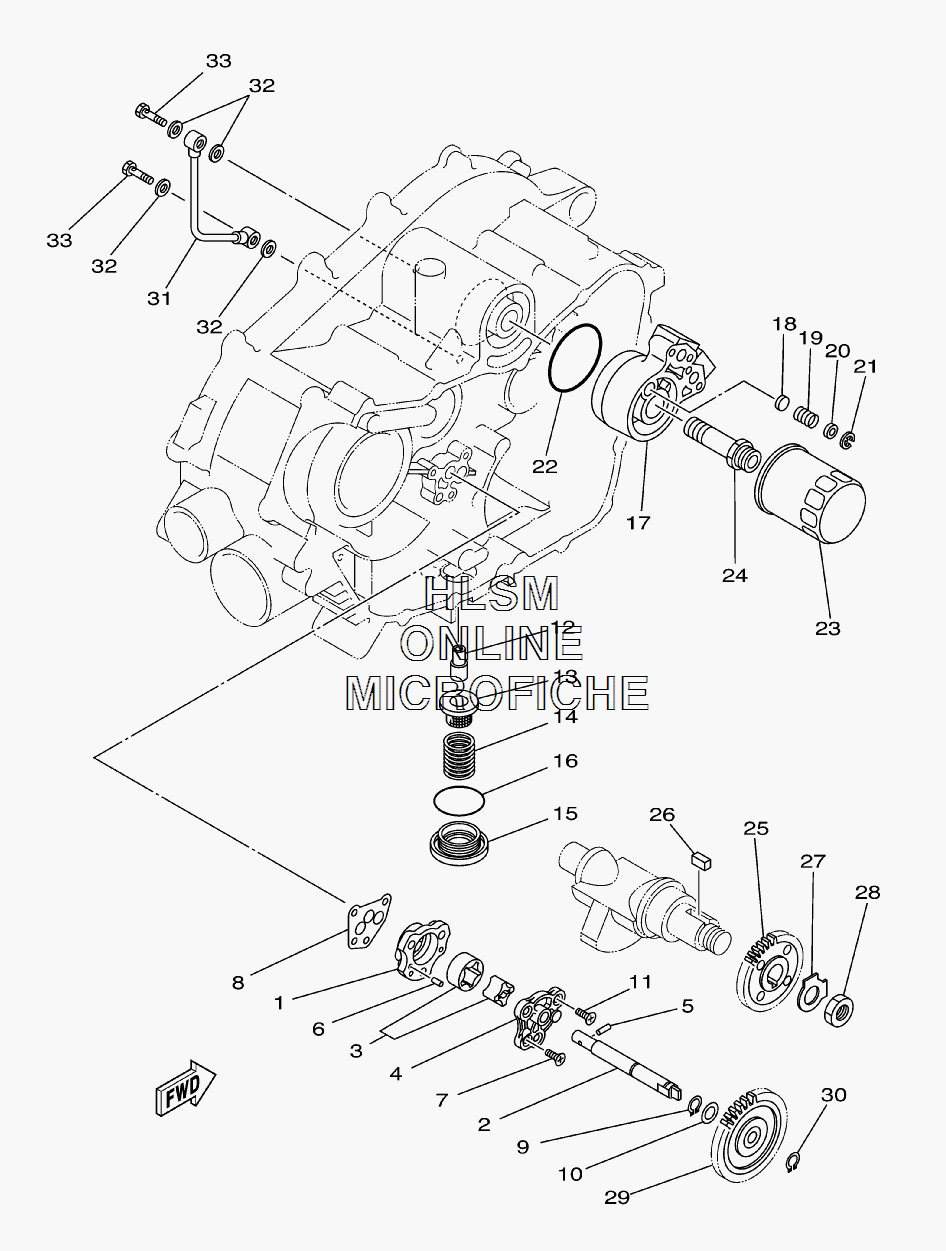

OIL PUMP для Yamaha RHINO 450 SE-BLUE - 2007 года выпуска
-
№АртикулНазвание
-
11UY-13336-00-00 HOUSING, ROTORHOUSING, ROTOR
-
25GH-13314-00-00 SHAFT, PUMPSHAFT, PUMP
-
33Y1-13310-01-00 ROTOR ASSY 1ROTOR ASSY 1
-
41UY-13316-00-00 COVER, PUMPCOVER, PUMP
-
593603-12030-00 PIN, DOWELPIN, DOWEL
-
693603-07073-00 PIN, DOWELPIN, DOWEL
-
798702-06020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
83GD-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
999009-11400-00 CIRCLIPCIRCLIP
-
1090201-114P2-00 WASHER, PLATE (1.0)WASHER, PLATE (1.0)
-
1198702-06030-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
122XK-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
1351Y-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1490501-18576-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
154HC-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
1693210-35520-00 O-RINGO-RING
-
175UG-13461-00-00 PLATE, ADAPTORPLATE, ADAPTOR
-
181YW-13497-00-00 PLUGPLUG
-
1990501-082E3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2092902-06600-00 WASHER, PLATEWASHER, PLATE
-
2193420-13073-00 CIRCLIPCIRCLIP
-
2293210-57428-00 O-RINGO-RING
-
235GH-13440-20-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
2490401-20162-00 BOLT, UNIONBOLT, UNION
-
255GH-13324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
2690282-05013-00 KEY, STRAIGHTKEY, STRAIGHT
-
2790215-14205-00 WASHER, LOCKWASHER, LOCK
-
2890170-14284-00 NUTNUT
-
295GH-13325-00-00 GEAR, PUMP DRIVENGEAR, PUMP DRIVEN
-
3099009-11400-00 CIRCLIPCIRCLIP
-
314KB-13161-01-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
3290430-08119-00 GASKETGASKET
-
3390401-08006-00 BOLT, UNIONBOLT, UNION
