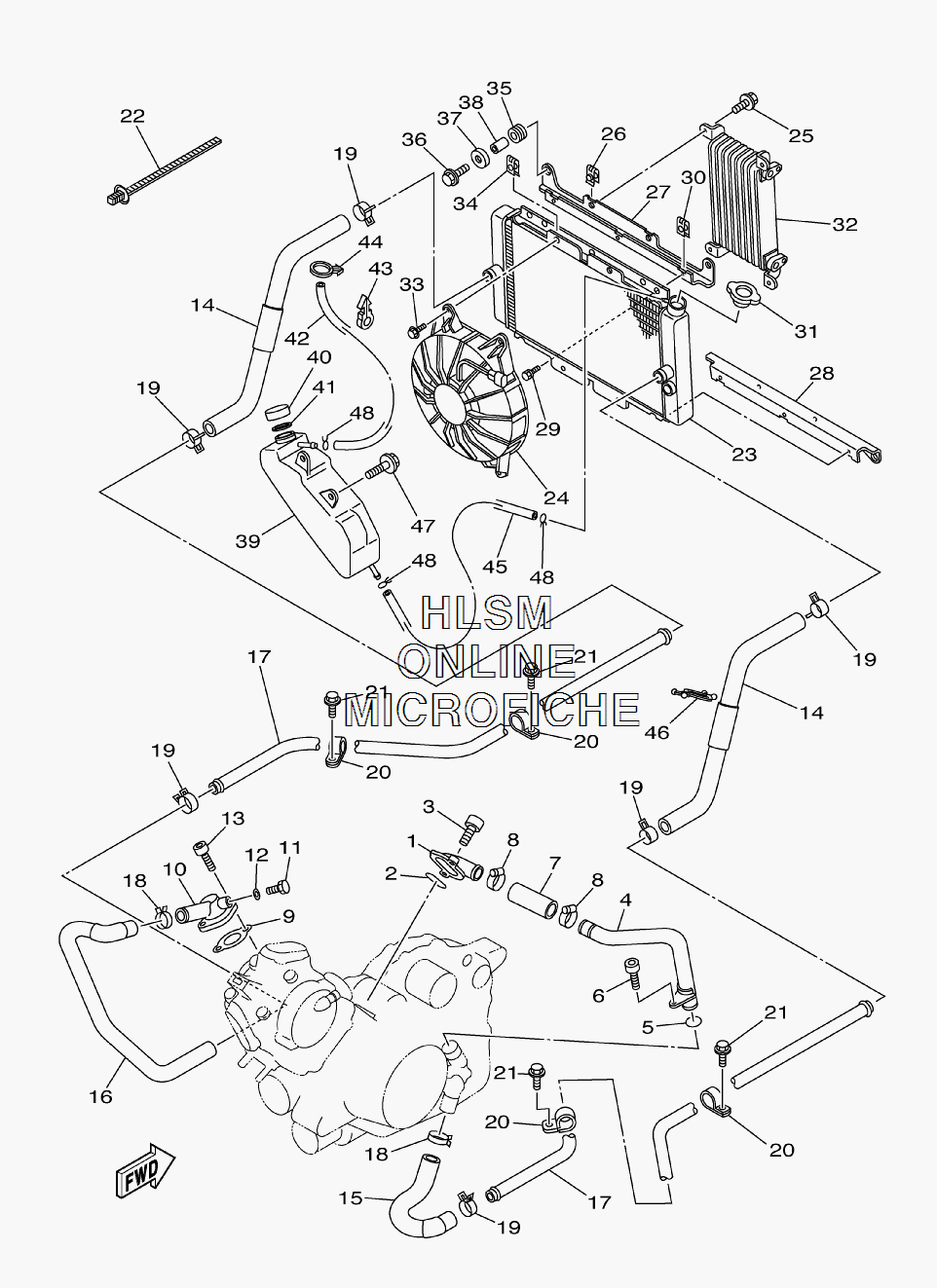

RADIATOR ASSY для Yamaha RHINO 450 HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
15GH-12446-00-00 JOINTJOINT
-
293210-33786-00 O-RINGO-RING
-
390110-06189-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
42P5-12484-00-00 PIPE 4PIPE 4
-
593210-18417-00 O-RINGO-RING
-
691312-06012-00 BOLTBOLT
-
75GH-12481-00-00 PIPE 1PIPE 1
-
890450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
92P5-12434-00-00 GASKETGASKET
-
102P5-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1190338-06041-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1290430-06014-00 GASKETGASKET
-
1391312-06020-00 BOLTBOLT
-
145UG-E2576-00-00 HOSE 1HOSE 1
-
152P5-E2577-00-00 HOSE 2HOSE 2
-
162P5-E2579-00-00 HOSE 4HOSE 4
-
175UG-E2564-00-00 PIPE, WATERPIPE, WATER
-
1890467-23177-00 CLIPCLIP
-
1990467-26189-00 CLIPCLIP
-
2090461-12800-00 CLAMPCLAMP
-
2190105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
2290464-20005-00 CLAMPCLAMP
-
235UG-E2461-00-00 RADIATOR ASSYRADIATOR ASSY
-
245UG-E2405-00-00 BLOWER ASSYBLOWER ASSY
-
255ND-E2675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
265ND-E2535-00-00 PLATEPLATE
-
275UG-E244E-01-00 BRACKET 1BRACKET 1
-
285UG-E244F-00-00 BRACKET 2BRACKET 2
-
295UG-E2623-00-00 BOLTBOLT
-
305ND-E2535-00-00 PLATEPLATE
-
315ND-E2462-00-00 CAP, RADIATORCAP, RADIATOR
-
325UG-E3470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
335ND-E2675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
345ND-E2535-00-00 PLATEPLATE
-
3590480-15235-00 GROMMETGROMMET
-
3690105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
3790209-06012-00 WASHERWASHER
-
3890387-06113-00 COLLARCOLLAR
-
395GS-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
4026H-21875-00-00 CAPCAP
-
4126H-21874-00-00 GASKETGASKET
-
4290445-08811-00 HOSE (L1020)HOSE (L1020)
-
4390464-10833-00 CLAMPCLAMP
-
4490464-19815-00 CLAMPCLAMP
-
4590445-08809-00 HOSE (L500)HOSE (L500)
-
4690464-29179-00 CLAMPCLAMP
-
4790119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4890467-08003-00 CLIPCLIP
