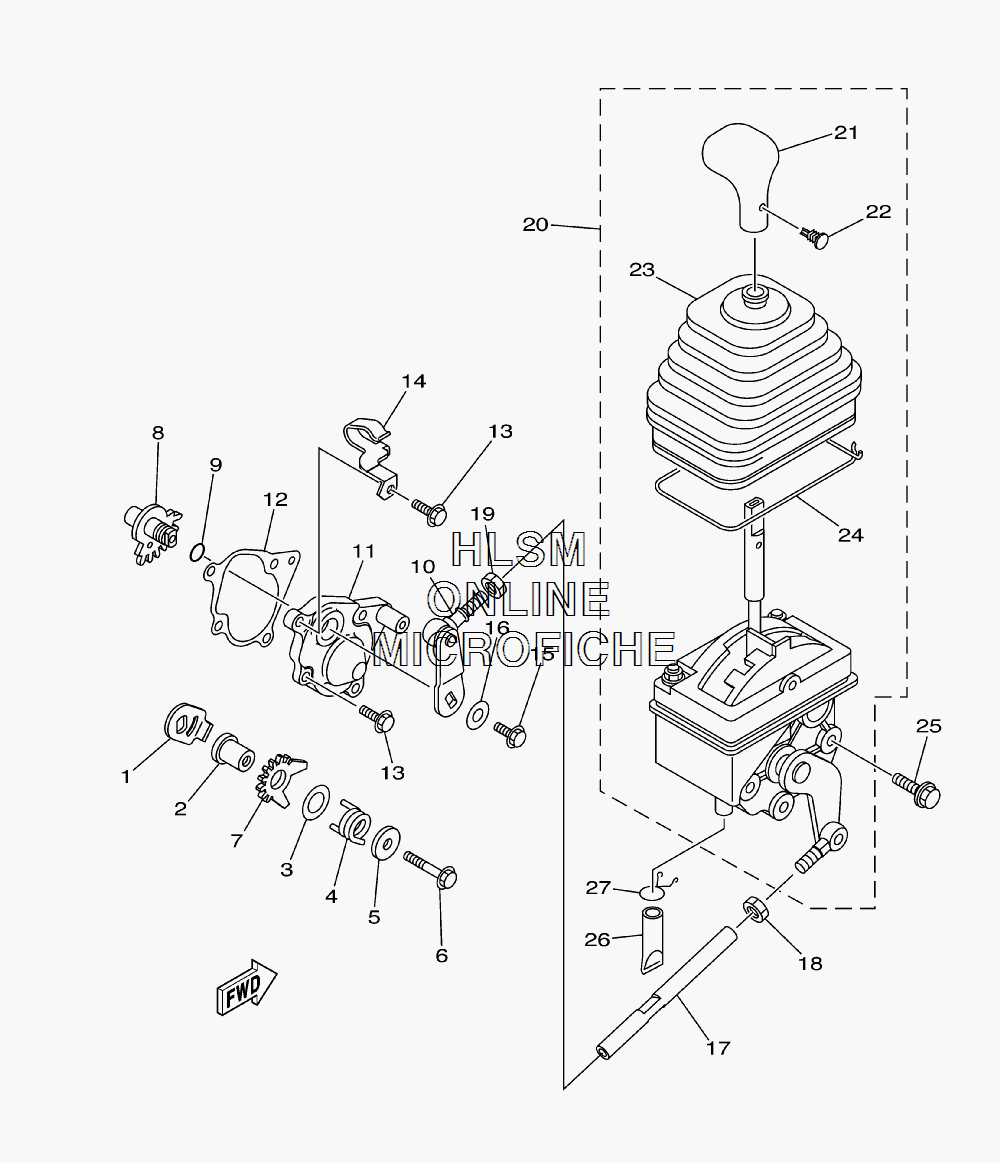

SHIFT SHAFT для Yamaha RHINO 450 HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
695812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
85GH-18197-00-00 SHAFTSHAFT
-
993210-11073-00 O-RINGO-RING
-
102P5-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
115GH-18129-01-00 COVER, SHIFT SHAFTCOVER, SHIFT SHAFT
-
125GH-18146-00-00 GASKETGASKET
-
1397080-06020-00 BOLT, W/WASHERBOLT, W/WASHER
-
1490465-08336-00 CLAMPCLAMP
-
1595812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-06036-00 WASHER, PLATEWASHER, PLATE
-
172P5-18115-10-00 ROD, SHIFTROD, SHIFT
-
1890170-08358-00 NUTNUT
-
1995302-08700-00 NUTNUT
-
205UG-18300-10-00 SHIFTER ASSYSHIFTER ASSY
-
215UG-18174-00-00 ...KNOB, SHIFT LEVER...KNOB, SHIFT LEVER
-
2290269-05055-00 ...RIVET, SPEC'L SHAPE...RIVET, SPEC'L SHAPE
-
235GH-18131-00-00 ...BOOT, SEALING...BOOT, SEALING
-
245GH-18617-00-00 ...STOPPER, RUBBER...STOPPER, RUBBER
-
2595802-08012-00 BOLT, FLANGEBOLT, FLANGE
-
264GY-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2790467-15012-00 CLIPCLIP
