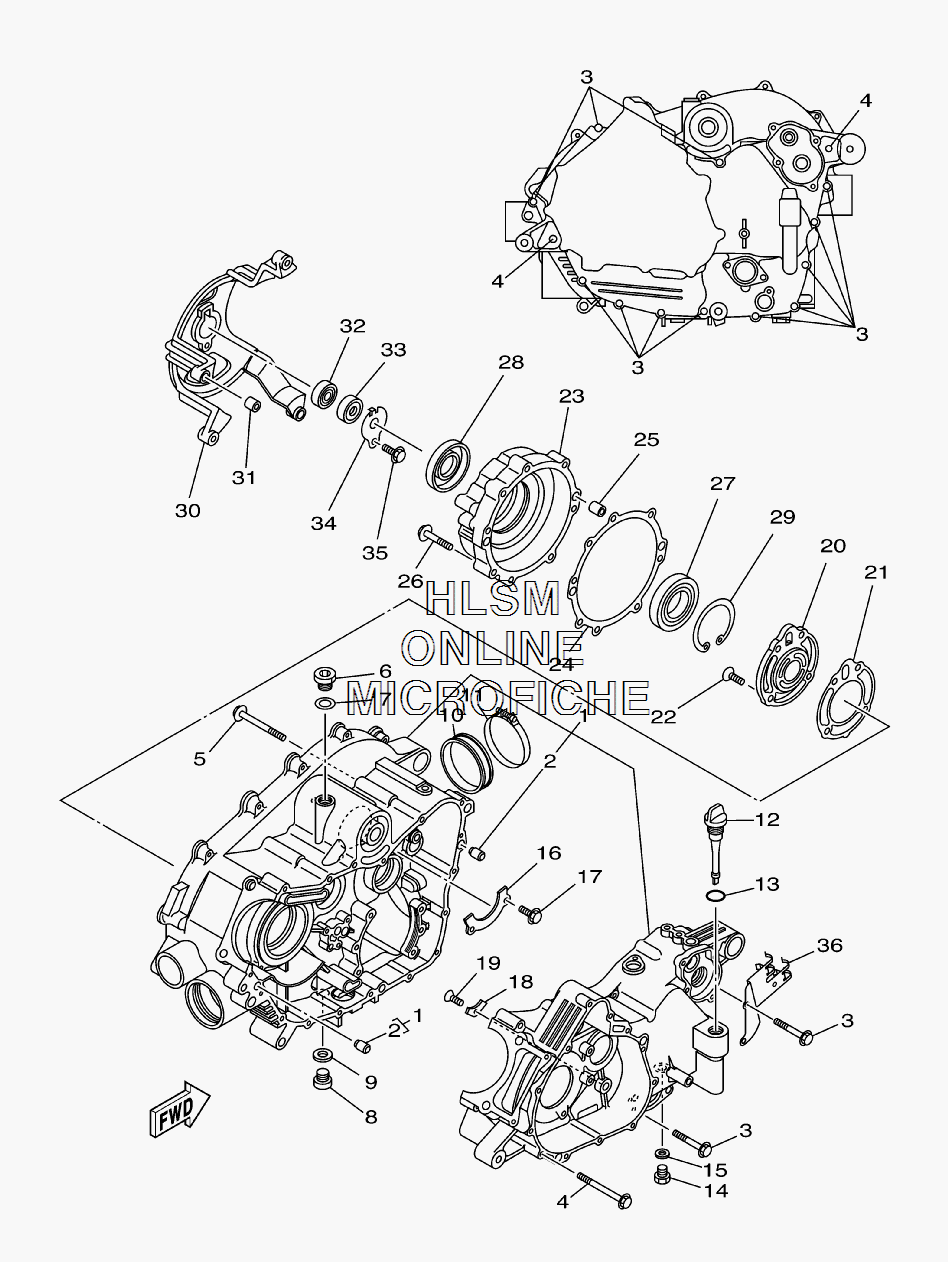

CRANKCASE для Yamaha RHINO 450 SPECIAL EDITION - 2008 года выпуска
-
№АртикулНазвание
-
12P5-15100-01-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10114-00 ...PIN, DOWEL...PIN, DOWEL
-
395022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
495022-06065-00 BOLT, FLANGEBOLT, FLANGE
-
595022-06065-00 BOLT, FLANGEBOLT, FLANGE
-
690340-18003-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
790430-18130-00 GASKETGASKET
-
890340-14002-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
9214-11198-01-00 GASKETGASKET
-
102P5-15189-00-00 PLUGPLUG
-
1190450-60005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
125GH-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1393210-19026-00 O-RINGO-RING
-
1490340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
15214-11198-01-00 GASKETGASKET
-
165GH-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1795822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
182K7-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1990151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
205GH-15414-00-00 COVER, AIR CLEANERCOVER, AIR CLEANER
-
215GH-15454-00-00 GASKET 1GASKET 1
-
2298702-06020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
235GH-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
245GH-15463-00-00 GASKET, COVER PINION 2GASKET, COVER PINION 2
-
2599530-10114-00 PIN, DOWELPIN, DOWEL
-
2695022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2793316-01003-00 BEARINGBEARING
-
2893102-32483-00 OIL SEALOIL SEAL
-
2999009-80500-00 CIRCLIPCIRCLIP
-
305GH-15442-01-00 HOUSING, BEARINGHOUSING, BEARING
-
3191810-20001-00 PIN, DOWELPIN, DOWEL
-
3293306-20120-00 BEARINGBEARING
-
3393101-12168-00 OIL SEALOIL SEAL
-
344WV-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3595022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
362P5-13487-00-00 GUIDE, OIL HOSEGUIDE, OIL HOSE
