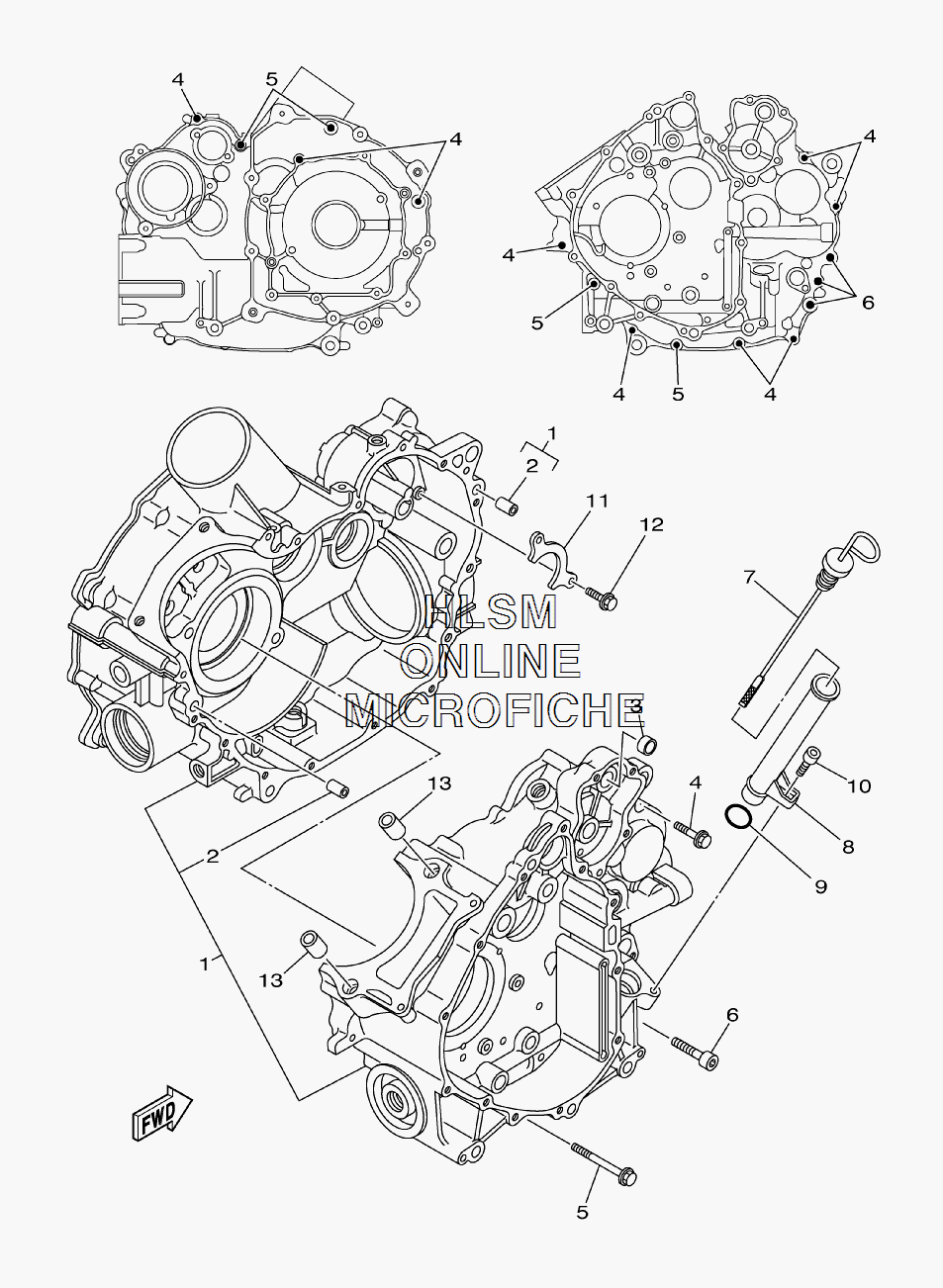

CRANKCASE для Yamaha RHINO 700 FI HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
13B4-15100-23-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
33B4-18581-00-00 SPACER, CAM SHAFTSPACER, CAM SHAFT
-
495022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
595022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
691312-08040-00 BOLTBOLT
-
75B4-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
85B4-15112-00-00 PIPE, OILPIPE, OIL
-
993210-21631-00 O-RINGO-RING
-
1091312-06012-00 BOLTBOLT
-
113B4-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1290105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
1399530-14016-00 PIN, DOWELPIN, DOWEL
