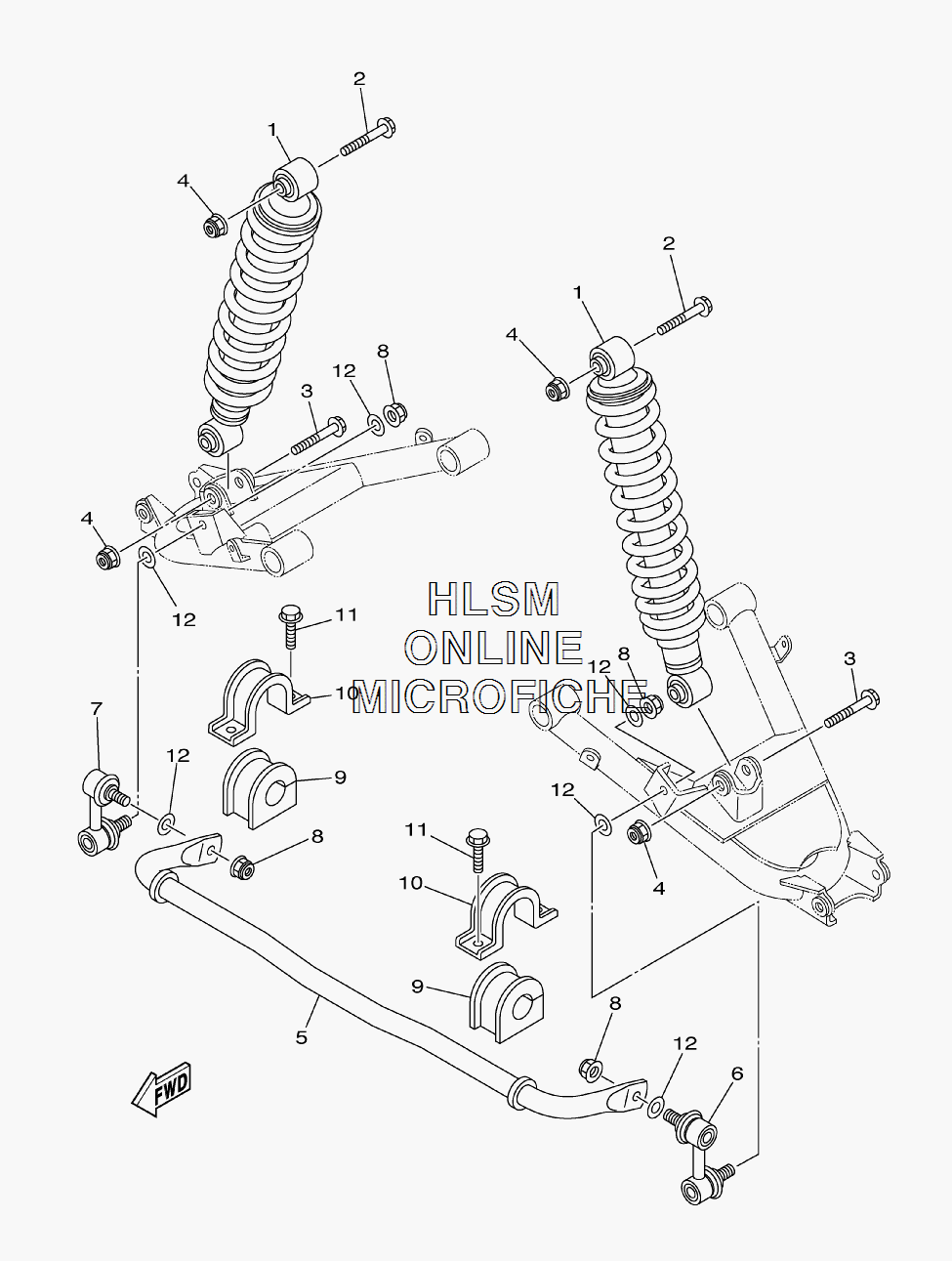

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RHINO 700 FI HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
15B4-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-12056-00 BOLT, FLANGEBOLT, FLANGE
-
390105-12055-00 BOLT, FLANGEBOLT, FLANGE
-
490185-12009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
55UG-G7491-00-00 BAR, STABILIZERBAR, STABILIZER
-
65KM-2385L-01-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
75KM-2385M-01-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
890185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
95UG-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
105UG-F386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1195812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-10035-00 WASHER, PLATEWASHER, PLATE
