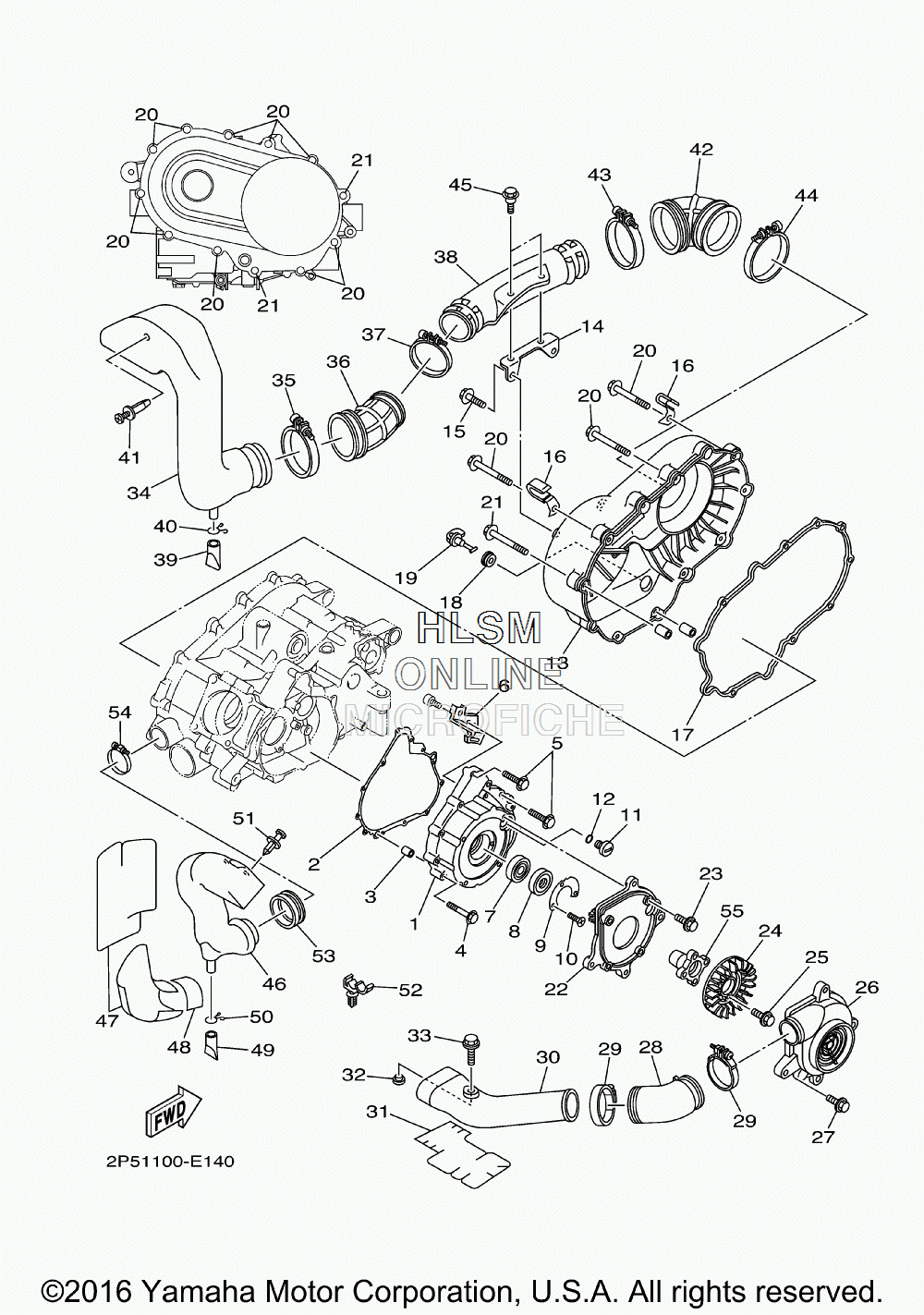

CRANKCASE COVER для Yamaha RHINO 450 (2P5G) [YXR45FYR] - 2009 года выпуска
-
№АртикулНазвание
-
15GH-15411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
25GH-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-10114-00 PIN, DOWELPIN, DOWEL
-
495022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
595022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
65GH-15113-00-00 PLATEPLATE
-
793306-07801-00 BEARINGBEARING
-
893102-28476-00 OIL SEALOIL SEAL
-
921V-15719-00-00 WASHER, THRUSTWASHER, THRUST
-
1090151-05023-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1190340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1293210-14369-00 O-RINGO-RING
-
132P5-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
142P5-15199-00-00 BRACKETBRACKET
-
1595822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1690462-10036-00 CLAMPCLAMP
-
175GH-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
1890480-13018-00 GROMMETGROMMET
-
195KM-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
2095822-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2195822-06045-00 BOLT, FLANGEBOLT, FLANGE
-
225UG-12653-00-00 AIR SHROUD, CYLINDER 3AIR SHROUD, CYLINDER 3
-
2395822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
242P5-12611-00-00 FANFAN
-
2595827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
265UG-12651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
2795822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
282P5-E2695-00-00 JOINT 1JOINT 1
-
2990450-64004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
305UG-E2691-00-00 DUCT, 1DUCT, 1
-
315UG-F1575-00-00 SEAL 1SEAL 1
-
3290179-06520-00 NUTNUT
-
3395822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
342P5-E5471-00-00 DUCT, AIRDUCT, AIR
-
352P5-F1823-00-00 CLAMP, HOSECLAMP, HOSE
-
362P5-E5474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
373C2-F1823-00-00 CLAMP, HOSECLAMP, HOSE
-
382P5-E5475-00-00 DUCT, AIRDUCT, AIR
-
395BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
4090467-160A4-00 CLIPCLIP
-
4190269-06800-00 RIVETRIVET
-
422P5-E5379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
4390450-75002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4490450-85002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4590109-06172-00 BOLTBOLT
-
462P5-E5473-00-00 DUCT, AIRDUCT, AIR
-
472P5-E5491-00-00 PROTECTORPROTECTOR
-
482P5-E5494-00-00 SEAL, PROTECTORSEAL, PROTECTOR
-
495BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
5090467-160A4-00 CLIPCLIP
-
5190269-06800-00 RIVETRIVET
-
5290464-12830-00 CLAMPCLAMP
-
532P5-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
5490450-64004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
552P5-15777-00-00 BOSS, STARTER PULLEYBOSS, STARTER PULLEY
