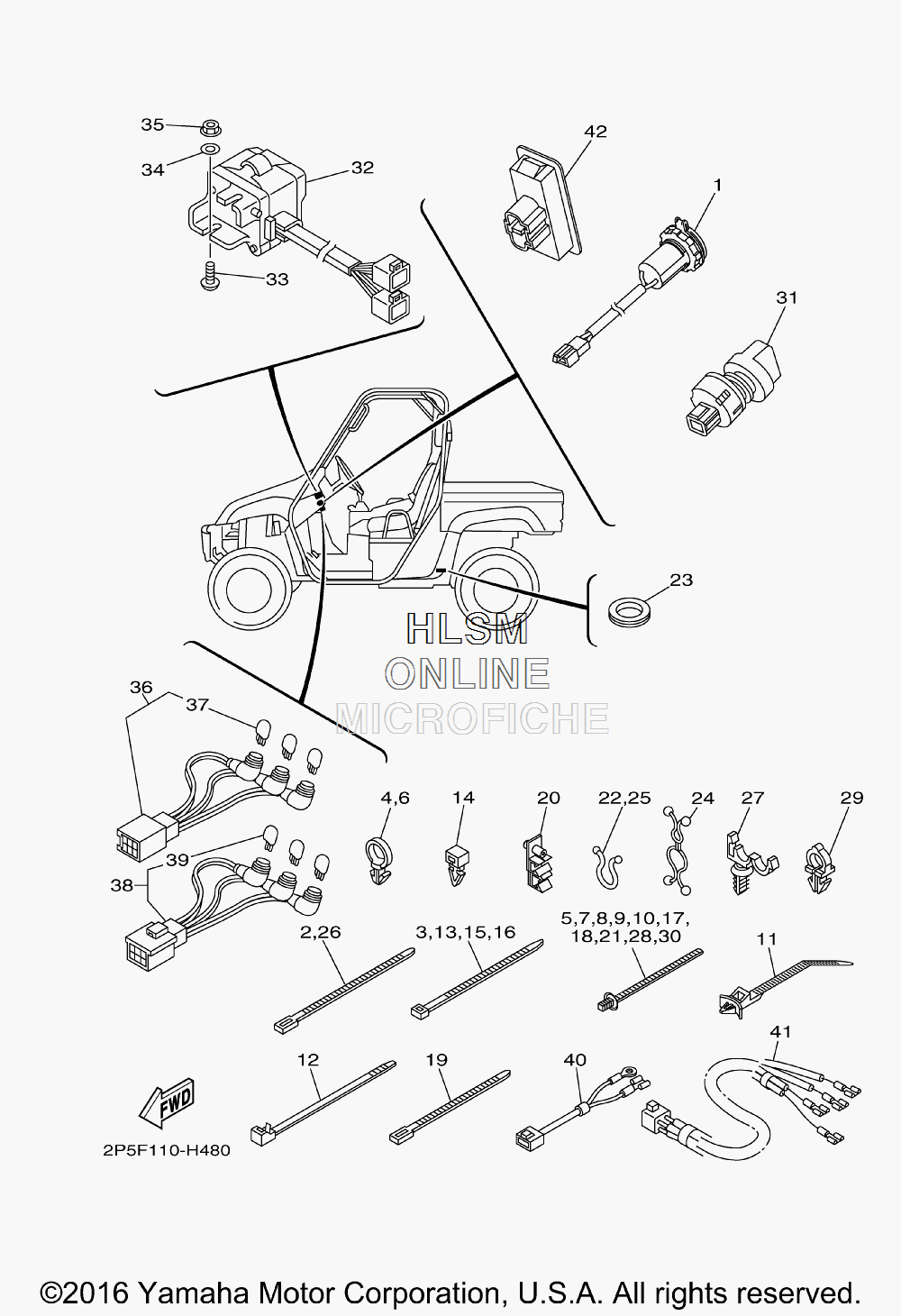

ELECTRICAL 2 для Yamaha RHINO 450 (2P5G) [YXR45FYR] - 2009 года выпуска
-
№АртикулНазвание
-
13B4-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
290464-40825-00 CLAMPCLAMP
-
390464-48800-00 CLAMPCLAMP
-
490464-19815-00 CLAMPCLAMP
-
590464-20005-00 CLAMPCLAMP
-
690464-19815-00 CLAMPCLAMP
-
790464-20005-00 CLAMPCLAMP
-
890464-20005-00 CLAMPCLAMP
-
990464-20005-00 CLAMPCLAMP
-
1090464-20005-00 CLAMPCLAMP
-
1190464-38800-00 CLAMPCLAMP
-
1290464-51800-00 CLAMPCLAMP
-
1390464-48800-00 CLAMPCLAMP
-
145UG-F2465-00-00 HOLDERHOLDER
-
1590464-48800-00 CLAMPCLAMP
-
1690464-48800-00 CLAMPCLAMP
-
1790464-20005-00 CLAMPCLAMP
-
1890464-20005-00 CLAMPCLAMP
-
1990464-31827-00 CLAMPCLAMP
-
205UG-F481H-00-00 CLAMPCLAMP
-
2190464-20005-00 CLAMPCLAMP
-
2290464-20804-00 CLAMPCLAMP
-
2390480-25856-00 GROMMETGROMMET
-
2490464-29179-00 CLAMPCLAMP
-
2590464-20804-00 CLAMPCLAMP
-
2690464-40825-00 CLAMPCLAMP
-
2790464-12830-00 CLAMPCLAMP
-
2890464-20005-00 CLAMPCLAMP
-
2990464-10833-00 CLAMPCLAMP
-
3090464-20005-00 CLAMPCLAMP
-
315UG-H2526-00-00 SWITCH, LAMPSWITCH, LAMP
-
325UG-83976-20-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
3390149-05299-00 SCREWSCREW
-
3490201-05029-00 WASHER, PLATEWASHER, PLATE
-
3595702-05300-00 NUT, NYLONNUT, NYLON
-
365UG-83530-10-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
375GH-83516-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
385UG-83530-01-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
395GH-83516-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
405KM-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
415ND-82541-01-00 WIRE, LEADWIRE, LEAD
-
425B4-H3530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
