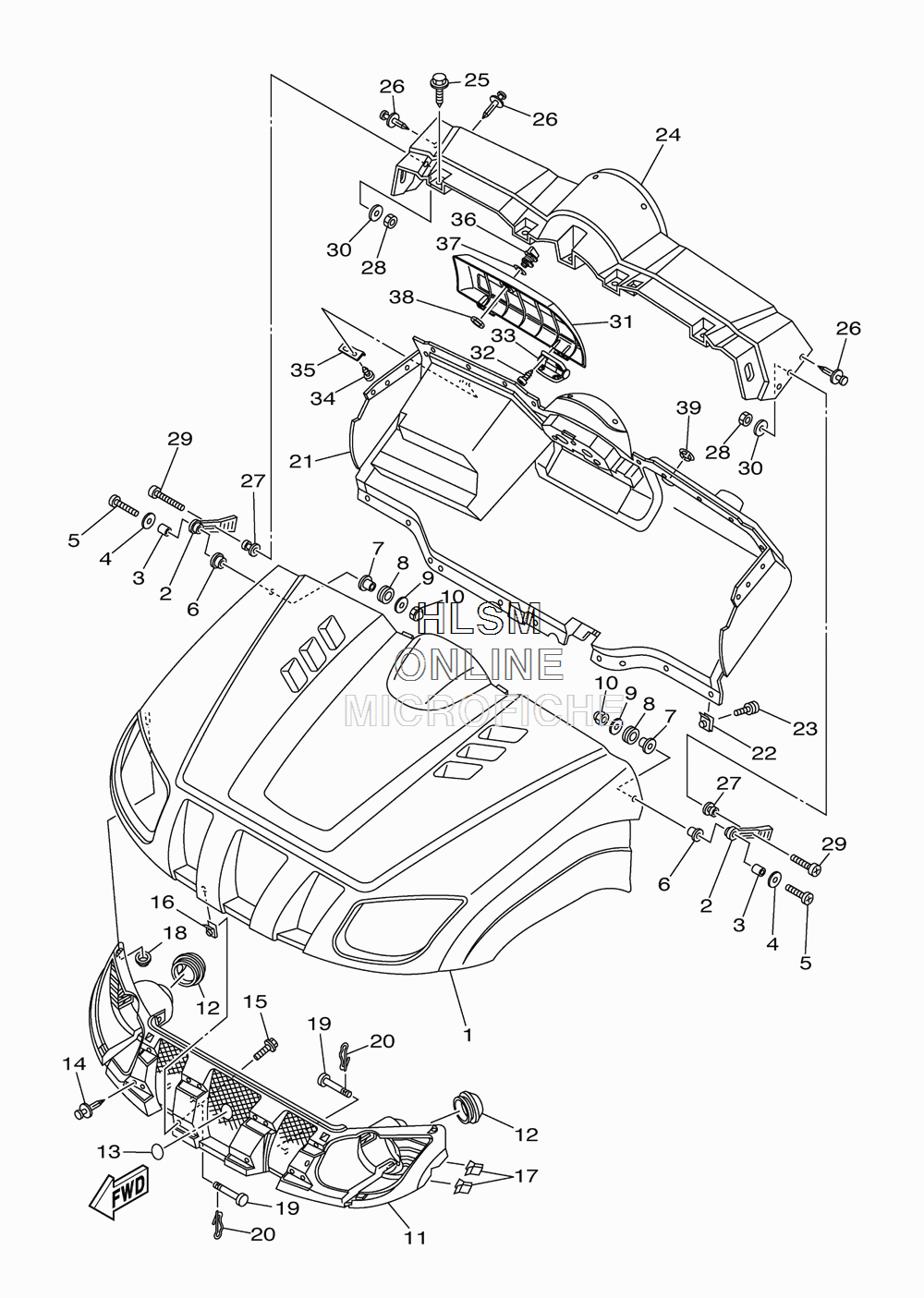

FENDER - FRONT для Yamaha RHINO HUNTER EDITION - 2013 года выпуска
-
№АртикулНазвание
-
15UG-F1510-M0-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
28V0-77171-00-00 BODY, LATCH 1BODY, LATCH 1
-
390387-06241-00 COLLARCOLLAR
-
490201-06078-00 WASHER, PLATEWASHER, PLATE
-
598907-06035-00 SCREW, BINDSCREW, BIND
-
690387-062M9-00 COLLARCOLLAR
-
790387-077M3-00 COLLARCOLLAR
-
890480-15235-00 GROMMETGROMMET
-
990201-06078-00 WASHER, PLATEWASHER, PLATE
-
1095302-06800-00 NUT, CROWNNUT, CROWN
-
115UG-F8309-01-00 GRILLE, FRONTGRILLE, FRONT
-
125GH-28349-00-00 CAPCAP
-
135FU-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
1490269-06804-00 RIVETRIVET
-
1590119-05023-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690183-050A0-00 NUT, SPRINGNUT, SPRING
-
175UG-F3447-00-00 CLIPCLIP
-
1890183-08800-00 NUT, SPRINGNUT, SPRING
-
1990240-13802-00 PIN, CLEVISPIN, CLEVIS
-
2090468-16191-00 CLIPCLIP
-
215UG-F3391-03-00 PANEL, FRONTPANEL, FRONT
-
2290183-051A1-00 NUT, SPRINGNUT, SPRING
-
2390119-05023-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
245UG-F3312-M0-00 PANEL, OUTER 2PANEL, OUTER 2
-
2590119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690269-06800-00 RIVETRIVET
-
278M6-77175-00-00 HOLDER, LATCHHOLDER, LATCH
-
2895702-06300-00 NUT, NYLONNUT, NYLON
-
2998907-06035-00 SCREW, BINDSCREW, BIND
-
3090201-06081-00 WASHER, PLATEWASHER, PLATE
-
315UG-K7736-00-00 LID, GLOVE BOXLID, GLOVE BOX
-
3290164-04800-00 SCREW, TAPPING (GLOVE BOX)SCREW, TAPPING (GLOVE BOX)
-
335UG-F1797-00-00 HINGE (GLOVE BOX)HINGE (GLOVE BOX)
-
3490164-05800-00 SCREW, TAPPING (GLOVE BOX)SCREW, TAPPING (GLOVE BOX)
-
355UG-F139T-10-00 BRACKET, COVER (GLOVE BOX)BRACKET, COVER (GLOVE BOX)
-
365UG-F16A0-00-00 LOCK ASSY (GLOVE BOX)LOCK ASSY (GLOVE BOX)
-
375UG-F3139-00-00 GASKET (GLOVE BOX)GASKET (GLOVE BOX)
-
385UG-F1494-00-00 NUT (FOR LOCK)NUT (FOR LOCK)
-
395B4-F2417-00-00 PLUGPLUG
