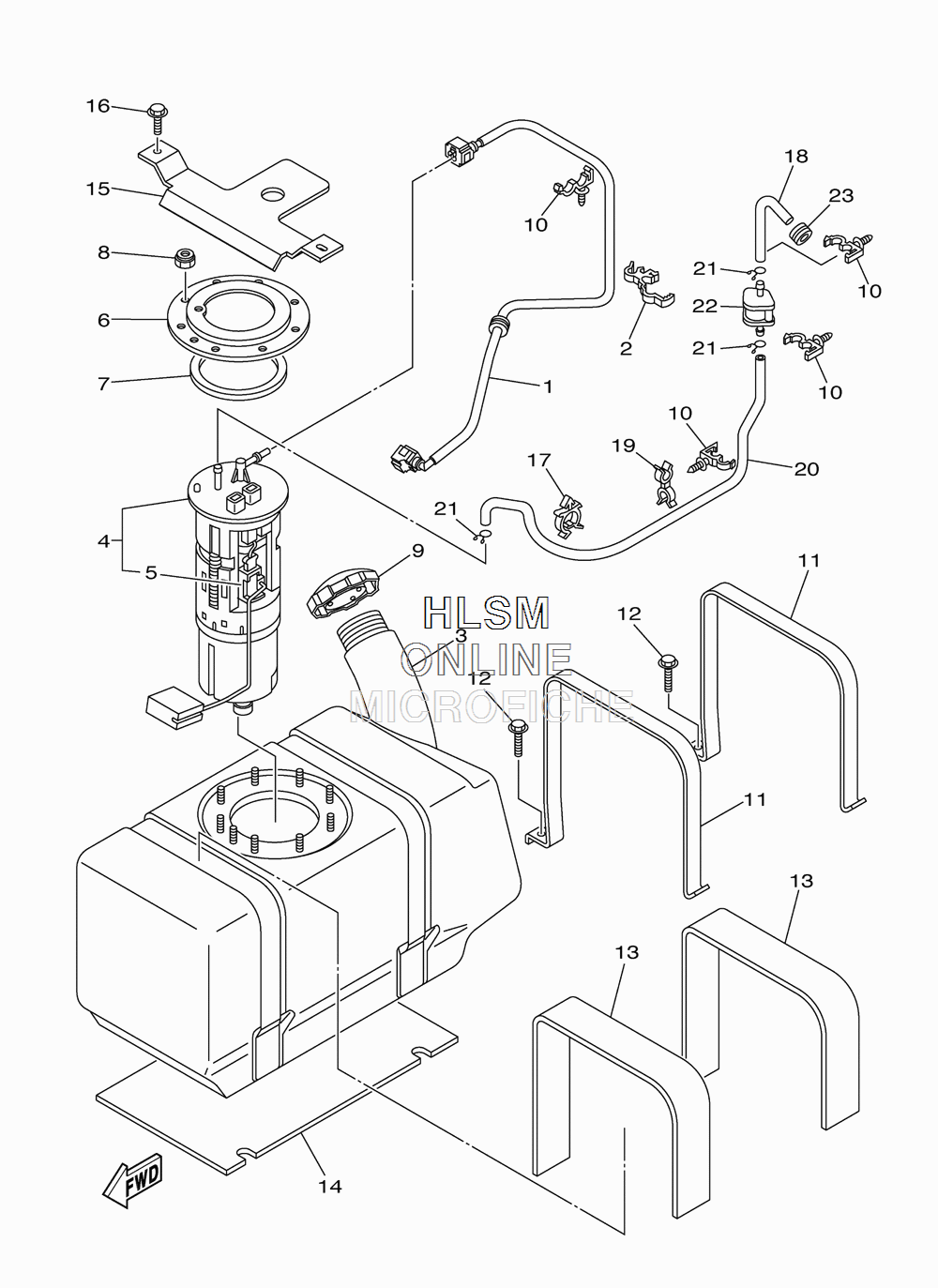

FUEL TANK для Yamaha RHINO HUNTER EDITION - 2013 года выпуска
-
№АртикулНазвание
-
15B4-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
290464-12012-00 CLAMPCLAMP
-
35B4-F4111-00-00 TANK, FUELTANK, FUEL
-
45B4-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
55B4-85701-00-00 ...SENDER ASSY...SENDER ASSY
-
65B4-U7773-00-00 RINGRING
-
7F1B-67747-00-00 PACKING, SEALPACKING, SEAL
-
895602-06100-00 NUT, UNUT, U
-
92P5-24610-00-00 CAP ASSYCAP ASSY
-
1090464-12830-00 CLAMP (D:12MM)CLAMP (D:12MM)
-
115B4-F4157-00-00 STAY, FUEL TANK 1STAY, FUEL TANK 1
-
1290105-08879-00 BOLT, FLANGEBOLT, FLANGE
-
135UG-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
145UG-F414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
155B4-F4145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
1690105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
1790464-25826-00 CLAMPCLAMP
-
185B4-F4312-00-00 PIPE 2PIPE 2
-
1990464-13103-00 CLAMPCLAMP
-
205B4-F4314-00-00 PIPE 4PIPE 4
-
2190467-100A1-00 CLIPCLIP
-
223B4-24380-10-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
2390480-15058-00 GROMMETGROMMET
