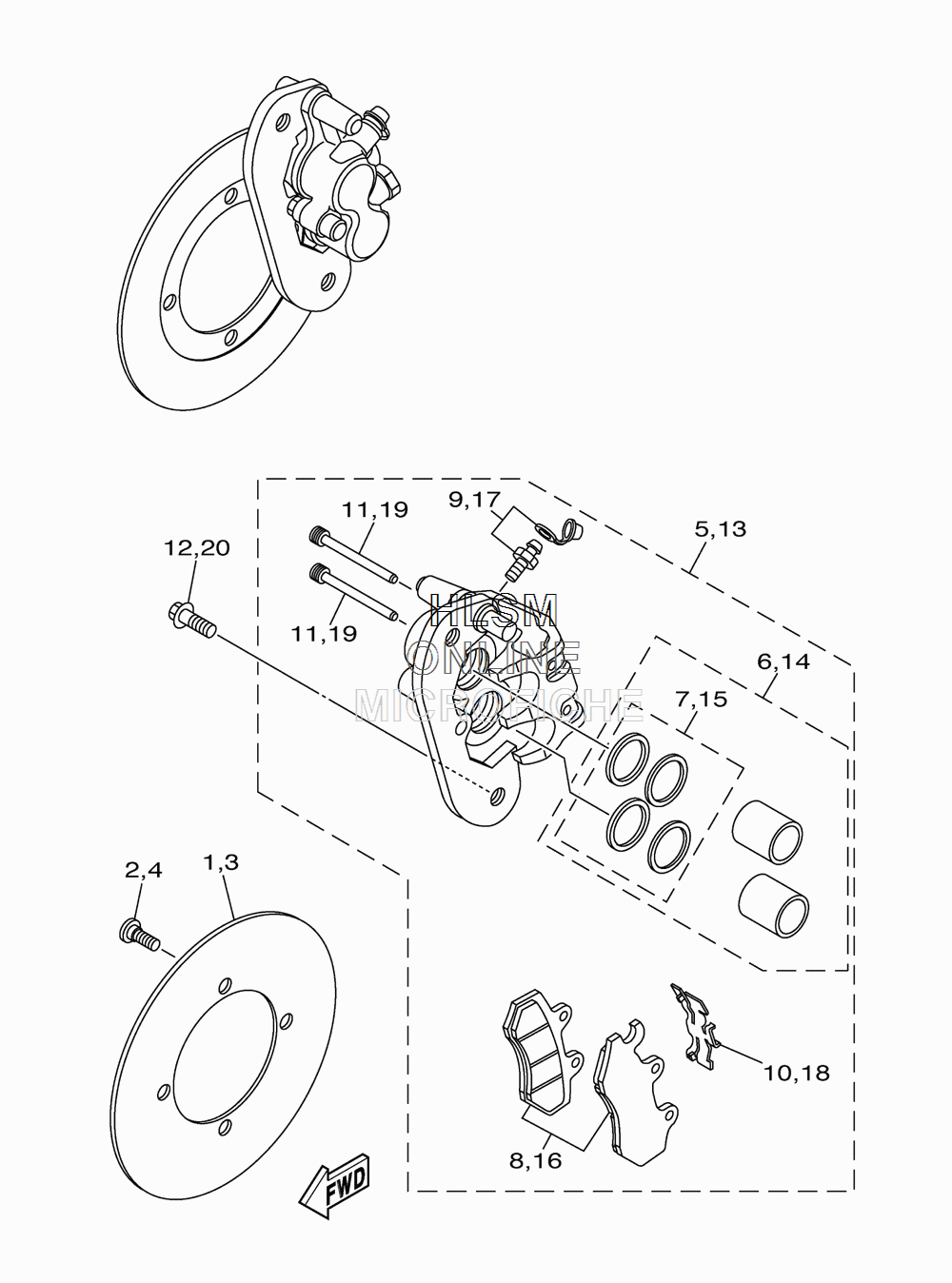

BRAKE - REAR CALIPER для Yamaha RHINO SPORT EDITION - 2013 года выпуска
-
№АртикулНазвание
-
15B4-F5831-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290109-08082-00 BOLTBOLT
-
35B4-F5831-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
490109-08082-00 BOLTBOLT
-
55B4-2580V-00-00 CALIPER ASSY, REAR 1 (LEFT HAND)CALIPER ASSY, REAR 1 (LEFT HAND)
-
65B4-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73LC-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
85B4-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
91UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
103LD-25934-01-00 ...SPRING, PAD...SPRING, PAD
-
113LD-25924-00-00 ...PIN, PAD...PIN, PAD
-
1290105-10265-00 BOLT, FLANGEBOLT, FLANGE
-
135B4-2580W-00-00 CALIPER ASSY, REAR 2 (RIGHT HAND)CALIPER ASSY, REAR 2 (RIGHT HAND)
-
145B4-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
153LC-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
165B4-W0045-10-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
171UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
183LD-25934-01-00 ...SPRING, PAD...SPRING, PAD
-
193LD-25924-00-00 ...PIN, PAD...PIN, PAD
-
2090105-10265-00 BOLT, FLANGEBOLT, FLANGE
