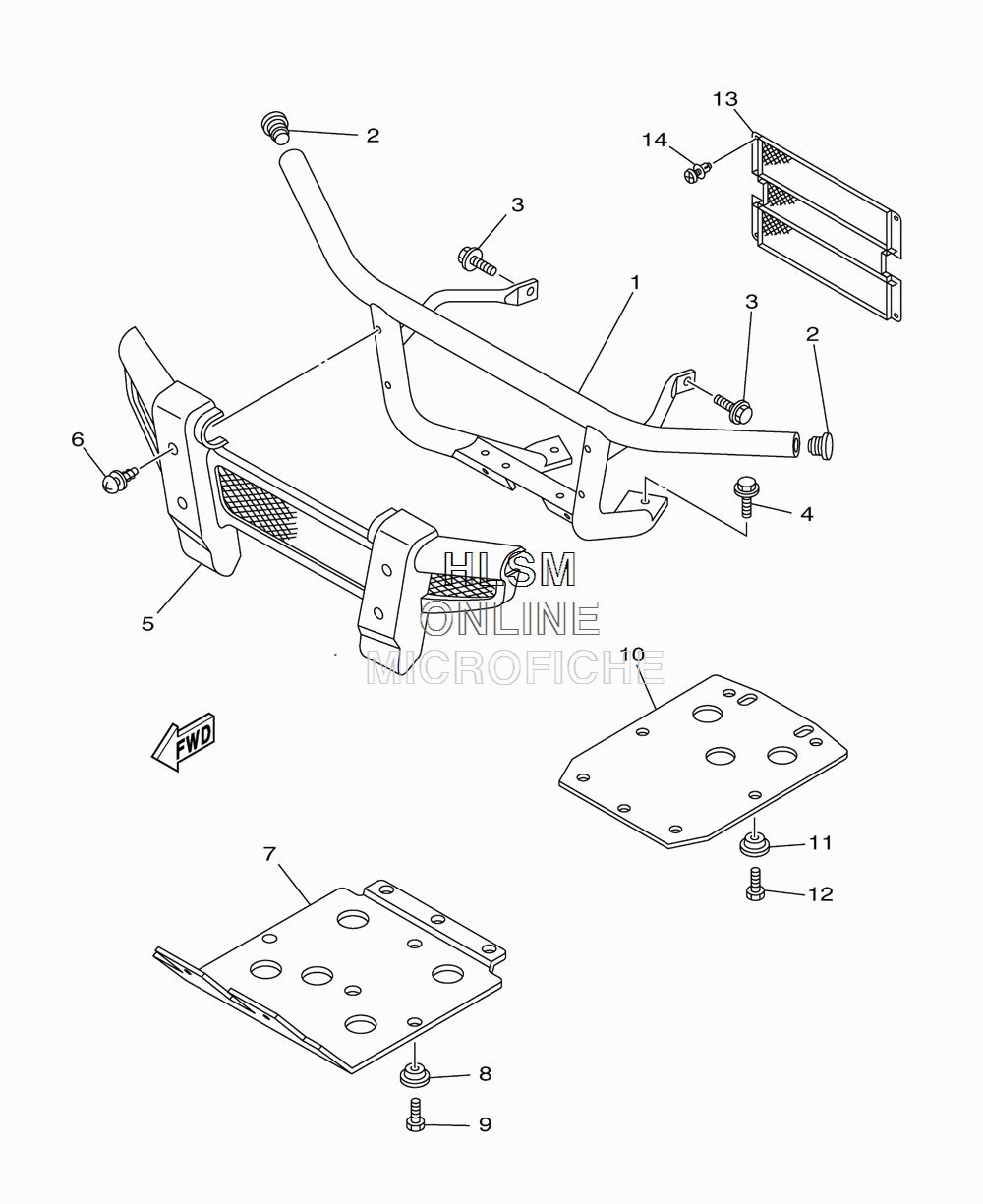

RACK AND BUMPER для Yamaha RHINO SPORT EDITION - 2013 года выпуска
-
№АртикулНазвание
-
11RB-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
25UG-F2417-00-00 PLUGPLUG
-
395812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
495812-12025-00 BOLT, FLANGEBOLT, FLANGE
-
55UG-F842A-00-00 COVER 5COVER 5
-
690119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
72P5-F8385-01-00 COVER, UNDERCOVER, UNDER
-
85UG-F8329-01-00 SPACERSPACER
-
990105-06832-00 BOLT, FLANGE (SELF TAPPING)BOLT, FLANGE (SELF TAPPING)
-
105UG-F8395-01-00 COVER, UNDER 2COVER, UNDER 2
-
115UG-F8329-01-00 SPACERSPACER
-
1290105-06832-00 BOLT, FLANGE (SELF TAPPING)BOLT, FLANGE (SELF TAPPING)
-
135UG-F2858-00-00 LOUVER, 1LOUVER, 1
-
145UG-F3483-00-00 RIVETRIVET
