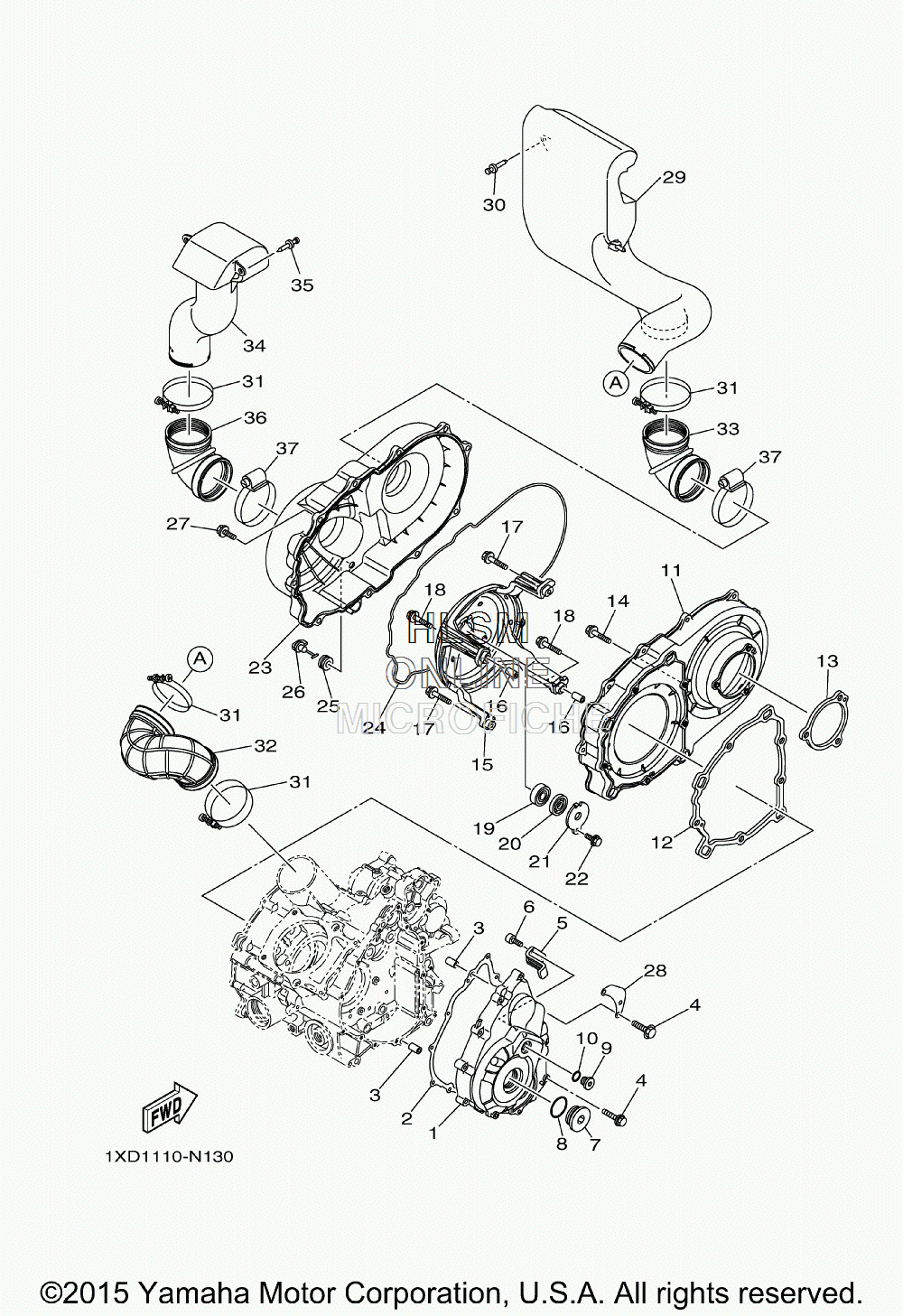

CRANKCASE COVER для Yamaha VIKING VI 700 HUNTER - 2015 года выпуска
-
№АртикулНазвание
-
13B4-15411-10-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
23B4-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-10116-00 PIN, DOWELPIN, DOWEL
-
495022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
53B4-15113-00-00 PLATEPLATE
-
691312-05014-00 BOLTBOLT
-
790340-36004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-357A3-00 O-RINGO-RING
-
990340-14016-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1093210-14369-00 O-RINGO-RING
-
111XD-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
123B4-15453-00-00 GASKETGASKET
-
133B4-15315-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
1495822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
151XD-15442-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1699530-10116-00 PIN, DOWELPIN, DOWEL
-
1795822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1895822-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1993306-20103-00 BEARINGBEARING
-
2093101-12168-00 OIL SEALOIL SEAL
-
214WV-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2295022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
231XD-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
243B4-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
2590480-13018-00 GROMMETGROMMET
-
265KM-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
2795822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
281XD-1541A-00-00 STAY, CRANKCASE COVER 1STAY, CRANKCASE COVER 1
-
291XD-E5477-00-00 DUCT, AIRDUCT, AIR
-
3090269-07803-00 RIVETRIVET
-
3190460-85135-00 CLAMP, HOSECLAMP, HOSE
-
321XD-E5474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
331XD-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
341XD-E5473-00-00 DUCT, AIRDUCT, AIR
-
3590269-07803-00 RIVETRIVET
-
361XD-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
3790450-94001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
