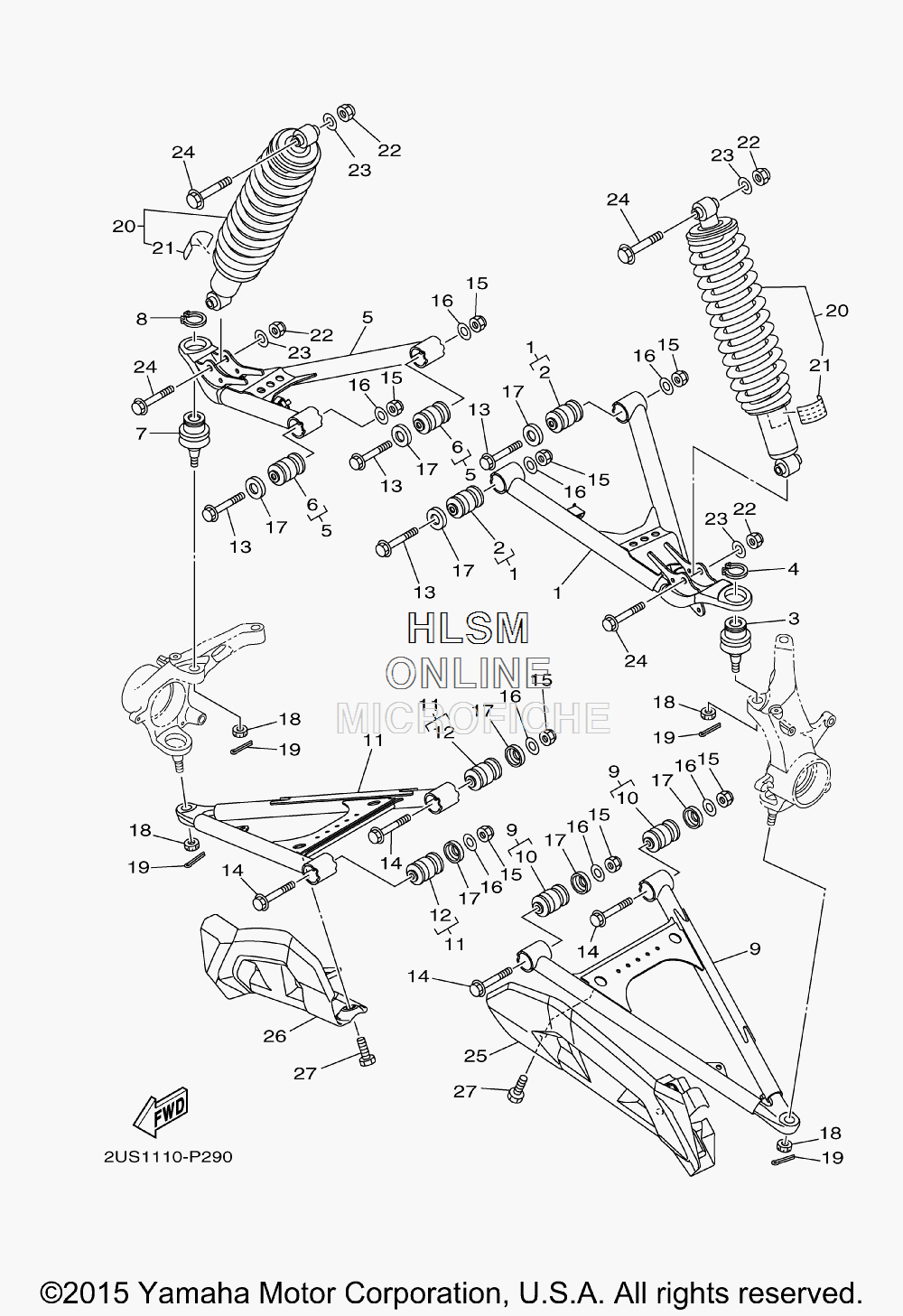

SUSPENSION - FRONT WHEEL для Yamaha VIKING VI 700 HUNTER - 2015 года выпуска
-
№АртикулНазвание
-
11XD-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
21HP-F3526-00-00 ...BUSH...BUSH
-
31XD-23579-00-00 BALL JOINT 2BALL JOINT 2
-
499009-32400-00 CIRCLIPCIRCLIP
-
51XD-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
61HP-F3526-00-00 ...BUSH...BUSH
-
71XD-23579-00-00 BALL JOINT 2BALL JOINT 2
-
899009-32400-00 CIRCLIPCIRCLIP
-
92PG-F3570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
101HP-F3526-00-00 ...BUSH...BUSH
-
112PG-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
121HP-F3526-00-00 ...BUSH...BUSH
-
1390105-10272-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690201-10035-00 WASHER, PLATEWASHER, PLATE
-
175KM-22149-10-00 WASHERWASHER
-
1890171-12001-00 NUT, CASTLENUT, CASTLE
-
1991402-25020-00 PIN, COTTERPIN, COTTER
-
202PG-F3390-00-00 SHOCK ABSORBER ASSY 2SHOCK ABSORBER ASSY 2
-
211HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
2290185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390201-10035-00 WASHER, PLATEWASHER, PLATE
-
2490105-10199-00 BOLT, FLANGEBOLT, FLANGE
-
251XD-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
261XD-F3133-00-00 COVER, LOWER 2COVER, LOWER 2
-
2790109-06220-00 BOLTBOLT
