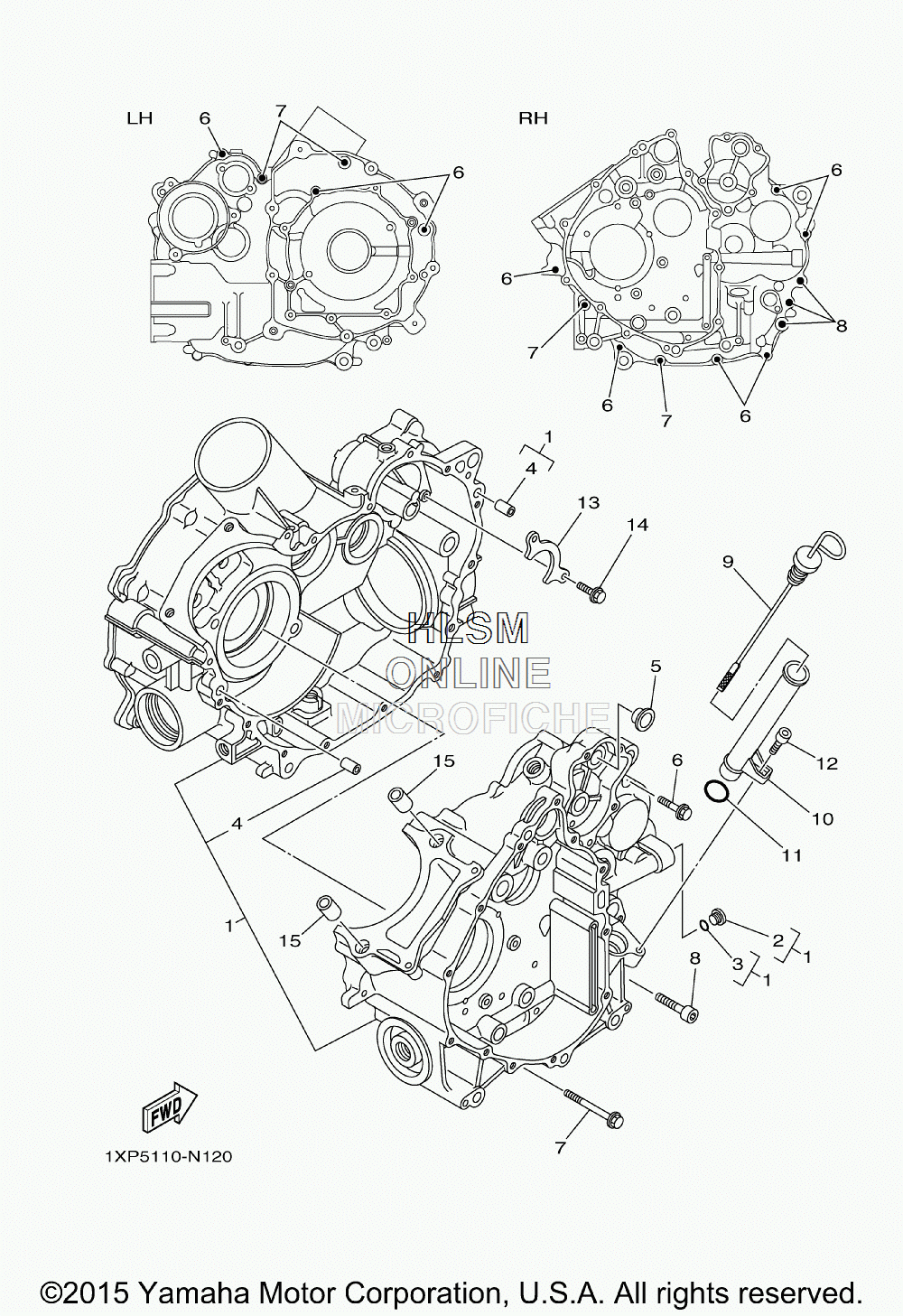

CRANKCASE для Yamaha VIKING VI [YXC70VDXGR] - 2016 года выпуска
-
№АртикулНазвание
-
13B4-15100-28-00 CRANKCASE ASSYCRANKCASE ASSY
-
236Y-15189-00-00 ...PLUG...PLUG
-
393210-16325-00 ...O-RING...O-RING
-
499530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
53B4-18581-00-00 SPACER, CAM SHAFTSPACER, CAM SHAFT
-
695022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
795022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
891312-08040-00 BOLTBOLT
-
95B4-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
105B4-15112-00-00 PIPE, OILPIPE, OIL
-
1193210-21631-00 O-RINGO-RING
-
1291312-06012-00 BOLT, HEXT. SOCKET HEADBOLT, HEXT. SOCKET HEAD
-
133B4-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1490105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
1599530-14016-00 PIN, DOWELPIN, DOWEL
