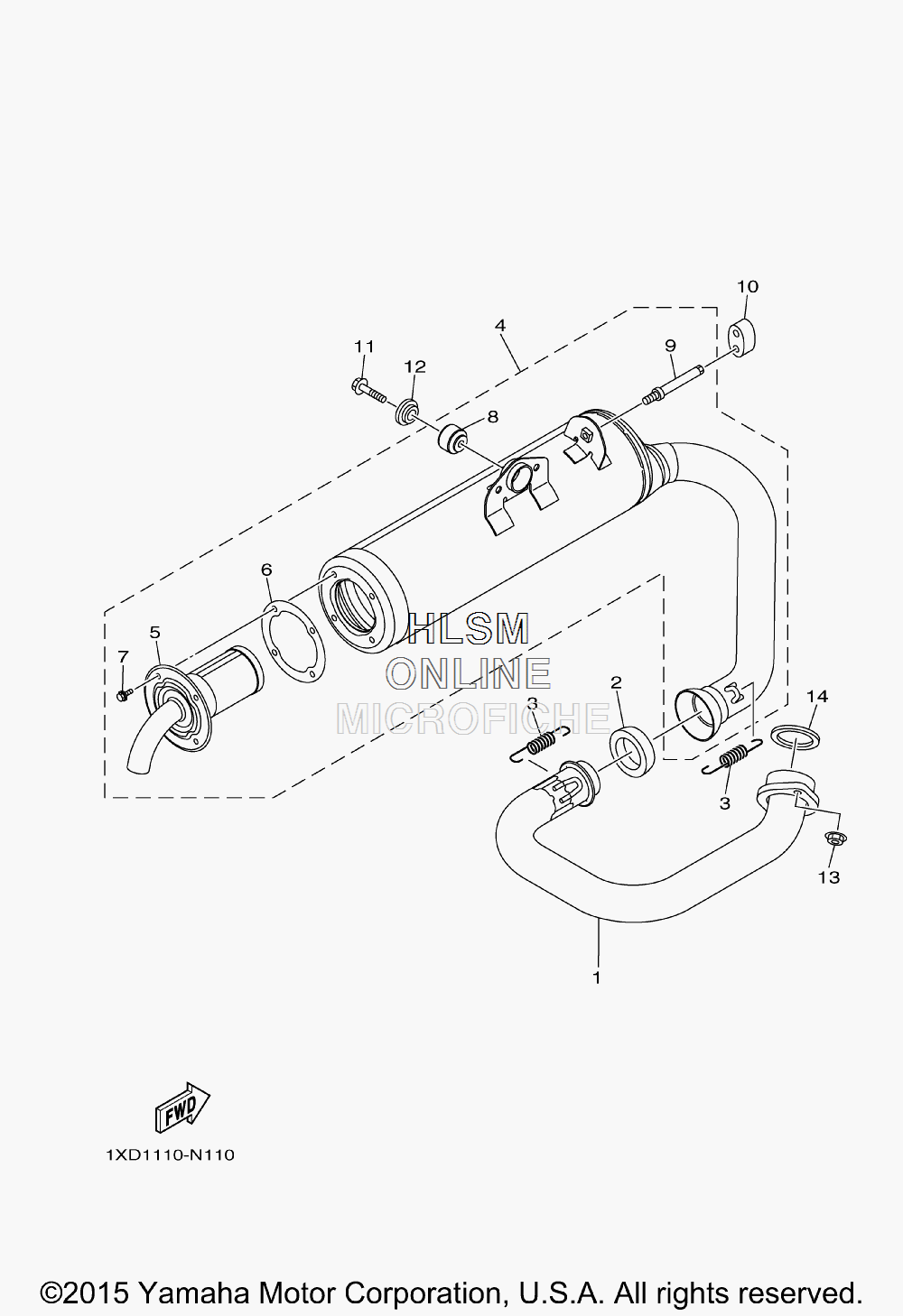

EXHAUST для Yamaha VIKING VI [YXC70VDXGR] - 2016 года выпуска
-
№АртикулНазвание
-
11XD-E4611-01-00 PIPE, EXHAUST LPIPE, EXHAUST L
-
21XD-E4714-01-00 GASKET, MUFFLERGASKET, MUFFLER
-
390506-26012-00 SPRING, TENSIONSPRING, TENSION
-
41XD-E4710-01-00 MUFFLER ASSY LMUFFLER ASSY L
-
52BG-E4780-00-00 ...SPARK ARRESTER ASSY...SPARK ARRESTER ASSY
-
62BG-E4755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
795022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
81HP-F7414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
91XD-E4745-00-00 ...SHAFT...SHAFT
-
101XD-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
1195812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
123B4-14759-01-00 WASHERWASHER
-
1395702-08500-00 NUT, FLANGENUT, FLANGE
-
143EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
