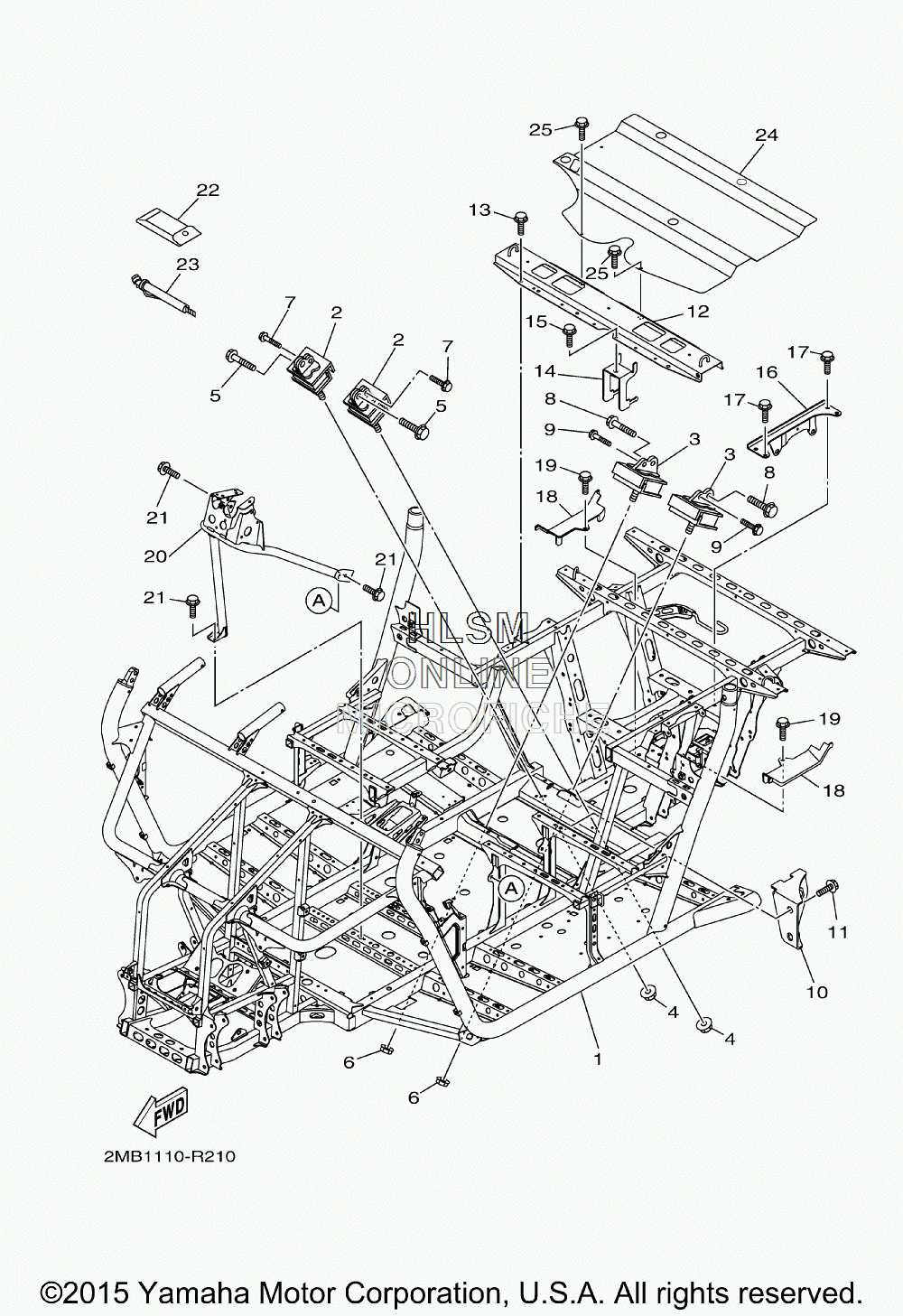

FRAME для Yamaha WOLVERINE R-SPEC EPS HUNTER [YXE70WPHGH] - 2016 года выпуска
-
№АртикулНазвание
-
12MB-F1110-00-00 FRAME COMP.FRAME COMP.
-
22PG-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
32PG-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
52MB-E3574-00-00 BOLT 2BOLT 2
-
690185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
72MB-E5481-A0-00 BOLT 1BOLT 1
-
890105-10314-00 BOLT, FLANGEBOLT, FLANGE
-
990105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
102MB-F287G-00-00 BRACKET, LOCKBRACKET, LOCK
-
1195812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
122MB-F117A-00-00 STAYSTAY
-
1395812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
142MB-F1159-00-00 BRACKETBRACKET
-
1595812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
162MB-F831T-00-00 STAY, SUPPORT 1STAY, SUPPORT 1
-
1795812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
182MB-F198J-00-00 COVER 3COVER 3
-
1990119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
202MB-F1986-00-00 REINFORCEMENT, FRAME 1REINFORCEMENT, FRAME 1
-
2190105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
225B4-F8100-00-00 TOOL KITTOOL KIT
-
231XD-F811A-00-00 GAUGE, AIRGAUGE, AIR
-
242MB-F2898-00-00 INSULATOR, HEATINSULATOR, HEAT
-
2595812-08016-00 BOLT, FLANGEBOLT, FLANGE
