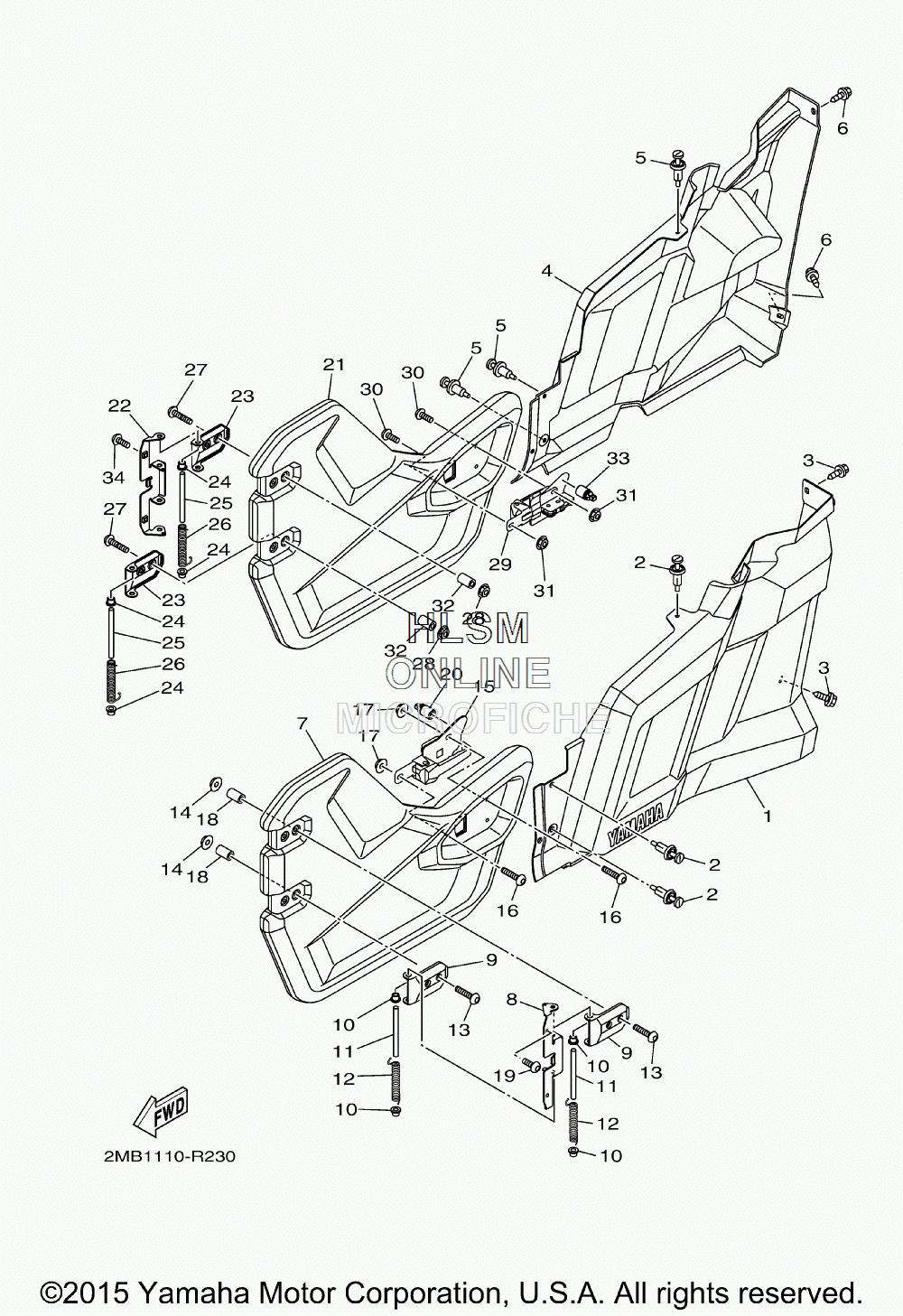

SIDE COVER для Yamaha WOLVERINE R-SPEC EPS HUNTER [YXE70WPHGH] - 2016 года выпуска
-
№АртикулНазвание
-
12MB-F1721-00-00 COVER, SIDE 2COVER, SIDE 2
-
290269-07803-00 RIVETRIVET
-
390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
42MB-F1731-00-00 COVER, SIDE 3COVER, SIDE 3
-
590269-07803-00 RIVETRIVET
-
690119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
71XD-K8557-10-00 PNL., DOOR FR. LHPNL., DOOR FR. LH
-
81XD-F197K-00-00 HINGE 2HINGE 2
-
91XD-F1797-00-00 HINGEHINGE
-
101XD-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
111XD-F146A-00-00 PIN 1PIN 1
-
121XD-F463G-00-00 SPRG., HINGESPRG., HINGE
-
1390109-06897-00 BOLTBOLT
-
1495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
152MB-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
1690111-06086-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890387-06304-00 COLLARCOLLAR
-
195B4-F1722-00-00 BOLT 2BOLT 2
-
202MB-F8378-00-00 PADPAD
-
211XD-K8557-10-00 PNL., DOOR FR. LHPNL., DOOR FR. LH
-
221XD-F197K-00-00 HINGE 2HINGE 2
-
231XD-F1797-00-00 HINGEHINGE
-
241XD-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
251XD-F146A-00-00 PIN 1PIN 1
-
261XD-F463G-00-00 SPRG., HINGESPRG., HINGE
-
2790109-06897-00 BOLTBOLT
-
2895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
292MB-K7172-00-00 BODY, LATCH 2BODY, LATCH 2
-
3090111-06086-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
3195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290387-06304-00 COLLARCOLLAR
-
332MB-F8378-00-00 PADPAD
-
345B4-F1722-00-00 BOLT 2BOLT 2
