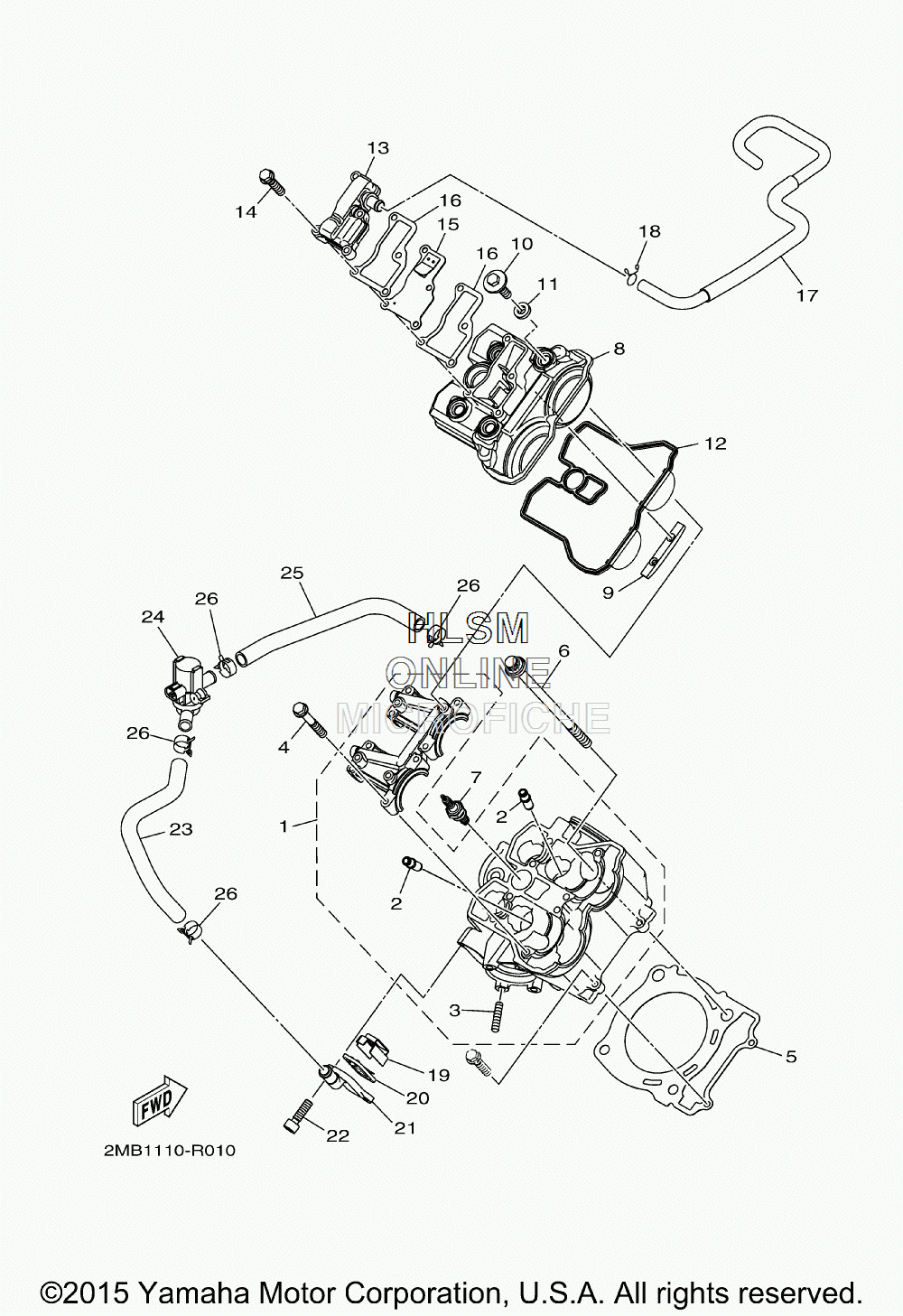

CYLINDER HEAD для Yamaha WOLVERINE R-SPEC EPS [YXE70WPXGG] - 2016 года выпуска
-
№АртикулНазвание
-
12MB-E1102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
22MB-E1133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
32MB-E1179-00-00 ...BOLT, STUD...BOLT, STUD
-
42MB-E5481-80-00 BOLT 1BOLT 1
-
52MB-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
62MB-E1361-00-00 BOLT, CYLINDER HOLDING 1BOLT, CYLINDER HOLDING 1
-
7CPR-7EA90-00-00 PLUG, SPARK (NGK CPR7EA)PLUG, SPARK (NGK CPR7EA)
-
82MB-E1191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
92MB-E2241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
102MB-E4446-00-00 BOLTBOLT
-
112MB-E111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
122MB-E1193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
132MB-E1160-00-00 BREATHER ASSYBREATHER ASSY
-
142MB-E5481-20-00 BOLT 1BOLT 1
-
152MB-E3610-00-00 REED VALVE ASSYREED VALVE ASSY
-
162MB-E131B-00-00 GASKET, COVERGASKET, COVER
-
172MB-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1890467-140A4-00 CLIPCLIP
-
192MB-E482K-00-00 PLATEPLATE
-
202MB-E4890-00-00 REED VALVE ASSYREED VALVE ASSY
-
212MB-E4889-00-00 CAP, CASECAP, CASE
-
222MB-E6777-10-00 BOLTBOLT
-
231XD-E4881-00-00 HOSE, BEND 1HOSE, BEND 1
-
242MB-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
251XD-E4882-00-00 HOSE, BEND 2HOSE, BEND 2
-
2690467-17089-00 CLIPCLIP
